Fuses
9-26 Vehicle care and maintenance

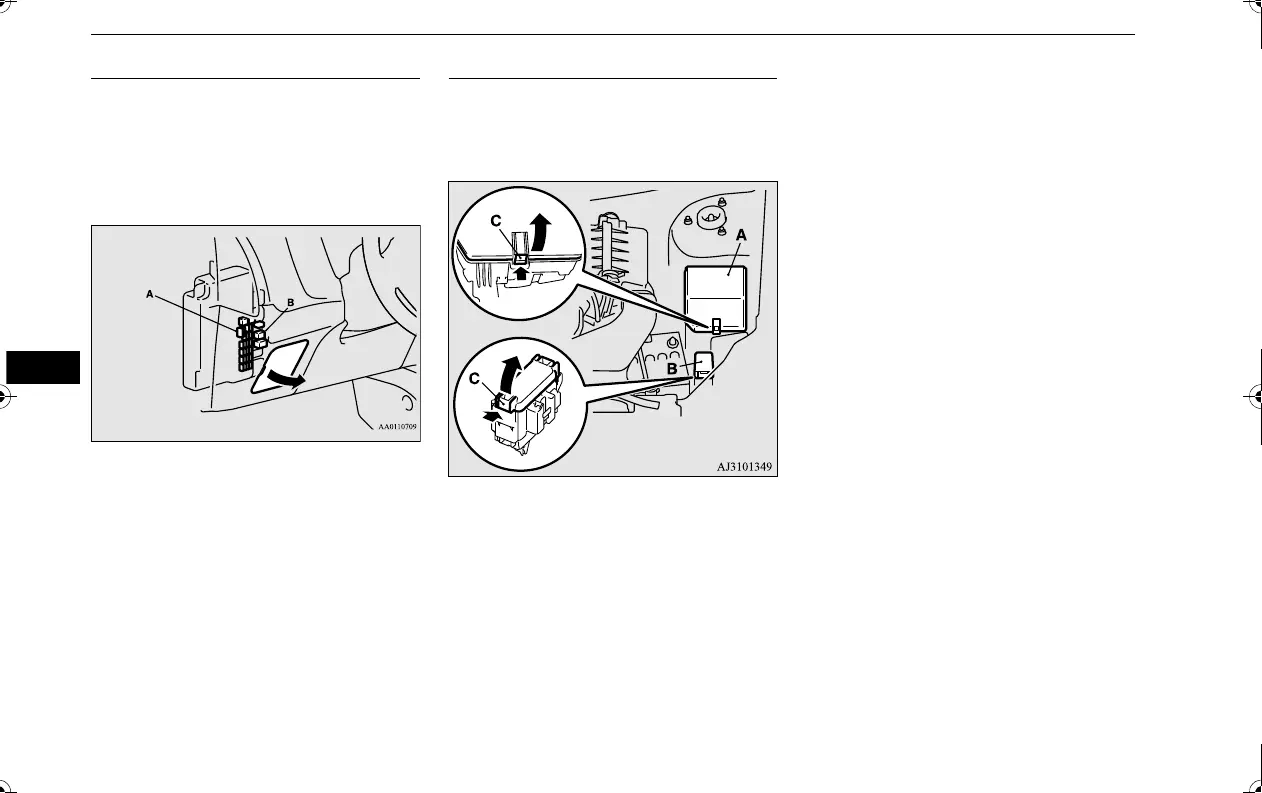

The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front
of the driver’s seat at the position shown in
the illustration.
Pull the fuse lid to remove it.
In the engine compartment, the fuse blocks
are located as shown in the illustration. While
pressing the tab (C), pull up the cover.
Passenger compartment
A- Main fuse block
B- Sub fuse block
Engine compartment
A- Main fuse block
B- Sub fuse block
