6
BASE UNIT AND EXTENSION CABLE
6.1 Base Unit
6.1.2 Part Names
6 - 9
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES

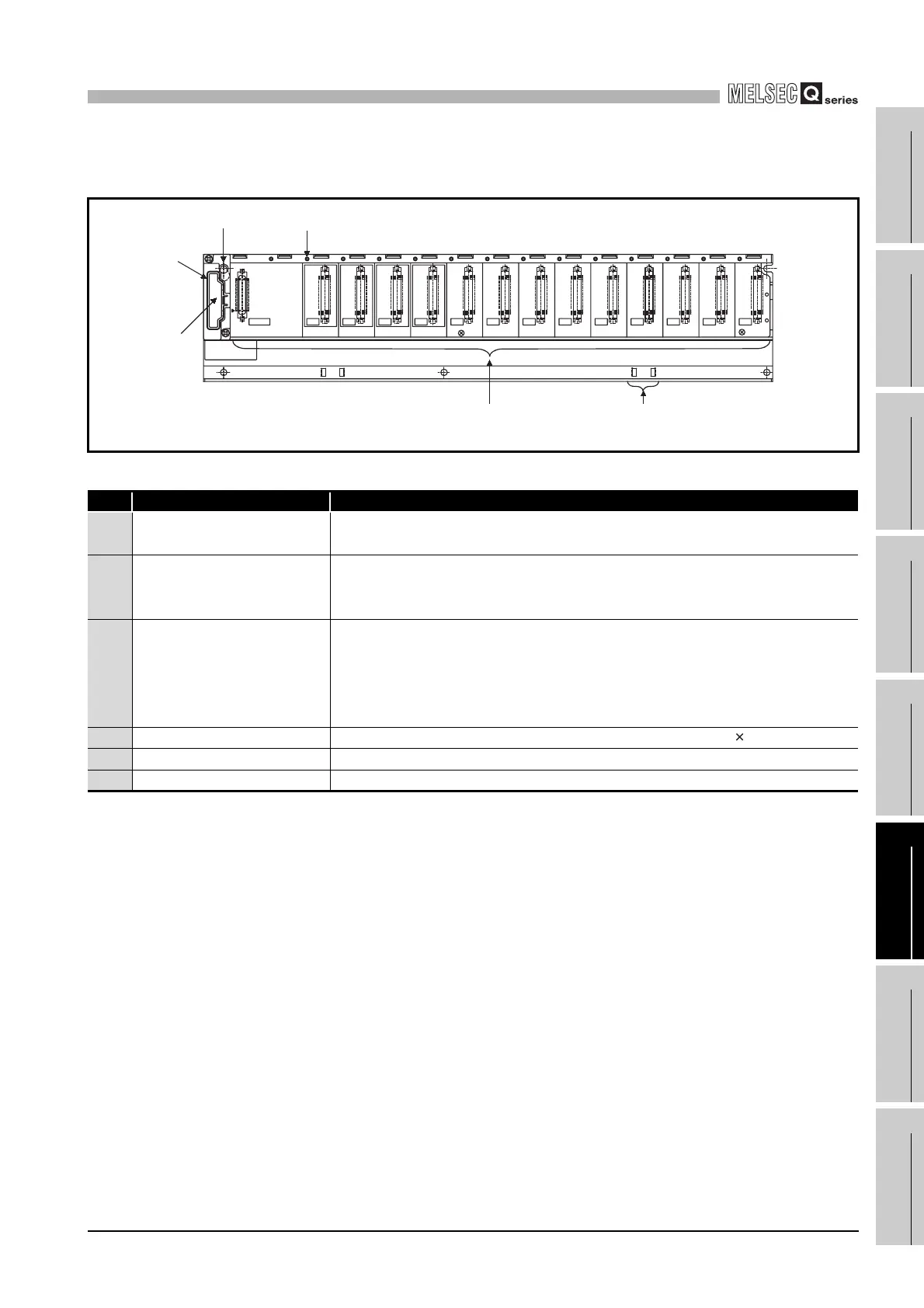

(4) Multiple CPU high speed main base unit (Q38DB, Q312DB)
Diagram 6.4 Multiple CPU high speed main base unit (Q38DB, Q312DB)
Table6.12 Part Names
No. Name Application
1) Extension cable connector
Connector for connecting an extension cable (for signal communications with the
extension base unit)
2) Base cover
Protective cover of extension cable connector. Before an extension cable is
connected, the area of the base cover surrounded by the groove under the word
"OUT" on the base cover must be removed with a tool such as nippers.
3) Module connector
Connector for installing the Q series power supply module, CPU module, I/O
modules, and intelligent function module.
To the connectors located in the spare space where these modules are not installed,
attach the supplied connector cover or the blank cover module (QG60) to prevent
entry of dirt.
4) Module fixing screw hole
Screw hole for fixing the module to the base unit. Screw size: M3 12
5) Base mounting hole Hole for mounting this base unit onto the panel of the control panel (for M4 screw)
6) DIN rail adapter mounting hole Hole for mounting DIN rail adapter
OUT
FG
SG
5V
I/O11I/O10I/O9I/O8I/O7I/O6I/O5I/O4I/O3I/O2I/O1I/O0CPU
POWER
b1
a1
1)
2)
5)
4)
3)
6)
