12.8 Special Register List
12
TROUBLESHOOTING
*3: This applies to Universal model QCPUs except for the QnUDE(H) CPU.
*4: This applies to the following modules.
•Q02UCPU, Q03UDCPU, Q04UDHCPU, Q06UDHCPU that the first 5 digits of the serial No. is “10012” or higher.
•Q13UDHCPU, Q26UDHCPU, QnUDE(H)CPU

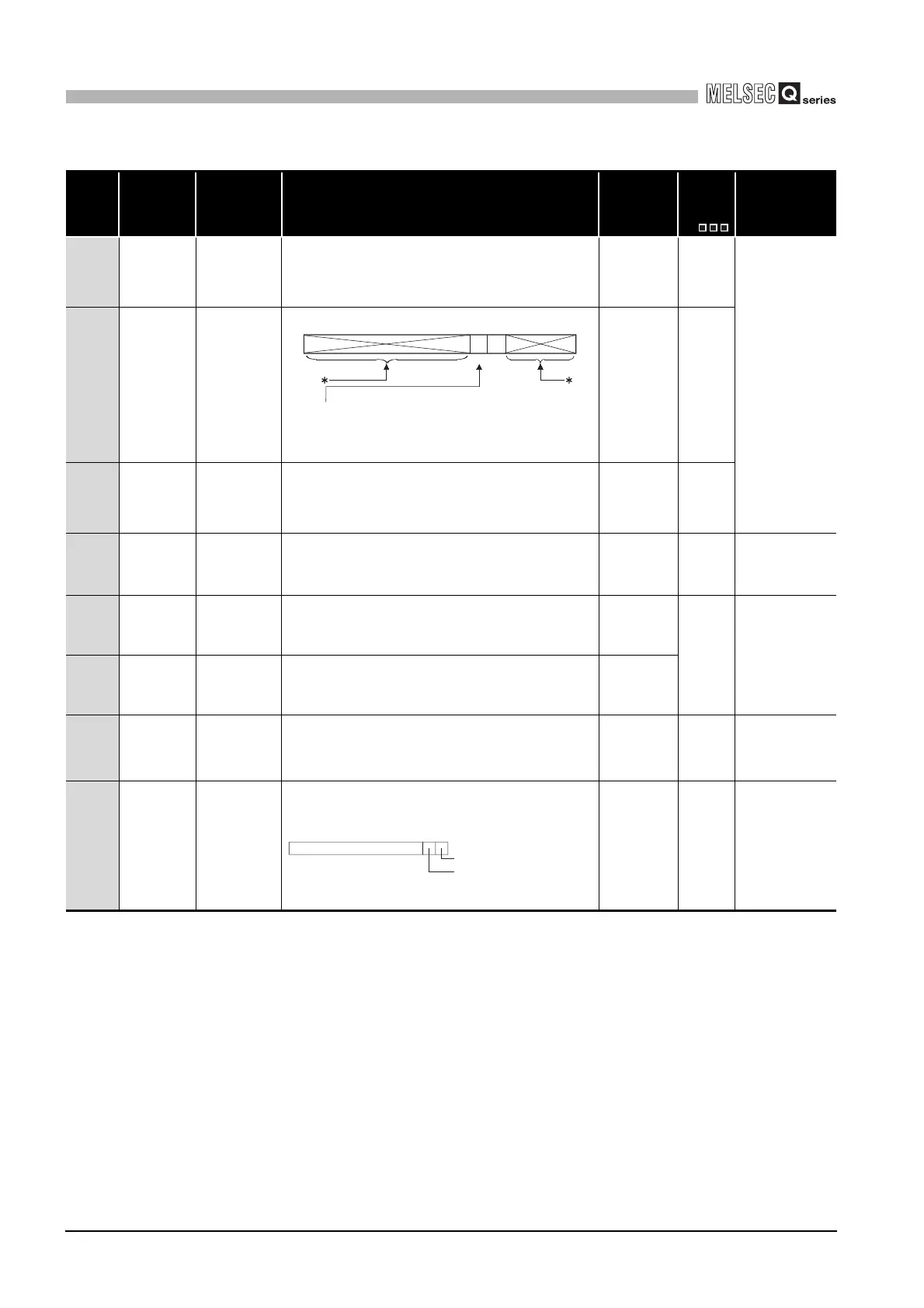

Table12.45 Special register
Number Name Meaning Explanation
Set by
(When Set)
Corres-
ponding
ACPU
D9
Corresponding
CPU
SD100
Transmission
speed storage
area
Stores the
transmission
speed specified in
the serial
communication
setting.
96 : 9.6kbps, 192 : 19.2kbps, 384 : 38.4kbps,
576 : 57.6kbps, 1152 : 115.2kbps
S (Power-ON or
reset)
New
Q00/Q01SD101
Communication
setting storage
area
Stores the
communication
setting specified in
the serial
communication
setting.
* : Since the data is used by the system, it is undefined.
S (Power-ON or
reset)
New
SD102
Transmission
wait time
storage area
Stores the
transmission wait
time specifed in
the serial
communication
setting.
0 : No waiting time
1 to FH : Waiting time (unit: 10ms)
Defaults to 0.
S (Power-ON or
reset)
New
SD105
CH1
transmission
speed setting
(RS-232)
Stores the preset
transmission
speed when GX
Developer is
used.
96 : 9600bps, 192 : 19.2kbps, 384 : 38.4kbps,
576 : 57.6kbps, 1152 : 115.2kbps
*: Other than RS-232 connection holds the data at RS-232 connection.
(When disconnected, the default value is 1152.)
SNew
Qn(H)
QnPH
QnPRH
QnU
*3
Rem
SD110
Data sending
result storage
area
Stores the data
sending result
when the serial
communication
function is used.
Stores the error code at the timeout sending data. S (Error)
New Q00/Q01
SD111
Data receiving
result storage
area
Stores the data
receiving result
when the serial
communication
function is used.
Stores the error code at the time of receiving data. S (Error)
SD118
Amount of
battery
consumption
Amount of battery
consumption
Displays the amount of battery consumption.Value range:
1 and 2 (Q02UCPU, Q03UDCPU, Q04UDHCPU, Q03UDECPU,
Q04UDEHCPU)
1 to 3 (Q06UDHCPU, Q06UDEHCPU)
1 to 4 (Q13UDHCPU, 26UDHCPU, Q13UDEHCPU, Q26UDEHCPU)
S (Status
change)
New
QnU
*4
SD119
Battery life-
prolonging
factor
Battery life-
prolonging factor
Stores the factor which makes the battery life-prolonging function valid.
When SD119 is other than 0, the battery life-prolonging function is valid.
S (Status
change)
New QnU
b0
to
b3b4b5b6
b15
to
Sumcheck presence
0: Absent
1: Present
0: Disabled
1: Enabled
Write during RUN setting
b0: CPU switch setting
0:No factor
1:Foctor
b1: Backup in execution by
latch data backup function
(to standard ROM)
b15
to
b2
b1
b0
