12.2.18 Flowchart for when boot operation cannot be performed from
memory card
The following shows the flowchart for when the boot operation of the CPU module cannot
be performed using the memory card.

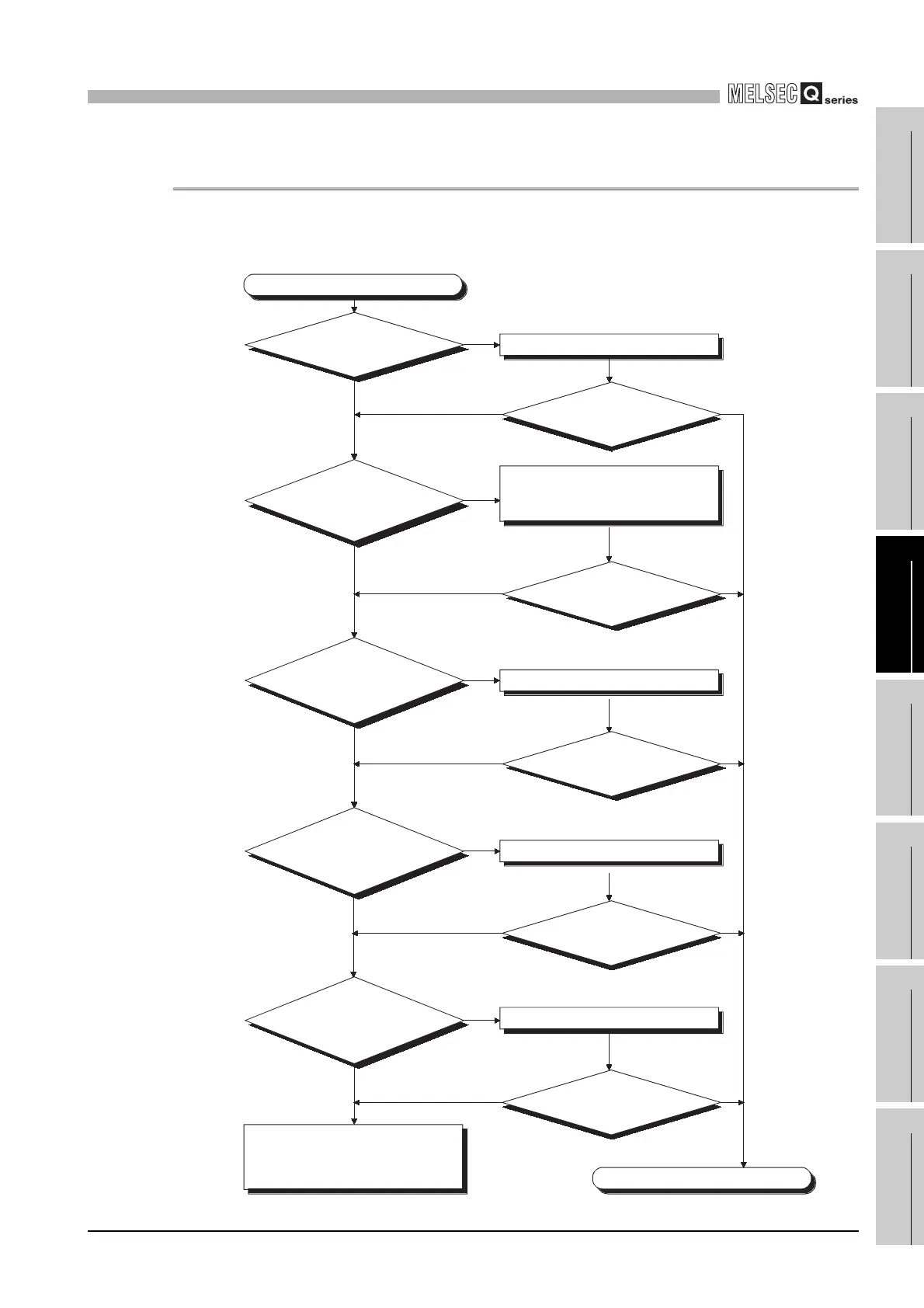

Diagram 12.15 Flowchart for when boot operation cannot be performed from memory card
Remove the cause of the error.
Write a file to the memory card.
Can boot operation
be performed?
Has a CPU error
occurred?
Is the parameter-
valid drive specified by the
DIP switches?
Set the DIP switch 2 and 3 to the
drive in which the parameter file is
stored.
Set a file to boot file setup.
Set a file to program setup.
Please consult your local nearest
Mitsubishi or representative,
explaining a detailed description of
the problem.
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
Is a file set
with parameter boot
file setup?
Is a file set with
parameter program setup?
Is boot
operation file stored in the
memory card?
Completed
Boot operation cannot be performed
Can boot operation
be performed?
Can boot operation
be performed?
Can boot operation
be performed?
Can boot operation
be performed?
