POINT
Install and remove the memory card while the power is turned on, paying
attention to the following.
1. Note that the data on the memory card may be damaged if the above
procedures are not performed correctly.
Also, if the CPU module operation for an error occurrence is set to "Stop" in
the Parameters, the CPU module stops its operation upon the occurrence of
ICM.OPE.ERROR.
2. When the memory card is installed, the scanning time is increased by several
10ms max. 1 scan is only added, when the CPU module executes mount
processing.
3. Using a memory card without fully pushing it into the connector may result in
an ICM.OPE.ERROR.
4. Use of the following tweezers is recommended when it is difficult to remove
the memory card.
Table7.7 Tweezers for replacing memory card
Product Model name
Plastic tweezers NK-2539

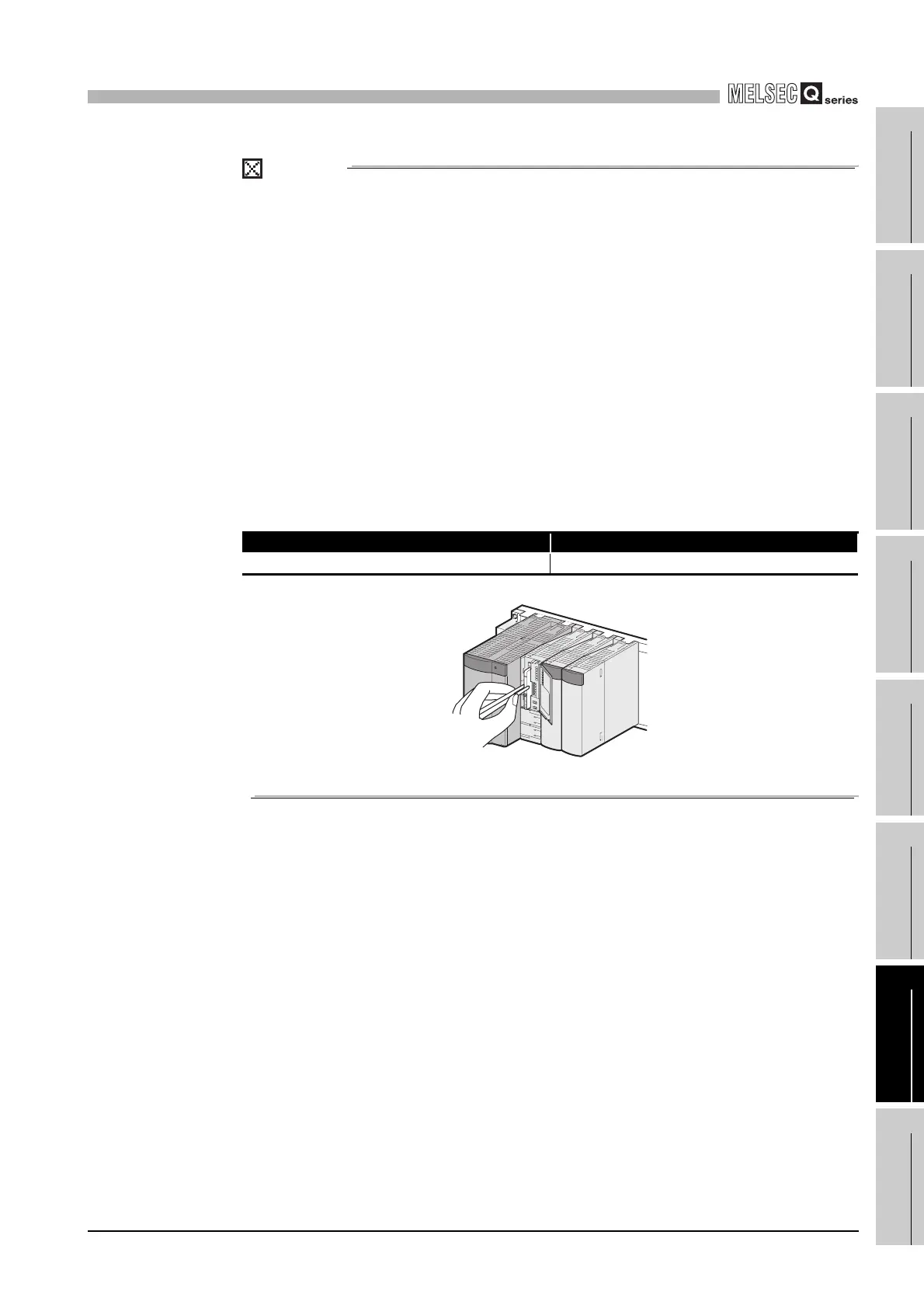

Diagram 7.7 Memory card replacement using plastic tweezers
