9.1 Requirements for Conformance to EMC Directive
9.1.5 When Using MELSEC-A Series Modules
9
EMC AND LOW VOLTAGE DIRECTIVES
3) Ferrite core and cable clamp types
• Cable clamp
Type : AD75CK (Mitsubishi Electric)
• Ferrite core
Type : ZCAT3035-1330 (TDK ferrite core)
4) Cable clamp mounting position
Table9.3 Number of required ferrite cores and cable clamps
Cable length Prepared part
Required Qty
1 axis 2 axes 3 axes
Within 2 m (6.56 ft.) AD75CK 1 1 1
2 m (6.56 ft.) to 10m
(32.79ft.)
AD75CK 1 1 1
ZCAT3035-1330 1 2 3

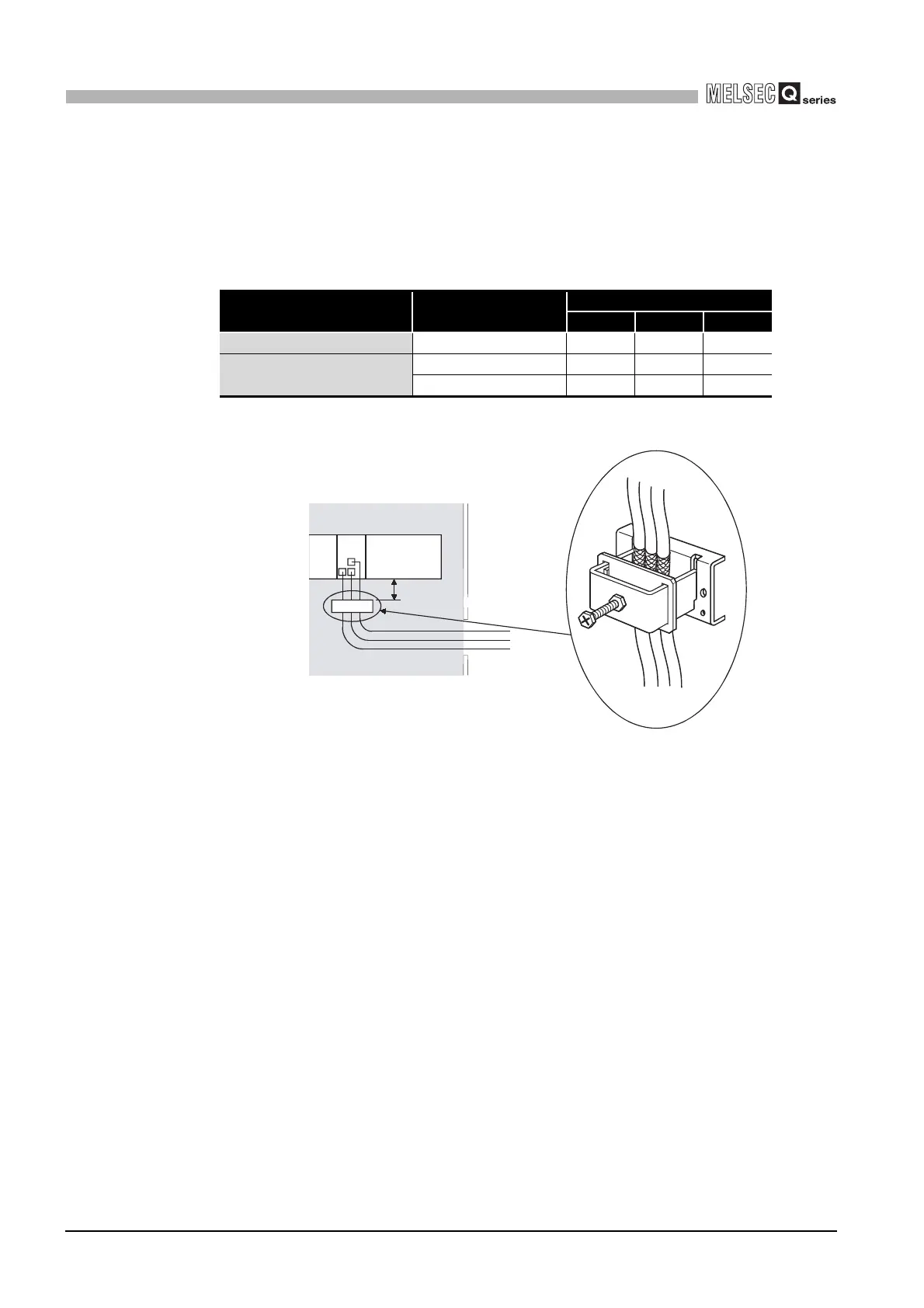

Diagram 9.16 AD75CK cable clamp mounting position
Inside control box
AD75
20 to 30cm
AD75CK
(7.87 to 11.81 inch)
