7 - 73 7 - 73
MELSEC-Q
7 FUNCTION

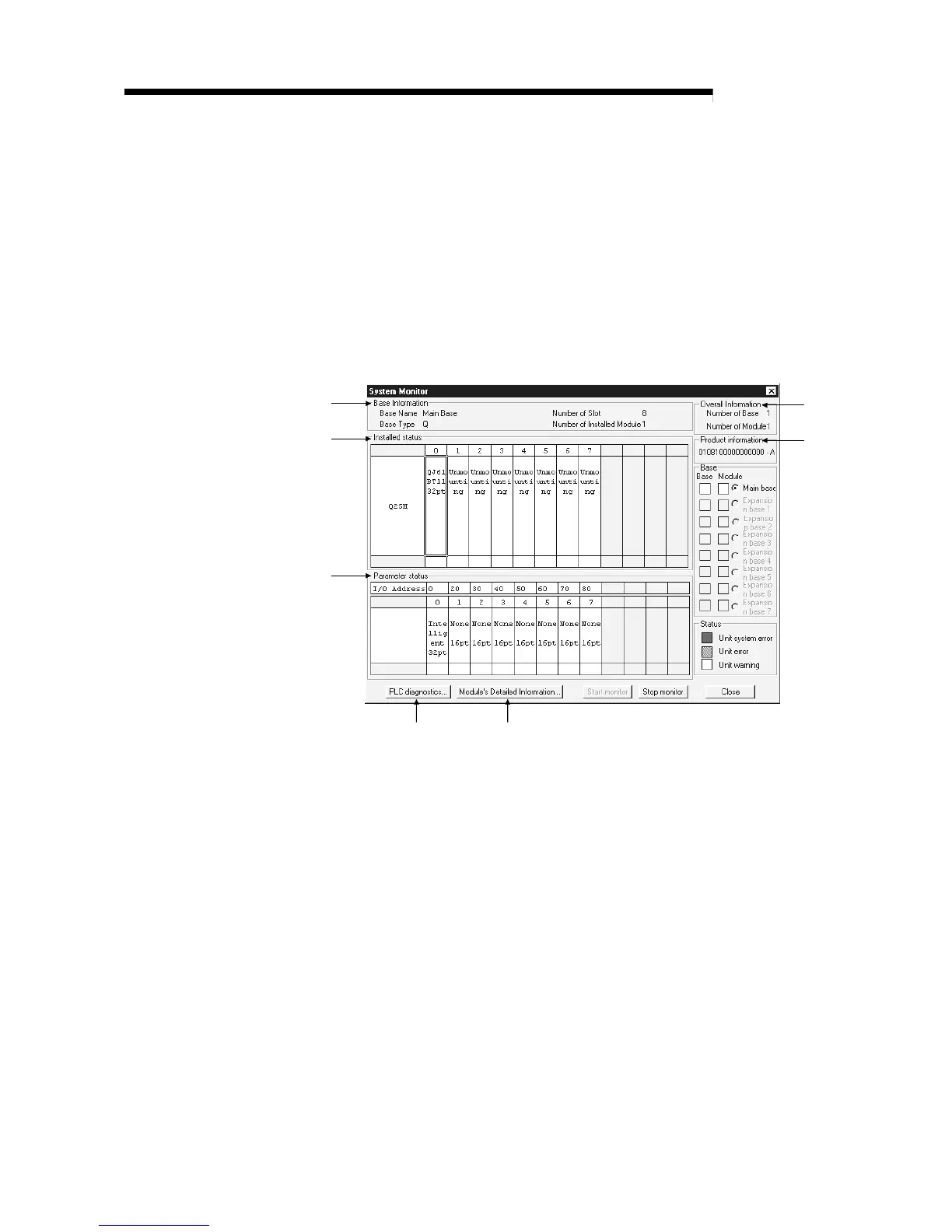

7.18 Monitoring High Performance model QCPU System Status from GX Developer
(System Monitor)
(1) In Case of GX Developer Version 4 (SW4D5C-GPPW-E) or GX
Developer Version 5 (SW5D5C-GPPW-E)
The System Monitor window provides the following information about the High
Performance model QCPU connected to the personal computer:
• Base information
• Installed status
• Parameter status
• Overall information
• Product information
(a)
(f)
(d)
(b)
(c)
(g)
(e)
(a) Base Information
The Base Information section shows information about a selected base
unit: the name of a base unit (main base or extension base 1 to 7), the
number of slots, base type, the number of modules mounted on the base.
1) The "Base name" field indicates the main base or extension base (with
power source). It indicates the extension base even if a power source
module is not installed on the extension base.
2) The "Base type" field indicates the following abbreviations:
• Q for Q33B, Q35B, Q38B, Q312B
• Q for Q63B, Q65B, Q68B, Q612B
• QA for QA1S65B, QA1S68B
3) The "Number of Installed Module" field indicates the number of
modules installed on the base unit.
(b) Installed status
The "Installed status" section shows the model name of the selected base
unit and the number of points. The "slot" column indicates "Unmounting" if a
base unit is not installed in a particular slot.
To Next Page
