19 STARTING UP THE MULTIPLE PLC SYSTEM
19.2 Setting Up the Multiple PLC System Parameters (Multiple PLC Settings, Control PLC
Settings)
This section explains the procedures for setting up the multiple PLC system
parameters with GX Developer.
Refer to the GX Developer's operation manual for details on setting up all other
parameters.
19.2.1 System configuration

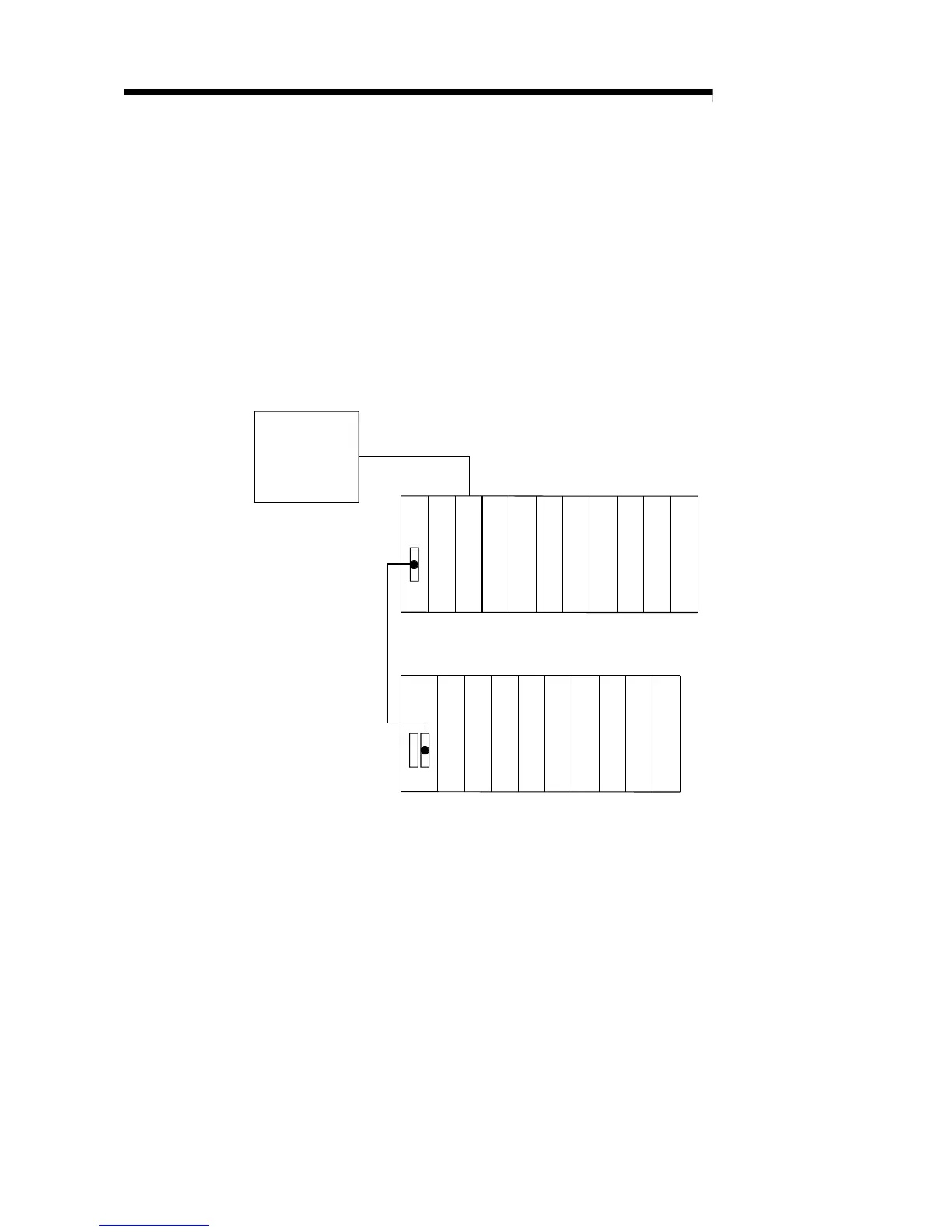

The following shows an example procedures for setting up the multiple PLC system
parameters.
PLC No.1
Power supply
No.1 input module
No.1 output module
No.1 intelligent
function module
GX Developer
Power supply
No.3 input module
No.3 output module
No.4 input module
No.4 output module
No.2 intelligent
function module
PLC No.2 PLC No.3 PLC No.4
No.2 input module
No.2 output module
