2 - 1 2 - 1
MELSEC-Q
2 SYSTEM CONFIGURATION FOR SINGLE CPU SYSTEM
2. SYSTEM CONFIGURATION FOR SINGLE CPU SYSTEM
This section describes the system configuration of the High Performance model
QCPU, cautions on use of the system, and configured equipment.
2.1 System Configuration
The outline of the equipment configuration, configuration with peripheral devices, and
system configuration in the High Performance model QCPU system is described
below.

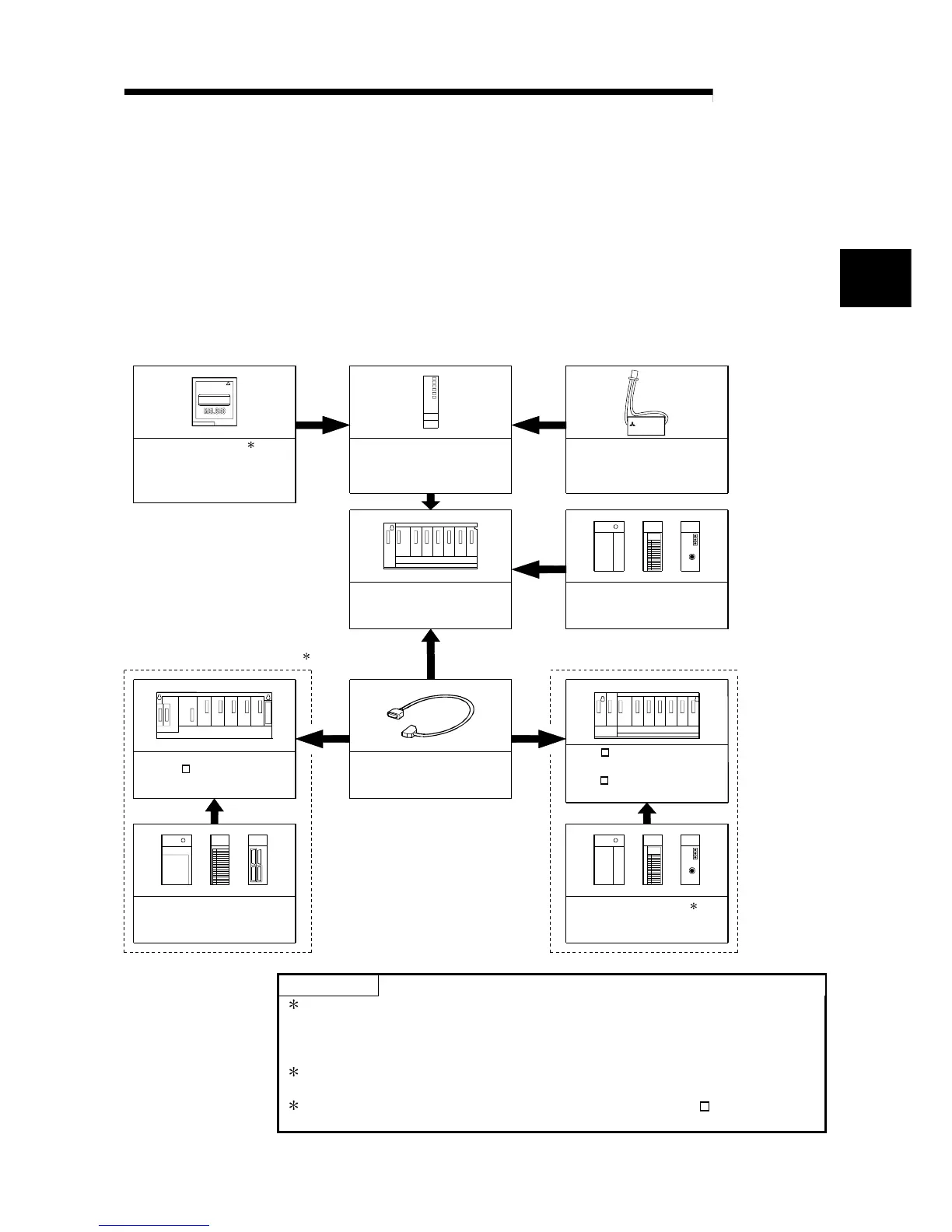

(1) Equipment configuration
POINTS
1: The number of memory cards to be installed is one sheet.
The memory card must be selected from SRAM, Flash, and ATA according to
the application and capacity.
With commercial memory cards, the Operation is not assured.
2: QA1S65B and QA1S68B extension base units are used for the power supply
module, I/O module, and special function module of the AnS series.
3: The Q series power supply module is not required for the Q5 B type extension
base unit.
2
Q6 B extension base unit
(Q63B, Q65B,Q68B,Q612B)
Q5 B extension base unit
(Q52B, Q55B)
Memory card
(Q2MEM-1MBS,Q2MEM-2MBS,
Q2MEM-2MBF,Q2MEM-4MBF,
Q2MEM-8MBA,Q2MEM-16MBA,
Q2MEM-32MBA)
High Performance model QCPU
(Q02CPU,Q02HCPU,Q06HCPU,
Q12HCPU,Q25HCPU)
Battery
(Q6BAT)
Main base unit
(Q33B, Q35B,Q38B,Q312B)
Power supply module ,
I/O module , Intelligent function
module of the Q Series
Extension cable
(QC05B,QC06B,QC12B,
QC30B, QC50B,QC100B)
Power supply module ,
I/O module , Intelligent function
module of the AnS Series
Extension of the AnS Series module Extension of the Q Series module
MITSUBISHI
MITSUBISHI
LITHIUM BATTERY
1
2
QA1S6 extension base unit
(QA1S65B,QA1S68B)
Power supply module ,
I/O module , Intelligent function
module of the Q Series
3
To Next Page
