16 - 5 16 - 5
MELSEC-Q
16 COMMUNICATION BETWEEN CPU MODULES IN MULTIPLE PLC
SYSTEM

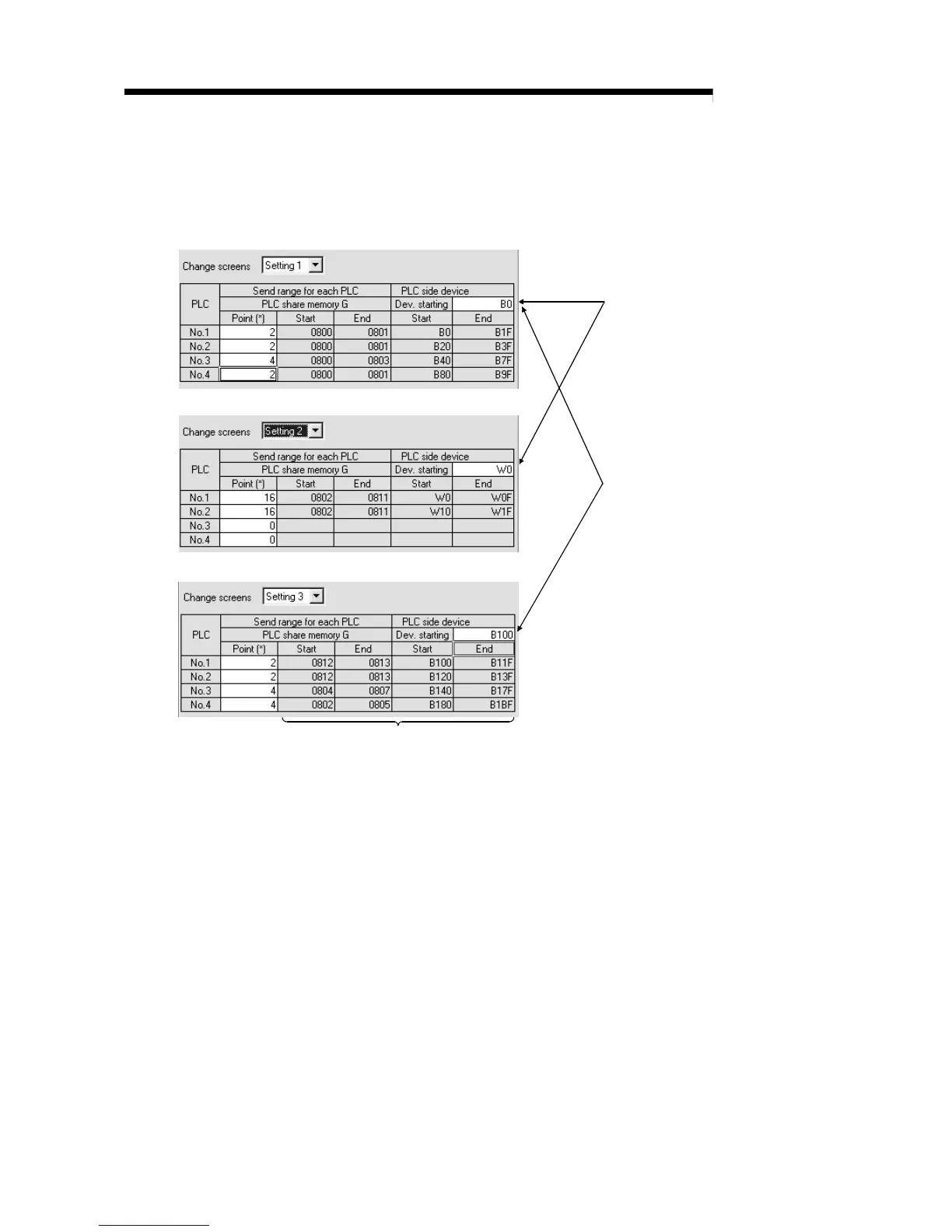

2) The CPU devices are set as follows.
• It is possible to change the device and set up settings 1 to 4.
The same devices can also be specified as long as the device range
for settings 1 to 4 are not duplicated.
• It is possible to change the device
and set up settings 1 to 4.
• The same devices can be specified
for settings 1 to 4. However, as setting
1 in the illustration on the left uses
160 points between B0 and B9F,
BA0 and higher can be used for setting 3.
No part of a device number can be
duplicated, as shown with B0 to B9F
on setting 1 and B90 to B10F on setting 3.
Setting 1: In the case of link relays
Setting 2: In the case of link registers
Setting 3: In the case of link relays
The first and last will be calculated automatically with the GX Developer
