1.6.2 Controller

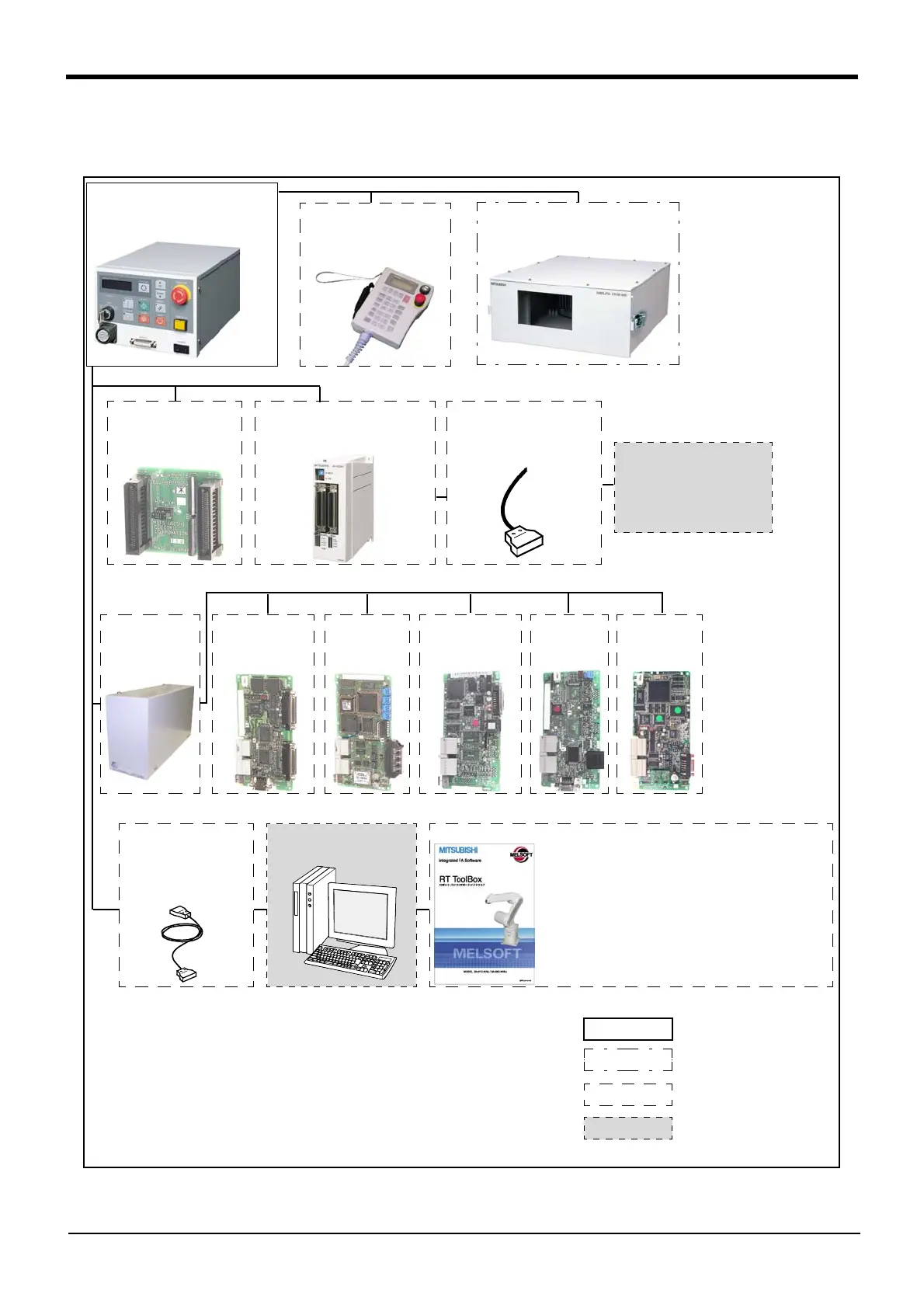

The devices shown below can be installed on the controller.
Personal computer support software
(MS-Windows95/98/NT4.0)
･ 3A-01C-WINE(CD-ROM)
Personal computer support software mini
(MS-Windows95/98/NT4.0)
･ 3A-02C-WINE(CD-ROM)
Personal computer
Preparedby customer
Controller
・ CR1B-571
Pneumatic I/F
・ 2A-RZ365 (Sink)
・ 2A-RZ375 (Source)
Personal computer
cable
・ RS-MAXY-CBL
・ RS-AT-RCBL
Teaching pendant
(T/B)
・ R28TB
Parallel I/O unit
・ 2A-RZ361 (Sink)
・ 2A-RZ371 (Source)
External I/O cable
・ 2A-CBL05 (5m)
・ 2A-CBL15 (15m)
Expansion
option box
・CR1-EB3
Extended
serial I/F
・ 2A-RZ581E
ETHERNET I/F
・ 2A-HR533E
CC-LINK I/F
・ 2A-HR575E
Additional
axis I/F
・ 2A-RZ541E
*1) There are some restrictions on the
number of optional interfaces and their
combinations.
Refer to the separate "Controller setup,
basic operation, and maintenance" for
details.
*2)
Controller protection box
・ CR1-MB
*1) This is provided as standard
for the specification with the
controller protection box.
*1)
PROFIBUS
I/F
・ 2A-RZ577
PLC(Programmable
Logic Controller)
External device
Prepared by customer
*2) *2) *2) *2)
Standard configuration
［Caution］
equipment
Special shipping
Option
specifications
Prepared by customer
