3-57 Controller protection box
3 Controller
■ Names of each part

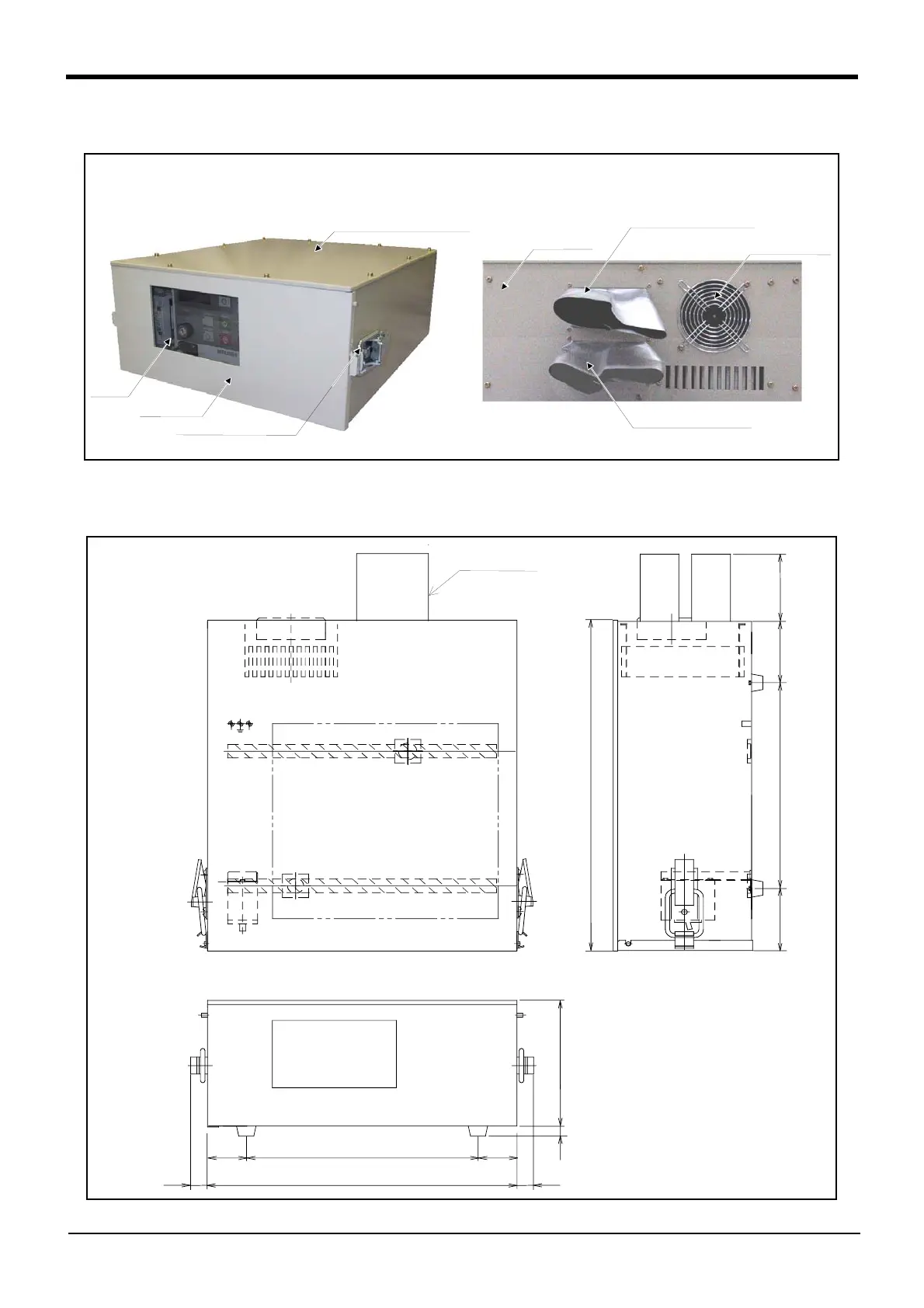

Fig.3-12 ： Names of controller parts
■ The outside dimension and controller layout
Fig.3-13 ： The outside dimension and controller layout
Chassis cover (Top board)
Corner type catch clip
Window
Front panel
Rear panel
Cable cover
(Machine cable for power)
Heat exchanger
Cable cover
(Machine cable for signal)
<Front>
<Rear>
310
414
(52) (52)
(21.5) (21.5)
187(15)
492 306 91.292.2 100
Window
Cable cover
Controller arrangement place
