3 Controller
Parallel I/O unit
3-62

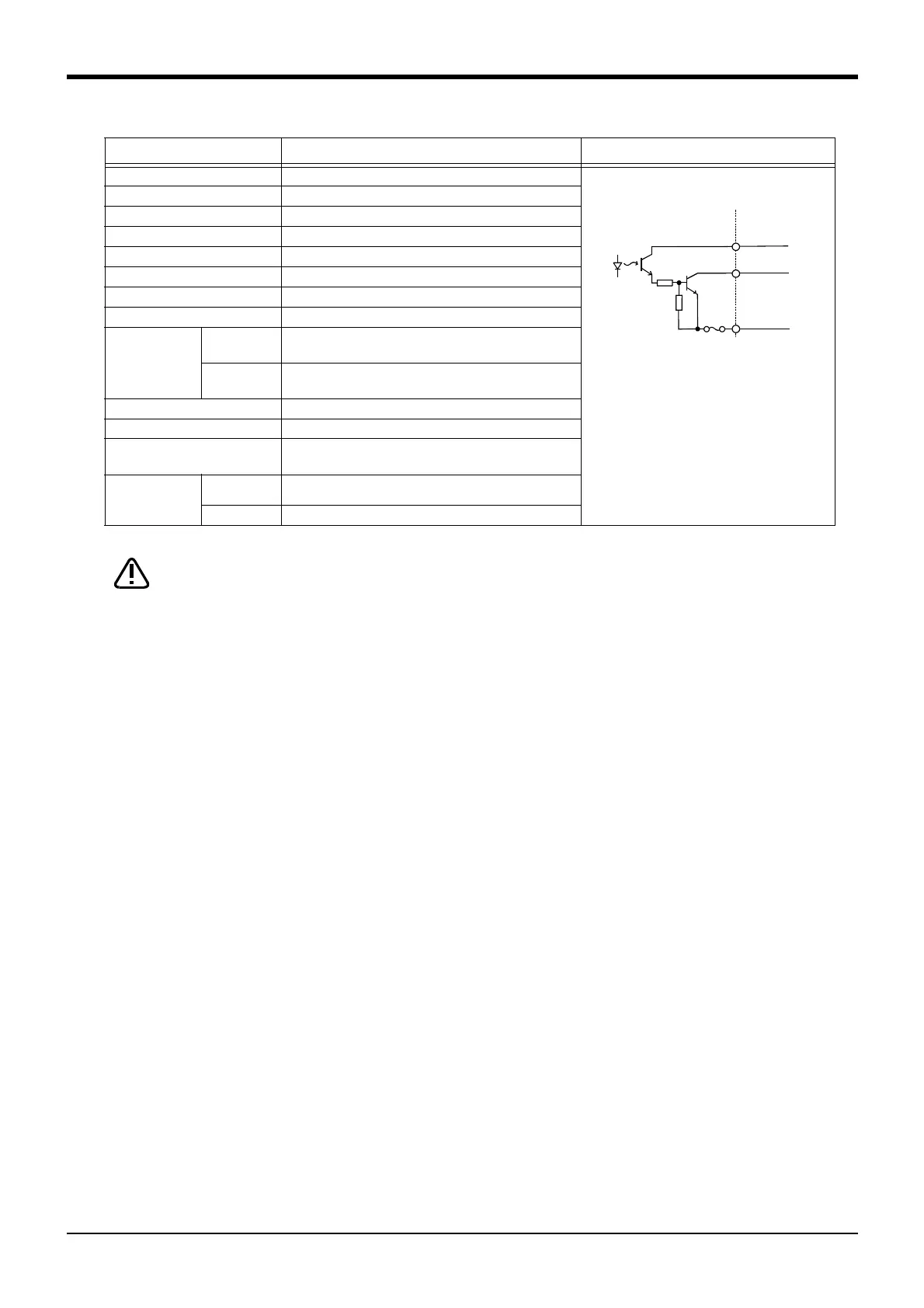

Table 3-18 ： Electrical specifications for the output circuits
The output circuit protective fuses prevent failure in case of load short-circuit and
improper connections.
Please do not connect loads that cause the current to exceed
the maximum rated current. If the maximum
rated current is exceeded, the internal
transistors may be damaged.
Item Specification Internal circuit
Type Transistor output
No. of output points 32
Insulation method Photo-coupler insulation
Rated load voltage 12VDC/24VDC
Rated load voltage range 10.2 to 30VDC(peak voltage 30VDC)
Max. load current 0.1A/point (100％)
Leakage current at OFF 0.1mA or less
Max. voltage drop at ON 0.9VDC(TYP.)
Response time
OFF-ON
2ms or less
(hardware response time)
ON-OFF
2ms or less
(Resistance load) (hardware response time)
Fuse rating Fuse 3.2A (one per common) Replacement not possible
Common method 8 points per common (common terminal: 8 points)
External wire connection
method
Connector
External power
supply
Voltage 12VDC/24VDC(10.2 to 30VDC)
Current 60mA (TYP. 24VDC per common) (base drive current)
(24/12V)
Outline
(0V)
Fuse
CAUTION
To Next Page
