3 Controller
Parallel I/O unit
3-64
■ Installation method
The expansion parallel input/output unit is installed outside of the controller. Connect with the network connec
-
tion cable (NETcable-1) from the RIO1 connector in the rear of the controller.

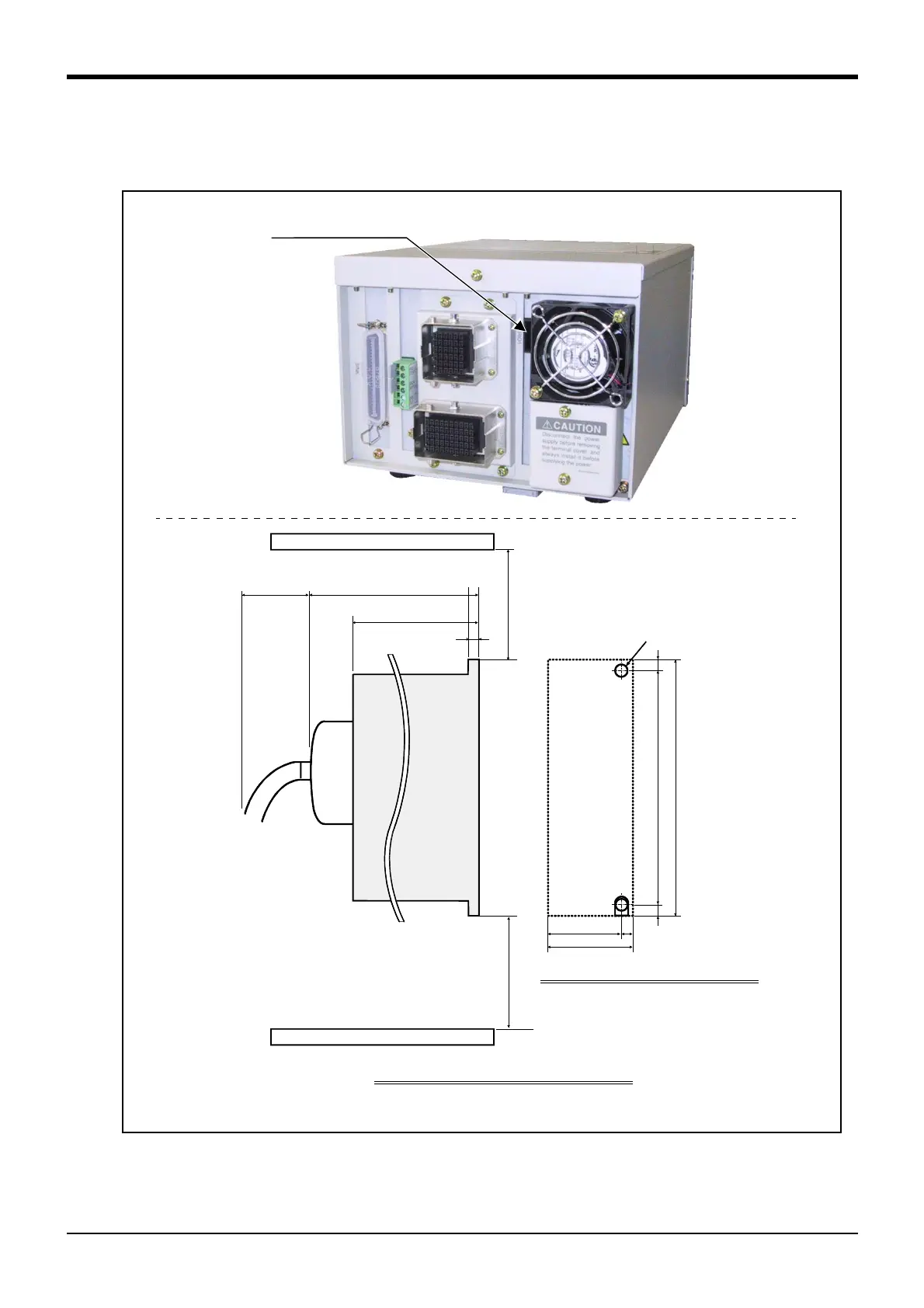

Fig.3-18 ： Installing the parallel input/output unit
RIO1 connector
(The controller outside installation.）
60
54 6
Radiation/wiring space
150
6
156
2-Ｍ５ screw
6
168
Heat radiation space
128
(175)
100
Wiring
space
(40)
<2A-RZ361>
Installation dimensions of 2A-RZ361
6
downside
upside
Control panel installation dimensions
