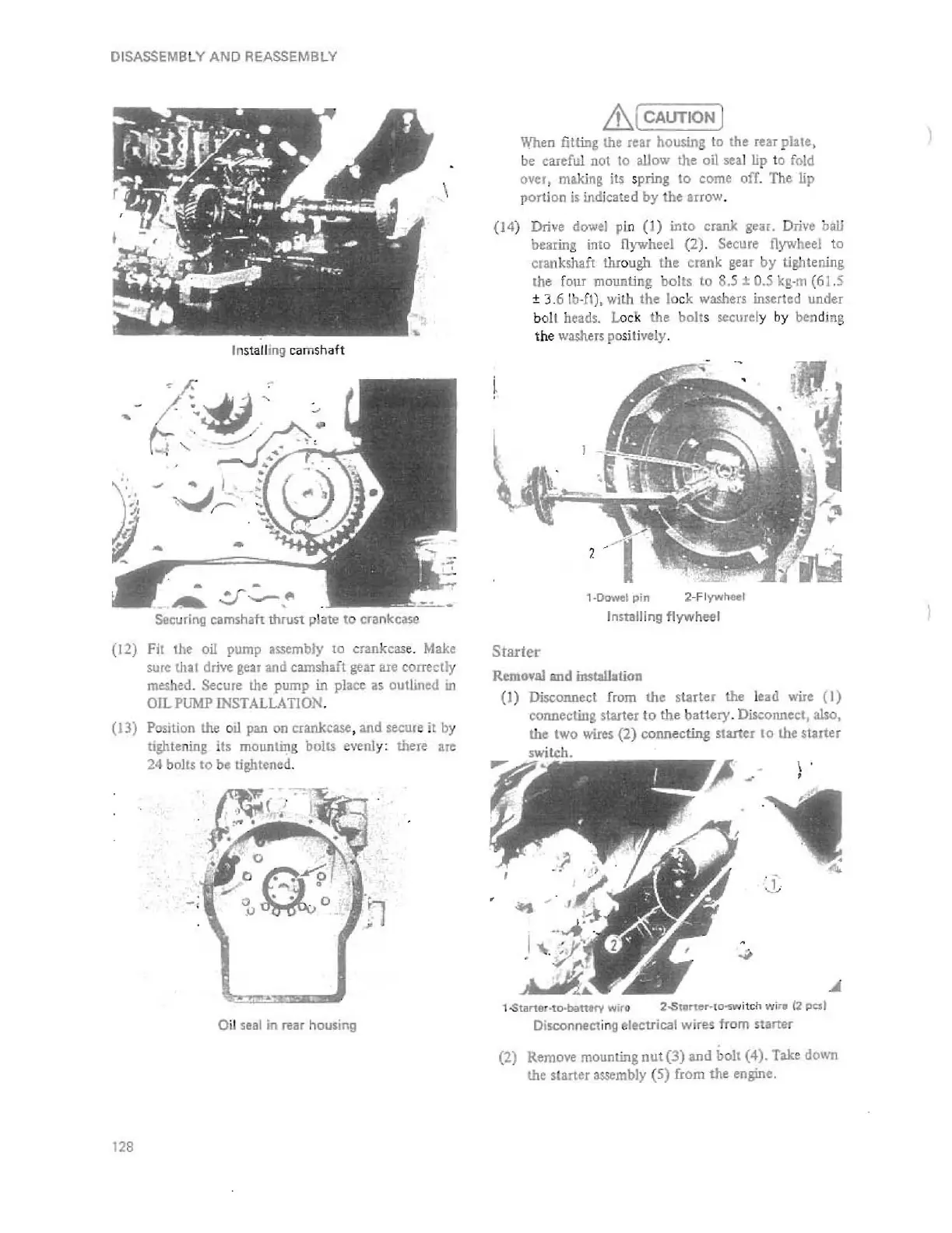

DISASSEMBLY AND REASSEMBLY
I
ns tall ing ca mshaft
~ - .. j 1- .
""'" r--
-
~ -,
• iIIIii
~ .:.1----."
Sec u ring camshah thrust plate to crankcase
\
(\2) Fil the oil pump assembly to crankcase. Make
sure that drive gear and camshaft gea r are correctly
meshed . Secure the pump in place as. outlined in
OIL PUMP INSTALLATlON.
(13) Position the OU pan on crankcase, and secure it by
tightening its mounting bolts evenly: there are
24 bolts to b. tightened.
II
•
Oi l seal in rear ho using
128
(14 )
Lb.1 CAUTION 1
When titling the rear housing to the rear plate
l
be careful nol 10 allow the oil .. al lip to fold
OV<I, making its spring to come off. The lip
portion is. indi<:ated by the arrow ,
Drive dowel p in (1) into crank gear. Drive bali
bearing inlo flywheel (2) . Secure flywheel to
crankshaft through the crank gear by tightening
the
fo ur mounting bo lts to 8.5 t 0.5 kg·", (61.5
± 3.6 Ib - ft ), with the lock wllSbers insetted under
bolt heads. Lo ck the bollS securel y by be Jl d mg
the washers po siti ve ly.
1 -DD'I'III!I~ !lin 2 -F Iywhael
Installing flywh .. 1
Starter
Removal and insto1latiOD
(J) Disconnect from the start er the lead wire (I)
connecting starter to th e ba tt ery . Disconnect
,
also,
the two wires (2) connecting starter to the Slalter
J.
..i;
~
,..st arttlT .to -batttfY wi( (J 2.stQr1et-l o~ it ch wi Jlll (2 Pe1)
Disconnecti ng electrical wires fr om starter
(2) Remove mounting nut (3) and bolt (4). Take doWll
the slatter assembly (5) from the engine.
