Mitsubishi S4E User Manual

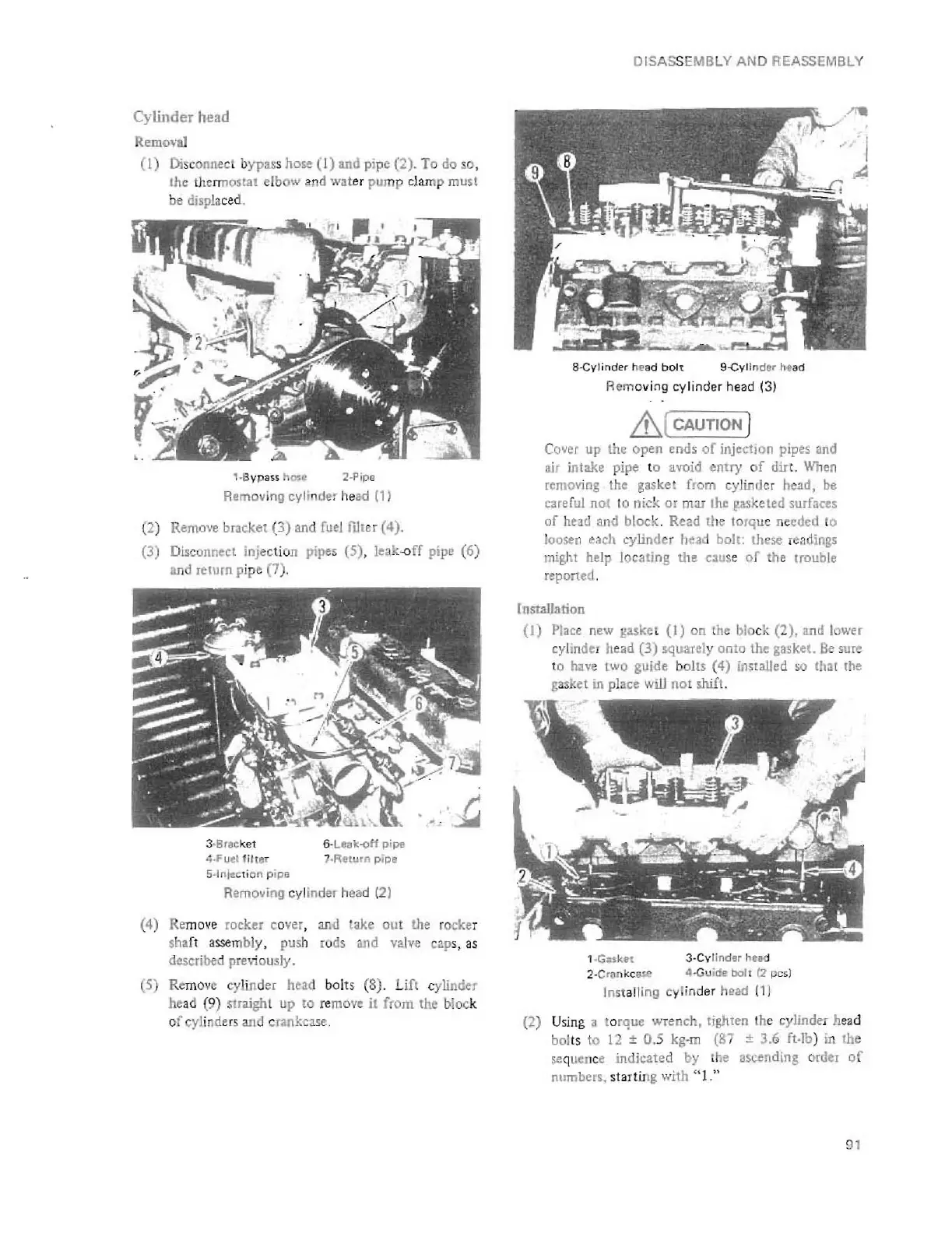

Cylinder head
Remol-'81
(1) Disconnect hyPass hose (1) and pipe (2). To do s'
the thermostat elbow and wat er pu mp cl amp must
be displaced.
1.Bypass hos. 2·Pjpe
RemovinQ cyli nder he ad (1)
(2) Remove bracket (3) and fue l ruler (4).
(3)
Disconneet inj ec tion pipes (5), Ieak -o ff pipe (6)
and ,otll,n pipe (7) .
3 -Bt.ae ket
4 -F uet filU,T
5 -lnl~c ti on pipe
6- Leak-oH pjpe
7 ·Ft'turn pipe
Remoying cylin der head (2)
(4) Remove rocker cover. and take OU t the rocker
s ha ft asse mbly. pus h [o ds and valv e Ci!PS, as
describe d pre ... iously.
(5) Rem ove cylif1der head bolts (8). Li ft cylinder
he ad (9) straight up to re mOve it from the block
of cyl i nders and crankcase.
DI SAS SE MB LY AN D REASSEMBLY
8-Cvlinder he ad bOlt 9-Cyli nder h. "d
Rem oving cylinde r head (3)
&, ( CAUTION )
Cover up the open ends of injection pipes and
air intake pipe to avoid entry of dirt. When
removing the gasket from
cyli nde r head, be
careful
no t to nick or mar the ~skeled surfaces
of head and blo ck . Read the torque needed 10
loosen eacl\ cylinder ht:ad boh: these ren dings
might help locating the c3use o f the tr'Ouble
report ed .
Installation
(I) PI,,, new gasket (I) on the block (2), and lower
cylmder
he ,d (3) squarely onto the gaskot.lle sure
to luv. twO guide bolt' (4) installed so th.t the
gas ktt in place will not Wft.
(2)
1·G."k8"[
3· C yli ndogr heed
2 ·C re nk c a.se A· Gu idl!: bolt (2 pes)
Inst al l inQ cyl in der head (1J
Using a torque wrench, tighten the cylinder head
bolts
to 12 ± 0.5 kg·m (87 "3.6 ft·lb) m the
se quence indicated by tbe ascending order of
nt1mbers., start in g with «1."
91
