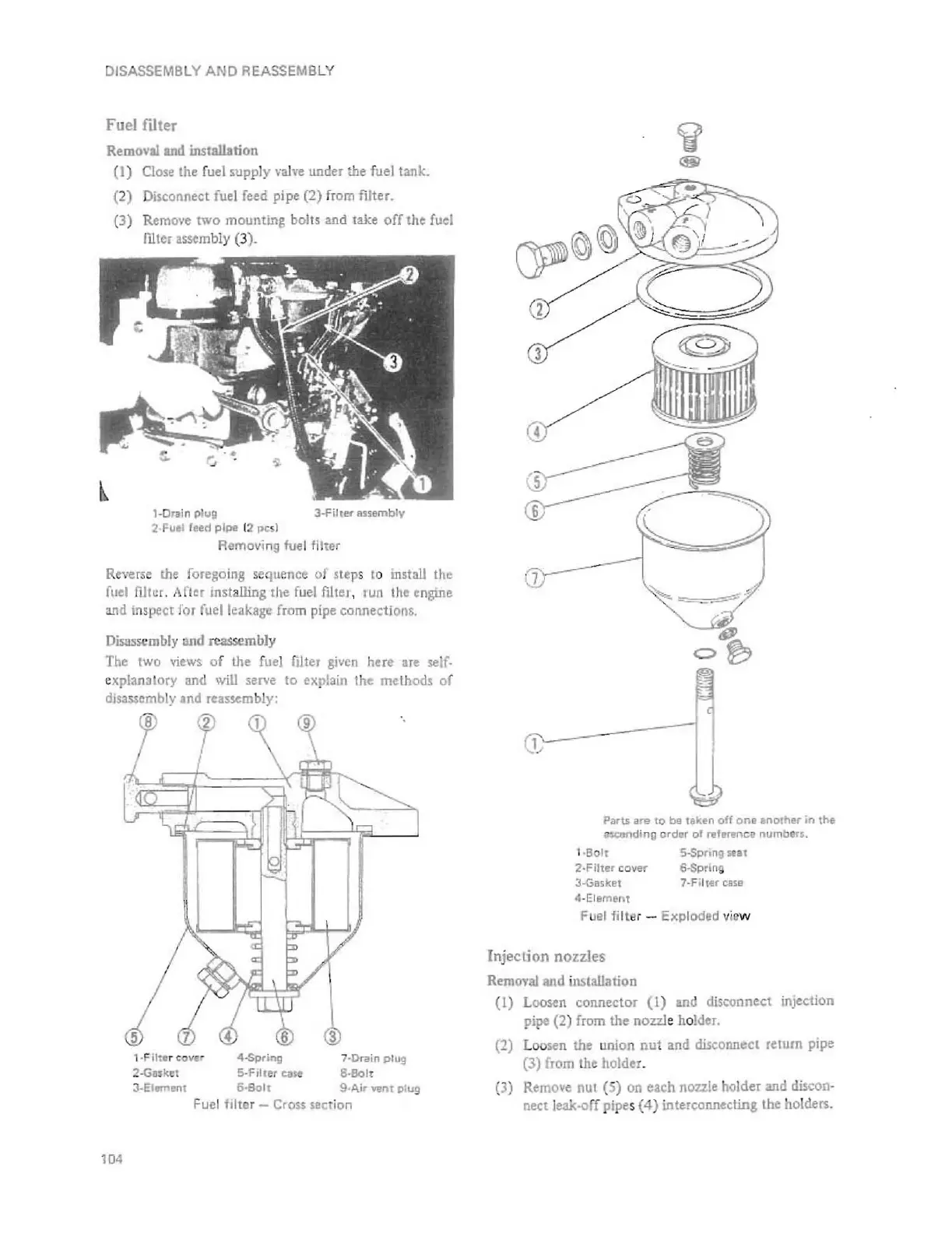

DISASSEMBLY AND REASSEMBLY
Fuel mler
RemoYII and inslal1Jtion
(1) Close Ih. fu.l supp ly valve under the fuel tank.
(2) Disconnect fuel feed pipe (2) from fiJter.
(3) Remoye two mounting bolt, and take off the fuel
Illt.r assembly (3 ).
l-Or.in plug 3...fihl!f" assemblv
2·Fult rf!ed pipe 12 IX'S 1
Removing fuel fil ter
Reverse the foregoing seqUf: nce of steps to install the
fu.1 mlor. Ar(" Insta1Jing the fuel flit." run the 'ngme
and inspett fOT fuel leakage from pipe connections.
Disassembly and reassembly
The (wo views of the fuel filter giycn here are self·
explanalory and will serve to explain the methods of
dlS.ssembly and reassembly:
1·Filtcr cov, - 4-5pring 7·Drain plug
2-Gaskcl 5-Frller taJe 8-Bolt
3-Ehrme"( 6·Bolt g·Air vent plug
Fu el filter - Cross section
104
~
IS
-
(}J©)~ ~
2
3
4
1. ,
~
~
Parts a~ to be t,ken off one another in the
8$Qt11ding ordor of retltrwnce numbers.
1·801t
S-Spran51 seat
2-Filtl!lf c:o \ler 6-Sprln
J-Gaskst 7·Ft l,' f CIIse
4-Element
Fuel 1ilter - Exploded vio w
Injeclion nozzles
Remol'a1 and instaUatioD
(I) Loosen connector (1) and disconnect injection
pipe
(2) from the nozzl e holder.
(2)
Loosen the u nion nut and disconnect return pipe
(3) from the holder .
(3) Remove
nut (5) on each nozzle holder and discon-
nect l eak·orr pipes (4) interconnecting the holde ...
