Fig. 51

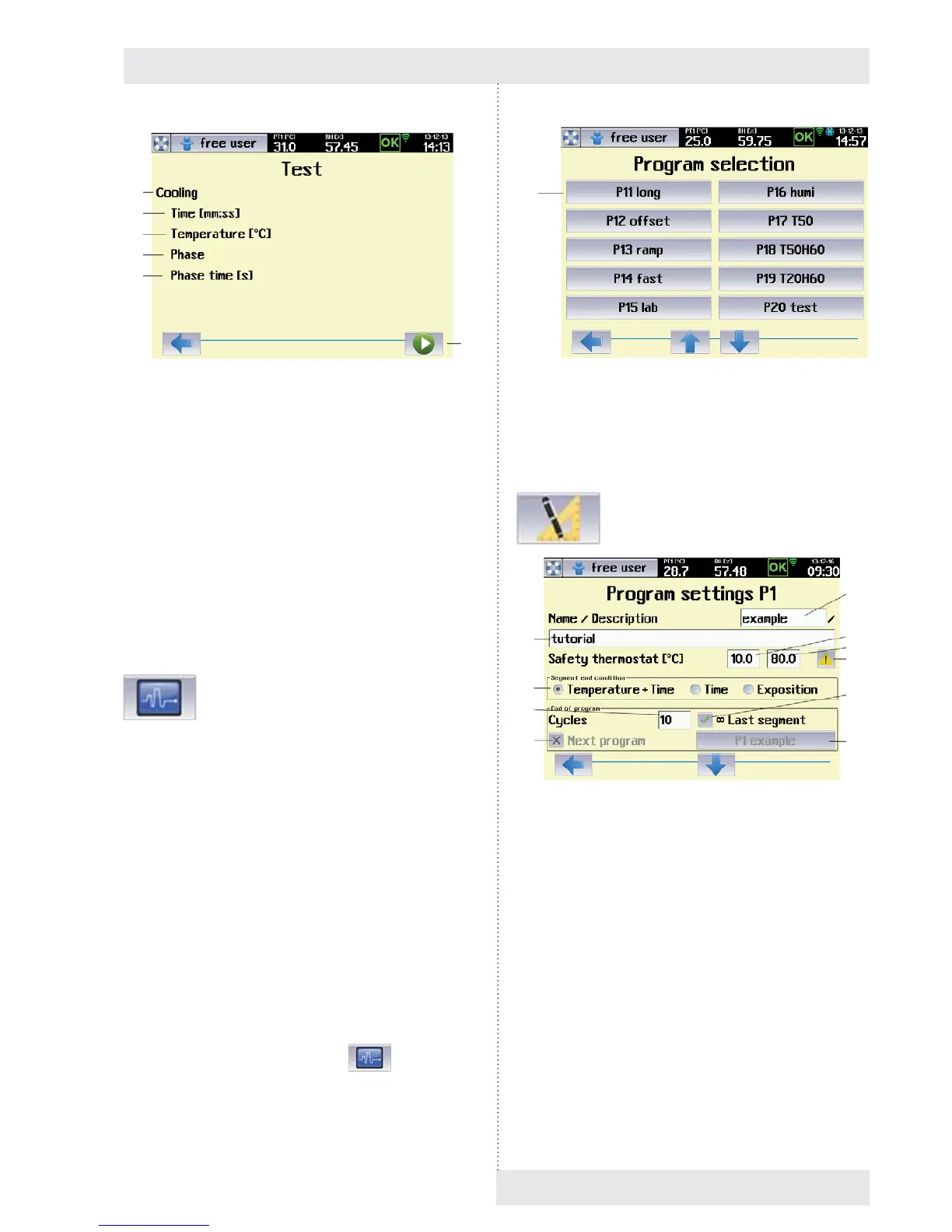

(1) Test name
(2) Total test time.
(3) Current temperature.
(4) Current test phase.
(5) Current test phase time.
- In the end of the test, this position will continue to
display time of phase „3“ (cooling 22 °C →
10 °C). Compare the time with values in the table,
see chapter 11.1 „Cooling time“.
Tolerance +/- 20 %.
(6) Start.
8.4 PROGRAMS
The device’s memory can store up to 100 programs. Each
program may be broken down into 100 fully confi gurable
sub segments
Shows Fig. 55 an example of program P1, consisting of six
segments S1 up to S6. Each segment is clearly defi ned in
terms of length and the temperature to be attained in that
particular segment. For example, the fi rst segment S1 has
the time t1 and the end temperature T1 (i.e. must run to
temperature T1 at time t1). The end temperature of segment
S2 is the same as that for S1, and is therefore horizontal.
The required end temperature for segment S5 is lower than
for segment S4 – it is decreasing.
8.4.1 LIST OF PROGRAMS
Start setting the program by pressing (Fig. 12).
This displays the home screen with the list of programs. The
user may select from program P1 to P100 (Fig. 52).
Fig. 52
(1) Push buttons for relevant program selection.
8.4.2 DEFINITION OF PROGRAM
Fig. 53
(1) Program name.
(2) Description of program
(3) Safety thermostat settings – lower limit.
- See 8.4.2.1
(4) Safety thermostat settings – upper limit.
(5) Warning / error selection
- Selects how the device acts if the temperature
rises above (falls below) the set limit. See 8.4.2.1.
(6) Condition for ending the segment:
- Temperature + time – the segment ends only
if the set time has elapsed and the required
temperature has also been attained. If at least one
of these conditions is not met (i.e. the required
temperature has not been attained or the set time
has not yet elapsed), the segment continues.
- Time – the segment ends after the set time has
elapsed, regardless of whether or not the required
temperature has been attained.
(1)
(2)
(3)
(4)
(5)
(6)
(1)
(2)
(6)
(7)
(9)
(1)
(3)
(4)
(5)
(8)
(10)
