. This default is usually fine and nothing needs
to be changed. However, if the lower power level Class 1 is sucient for your application,
it may be advantageous – due to possible internal power distribution schemes amongst
the ports of the PoE switch in use – to change the PoE power level class in the browser:
nder Power Supply, click Change.
will appear to guide you through the PoE
he camera will then need to be restarted via a hard reboot:
, then recon-
nect it, for example, by disconnecting and then reconnecting
the network cable at the PoE switch.
the factory pre-installed cable of the
connector of the Network Power Adapter.
connector of the NPA to the switch/router or the Ethernet
connector of the NPA to the switch/router or the Ethernet
socket using an Ethernet connector.
lug the RJ45 connector of the external power unit into the
connector
of the Network Power Adapter.

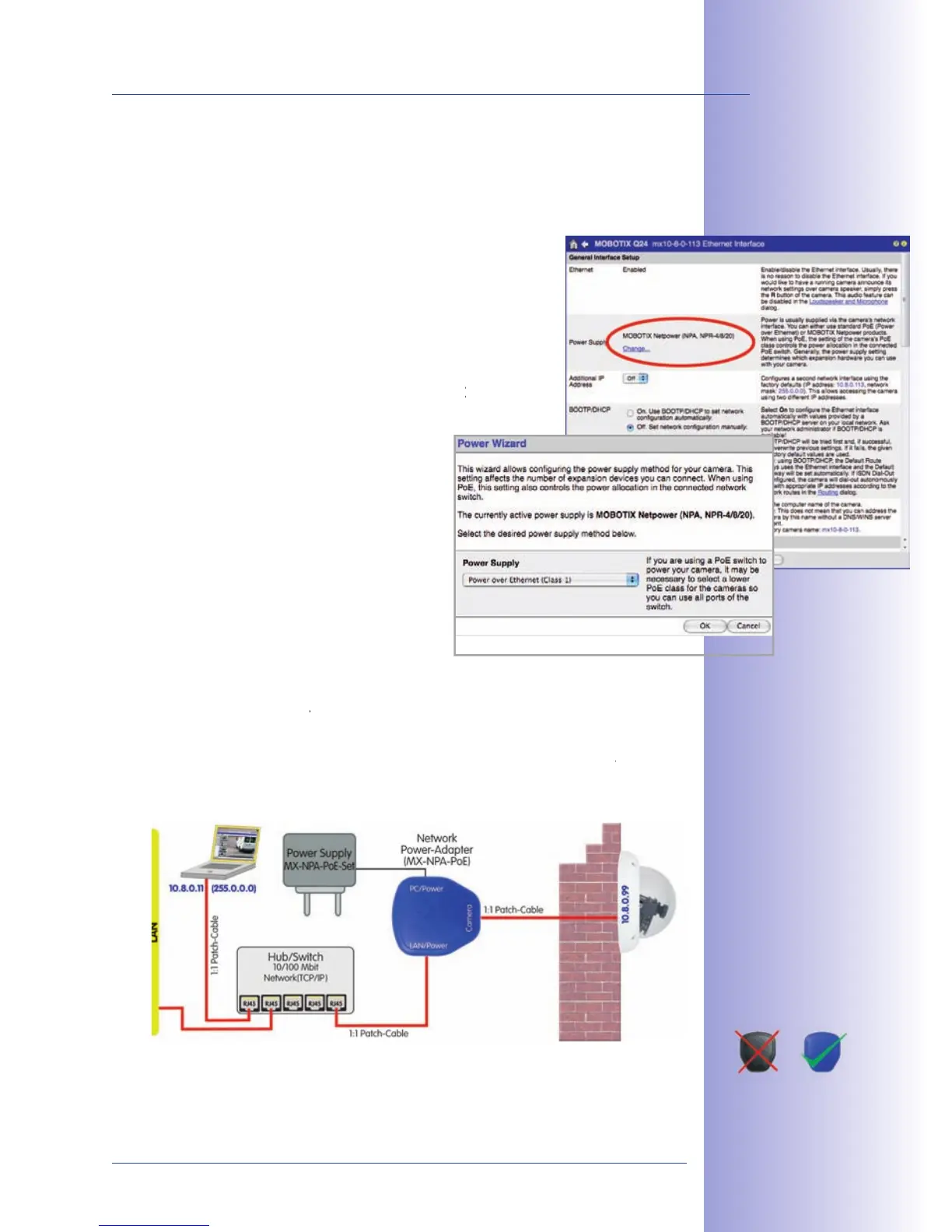

Variable PoE: multiple
cameras can be oper-
ated simultaneously
from the same switch
For the D24M, you
should use the new
blue MX-NPA-PoE-Set
- previous MOBOTIX
network power acces-
sories such as the NPA
Set, Power Box and
Power Rack (MX-NPA-
Set, MX-NPR-4 and
MX-NPR8/20) are
not suitable for use
with the D24M
The IP addresses in
the diagram are shown
only as an example
To Next Page
