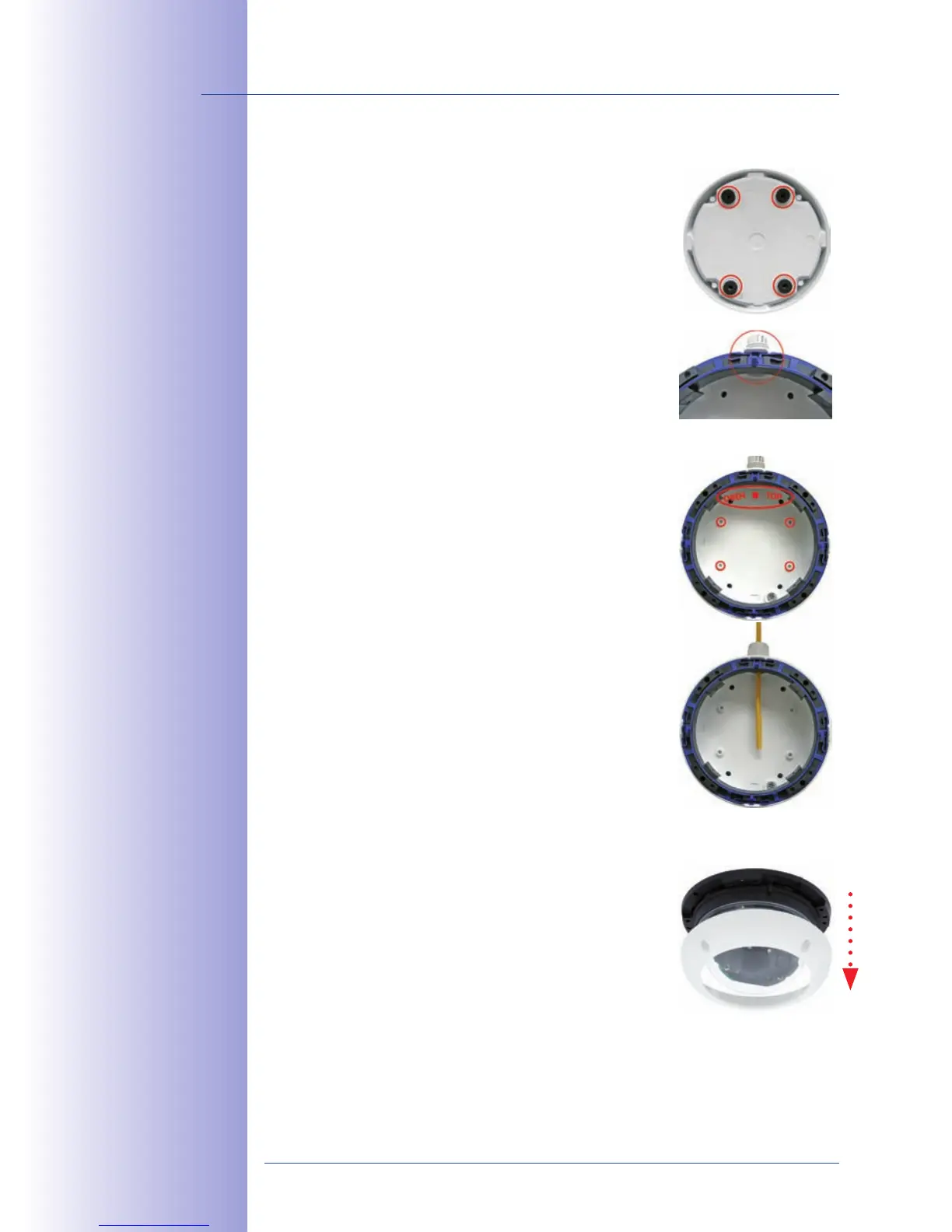

1. : Prior to installation, stick a black foam
rubber washer around each of the four screw holes on
the rear side of the on-wall housing (remove the adhesive
foil and press into place, surface must be clean and free
of grease). This prevents water from entering the housing.
2. : Insert the seal into the cable
opening of the On-Wall Set such that the black rubber
seal is on the outside. Fix it in place from the inside
using a small hexagonal nut.
3. : Mount the On-Wall Set (with-
out the camera) at the intended position using the Torx
screws (included with D24M camera, items 1.10 – 1.12).
4. : Attach the counter nut to the network
cable, pass it through the seal from the outside and
tighten the nut. The network cable is now screwed into
the On-Wall Set, weatherproof. All unused openings
must be sealed with the included sealant plugs. The
cable passing into the housing must always be installed
using the supplied three-part fittings.
5.
: Remove all four Allen
screws with the supplied Allen wrench and lift o the
outer shell (not mounted upon delivery).
