Moeller MI4 - MI4-140-KF1 (hand-held)

Data interfaces of
MI4-140-KF1 (hand-held)
25
12/03 AWB-C27-1293GB

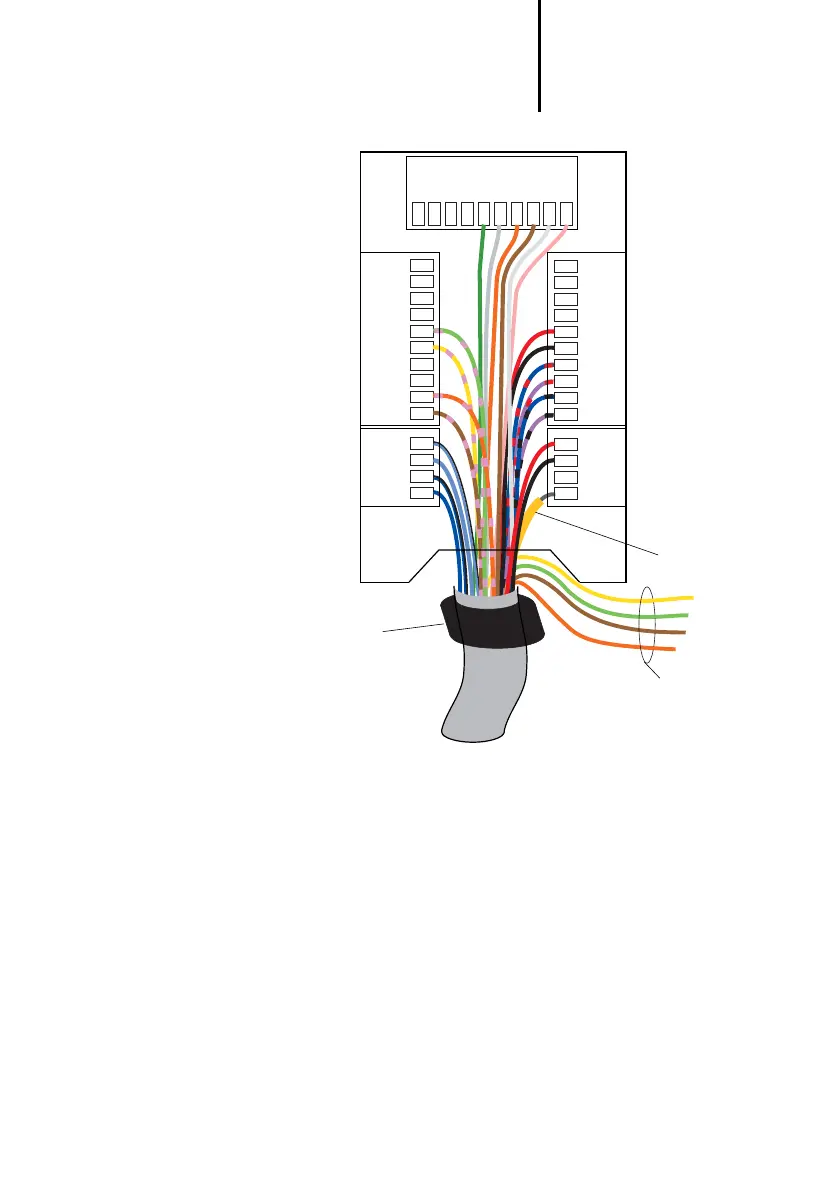

Figure 12: Wiring of the MI4 hand-held as supplied
햲 PE, cable screen
햳 Emergency-Stop switch, only for voltages up to
48 V DC (wire yellow and green cable and brown and
orange cable together)
햴 Ferrite ring required for fault-free device function
CN2
CN5
CN1
CN4
CN3
123456789 10
12341234 56789
10
10 9 8 74321 65432
1
a
b
c
