Moeller MI4 - Communication Cables; Text Operator Panel (Without PC;PRINTER PORT)

Operation
54
12/03 AWB-C27-1293GB

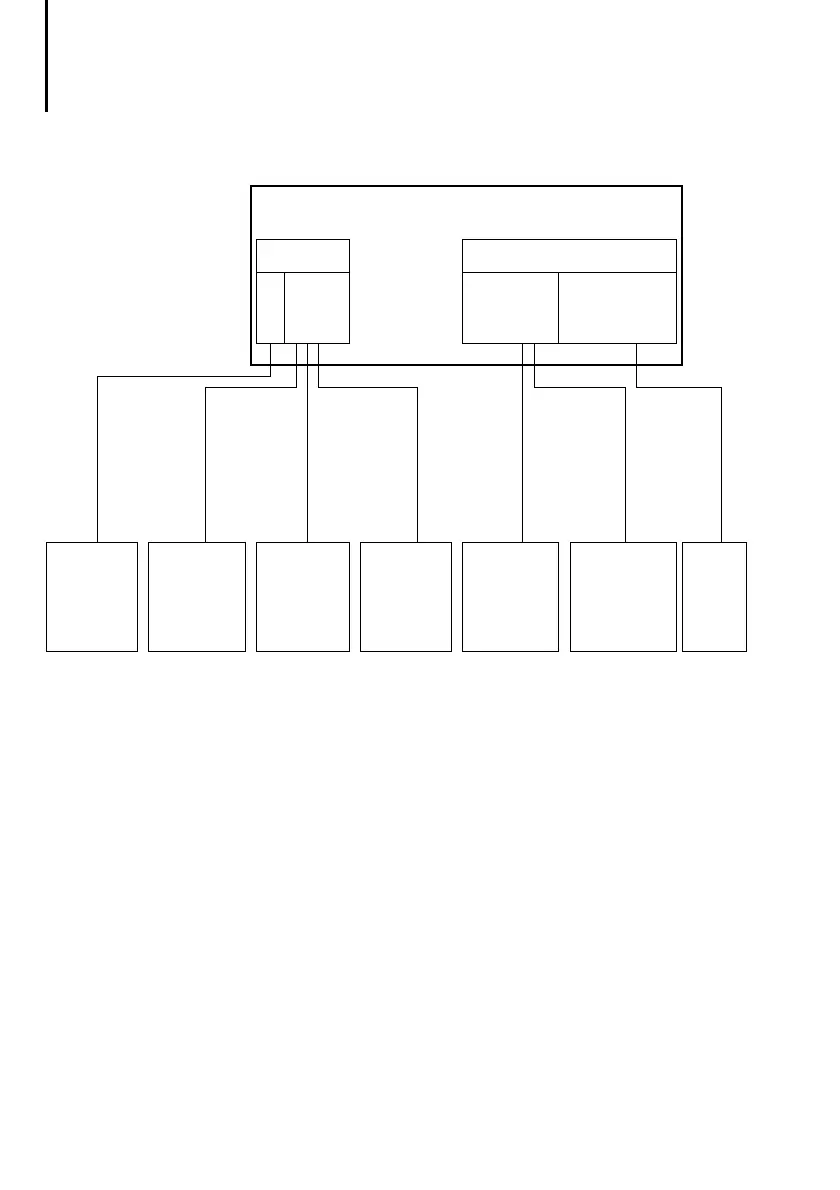

Communication cables Text operator panel (without PC/PRINTER PORT)
햲 Adapter, supplied as standard with ZB4-24A-KP1
cable.
햳 Other interface module can be connected in place of
the Suconet K interface module:
PROFIBUS-DP ZB4-504-IF1/-IF2
Siemens MPI ZB4-505-IF1/-IF2
DeviceNet ZB4-506-IF1
CANopen ZB4-507-IF1
For cable assignments of these interfaces, see section
“Engineering”. For an overview, see page 12.
RS 232/RS
485
PLC PORT MI4 AUX PORT
햲 Sucom A Suconet K
(ZB4-501-IF1)
Other
interface
modules
ZB4-24A-KP1 ZB4-2B3-KB1 ZB4-2B7-KB1 ZB4-2B3-KB2 ZB4-231-KB1 ZB4-233-KB2
햳
RS 232 RS 232 RS 232 RS 485 RS 485 RS 485
PC PS416-CPU PS4-150
PS4-200
PS4-300
PS416-CPU PS4-150
PS4-200
PS4-300
PS416 XC100/
200/600
Non-
Moeller
devices
