Moeller MI4 - Page 56

Operation
52
12/03 AWB-C27-1293GB
1) These models are secured with screw brackets and
have a fixed frame; the remaining models have a free
frame and are fastened with four screws.
c
b
a
g
h
e
f
d

i

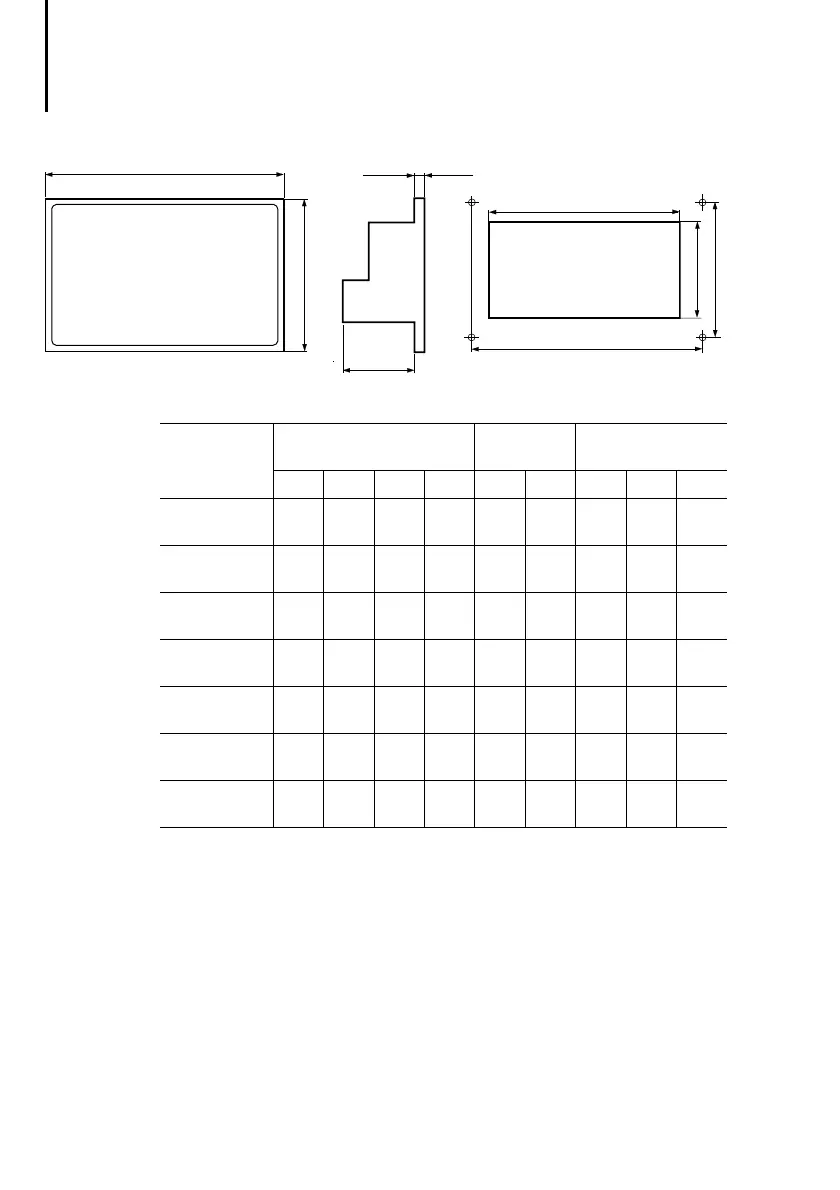

Panel Unit dimensions in mm Panel cutout
in mm
Drilling dimensions
[mm]
abcdef ghi
MI 4-100-KC1
1)
MI 4-101-KC1
1)
149 109 64 5 136 96 – – –
MI 4-100-KE1
MI 4-101-KE1
195 98 74 8 174 78 184 87 4.2
MI 4-110-KE1
MI 4-111-KE1
195 98 74 8 174 78 184 87 4.2
MI 4-130-KH1
1)
MI 4-131-KH1
1)
311 165 80 9 292 147 – – –
MI 4-151-KF1
MI 4-451-KF1
216 168 74 8 195 147 205 157 4.2
MI 4-151-TA1
MI 4-451-TA1
216 168 74 8 195 147 205 157 4.2
MI 4-161-TC1
1)
MI 4-471-TC1
1)
311 220 80 9 292 202 – – –
