Layout of the XC100
03/05 AWB2724-1453GB
16
CPU installation
X Insert the loop on the bottom of the CPU module into the hole
in the module rack .
X Press the top of the CPU module onto the module rack, until you
hear it click into position
.
Detaching the CPU
X Press in the catch .
X Keep the catch pressed in, and pull the top of the CPU module
forwards
.
X Lift up the CPU module and remove it .
h
Detailed information about the installation of the module
racks and XI/OC modules can be found in the manual
“Hardware and Engineering XI/OC Signal Modules“
(AWB2725-1452GB). Here you can also find further
information on the various types of module rack and the
individual slot assignments for the CPU and the XI/OC
signal modules.

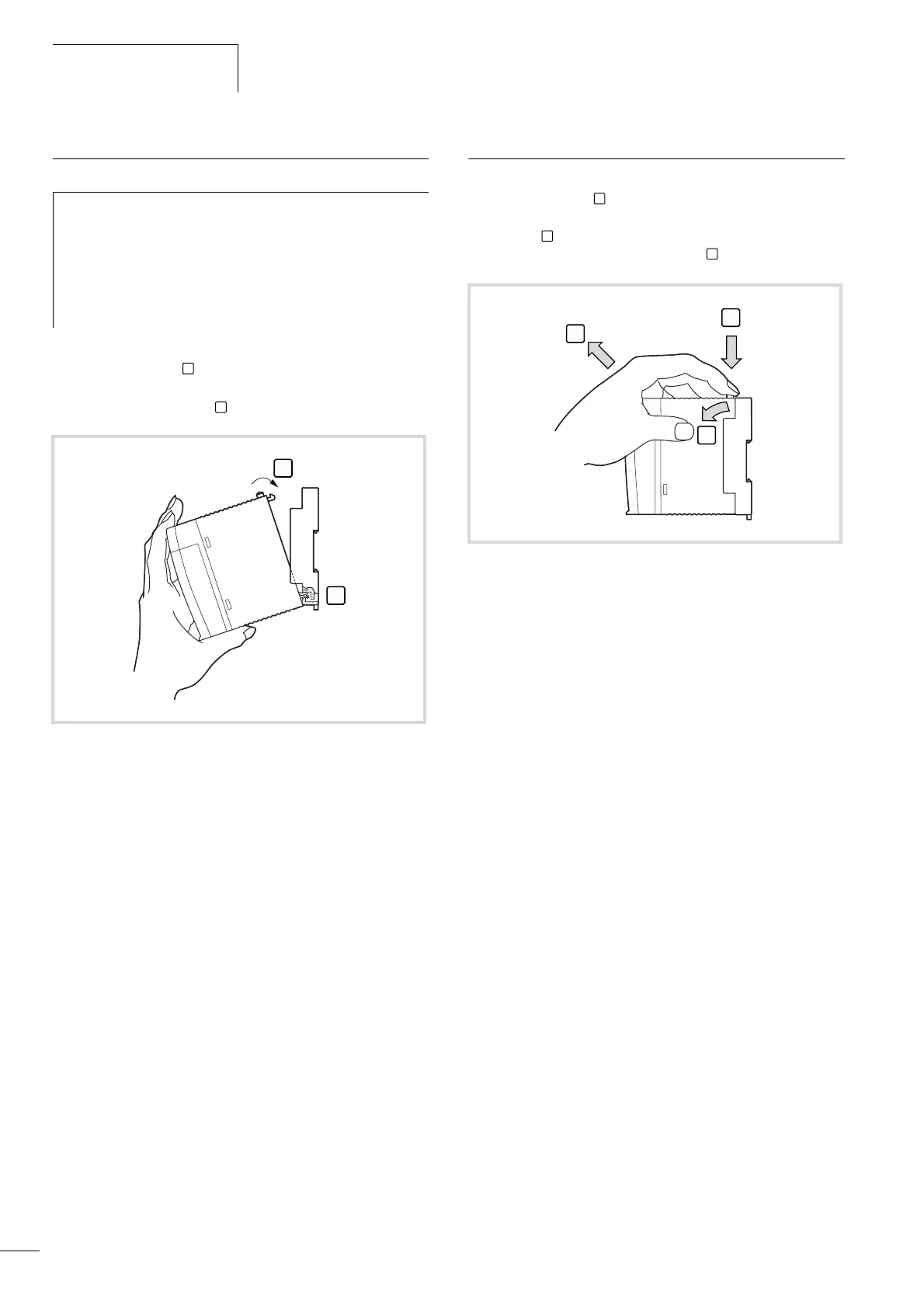

Figure 15: CPU installation
1
2
2
1
Figure 16: Detaching the modules
1
2
3
1
2
3
