Program processing and
system time
03/05 AWB2724-1453GB
26
Target system specific libraries
For the XC100 target system, the “Lib_Common” and
“Lib_CPU101” libraries are required.
Lib_Common
The basic functions which are required for the entire XC target
systems are contained in the “Lib_Common”. Furthermore, this
library contains the S40 typical function blocks which have been
adopted from the PS40 system to the XSoft system.
Further information concerning the “STANDARD.lib” and
“XS40_MoellerFB.lib” libraries can be found following this
paragraph. More detailed explanations of the other libraries are
not undertaken; they are explained in the “XSoft” (AWB2700-
1437GB) manual and/or in the Library/Online help of the “XSoft”
programming system.
Standard.lib
The IEC function blocks and standard functions are contained in
the Standard.lib.
The description of the functions and the function blocks can be
found in the “XSoft” (AWB2700-1437GB) manual and in the
Library/Online help of the “XSoft” programming system.

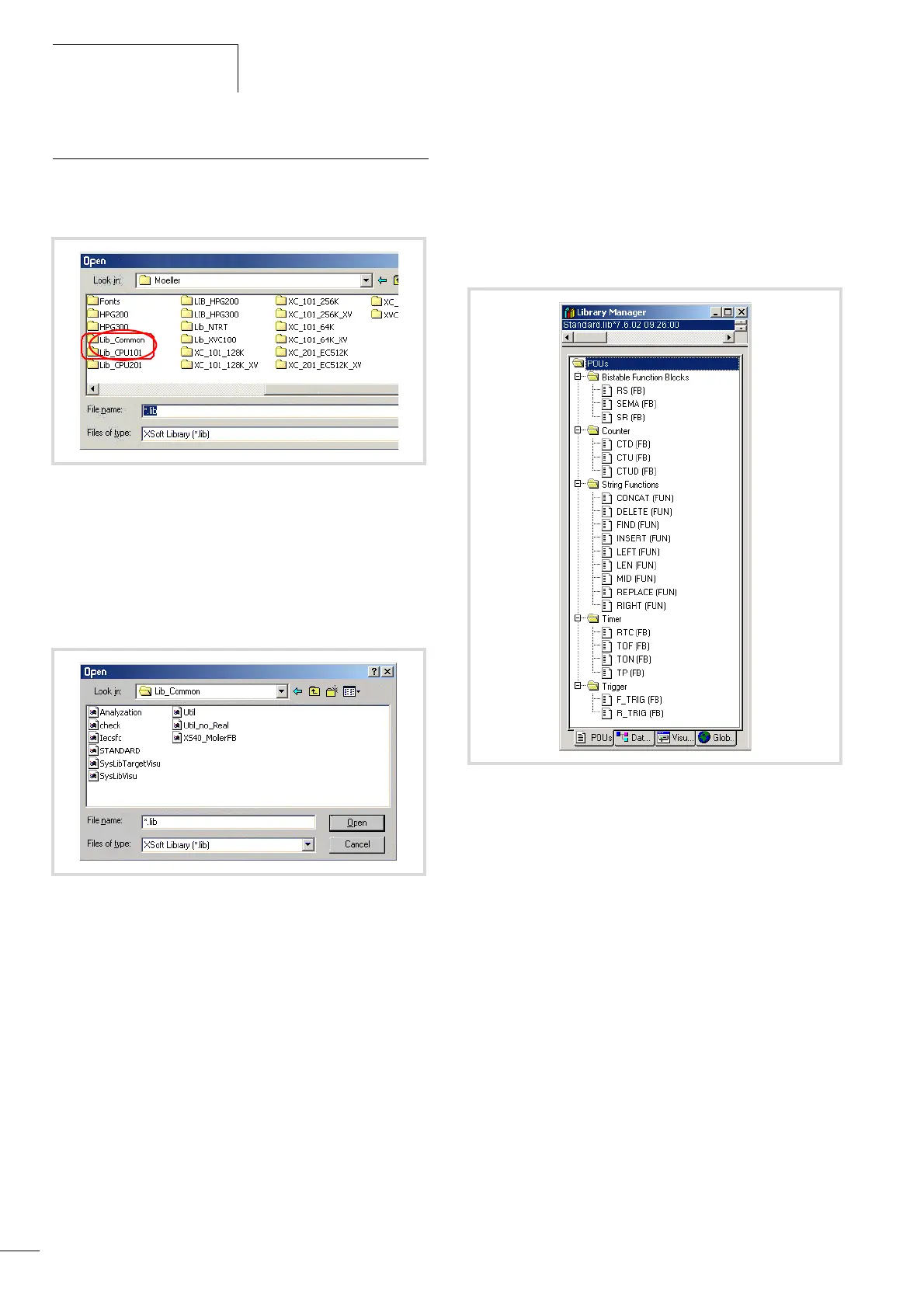

Figure 27: Target system specific libraries
Figure 28: Files of the “Lib_Common”
Figure 29: Function blocks and functions of the “Standard.lib”
