-10-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens

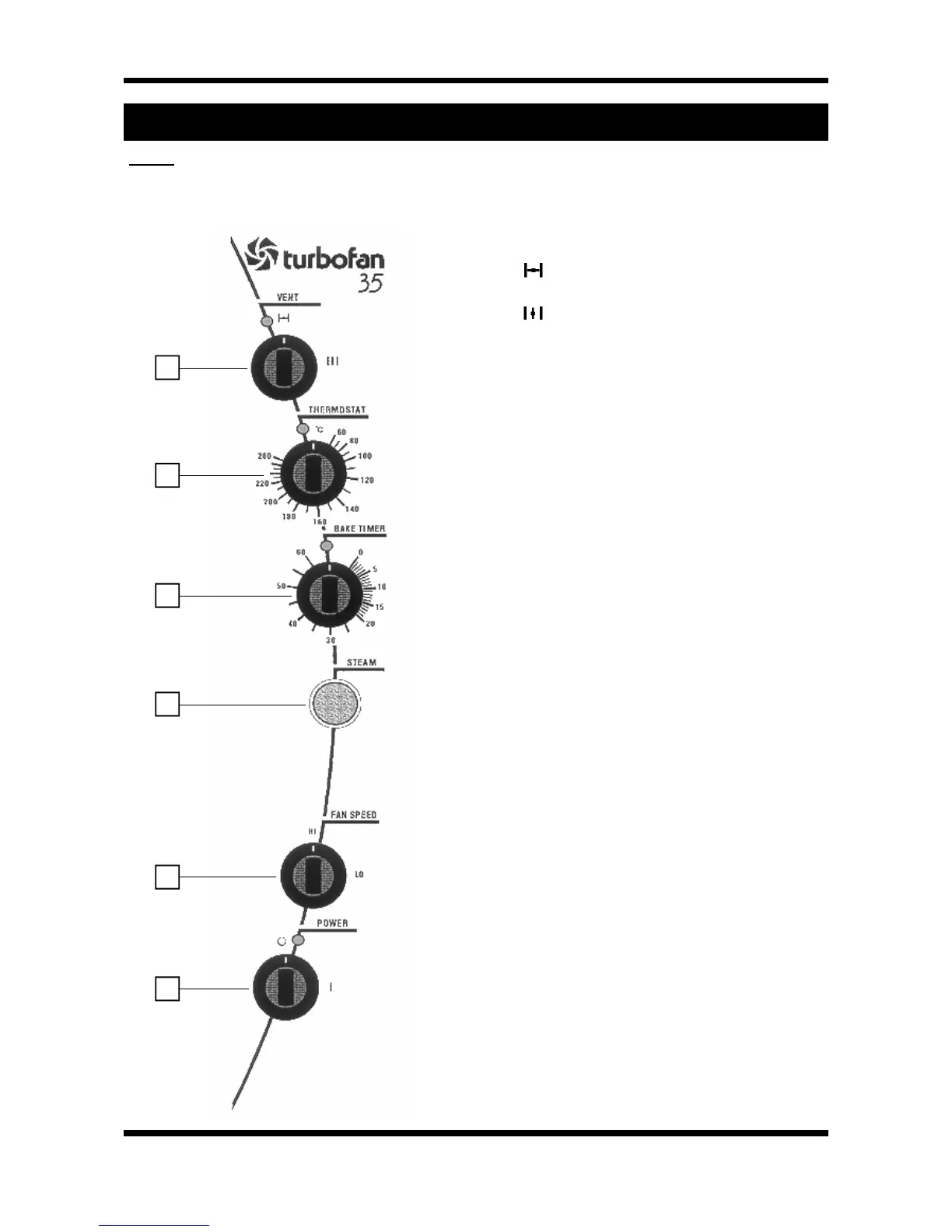

3.1 DESCRIPTION OF CONTROLS
3. OPERATION
NOTE: A full user’s operation manual is supplied with the product and can be used for further referencing
of installation, operation and service.
1. VENT
Oven vent closed (incorporates over-
pressure relief when closed).
Oven vent open (light illuminates).
2. THERMOSTAT
Temperature range 60 - 280°C / 100 - 550°F.
(Light illuminates when elements are cycling ON
to maintain set temperature).
3. TIMER
1 Hour bake timer.
(Light illuminates when “time up” (0) reached, and
buzzer sounds).
4. STEAM BUTTON
Push button to activate automatic steam dose
into oven chamber.
(Light illuminates when button activated for
duration of steam cycle).
5. FAN SPEED
HI Full fan speed (Star point connection on
motor).
LO Half fan speed (Delta point connection
on motor).
6. POWER
O UNIT IS OFF
I UNIT IS ON (Light illuminates when
switched to this position).
Oven lights operate continuously.
Fan starts after 10 seconds when door
closed.
1
2
3
4
5
6
