Moffat Turbofan E35 - Control Panel Assembly

-52-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens

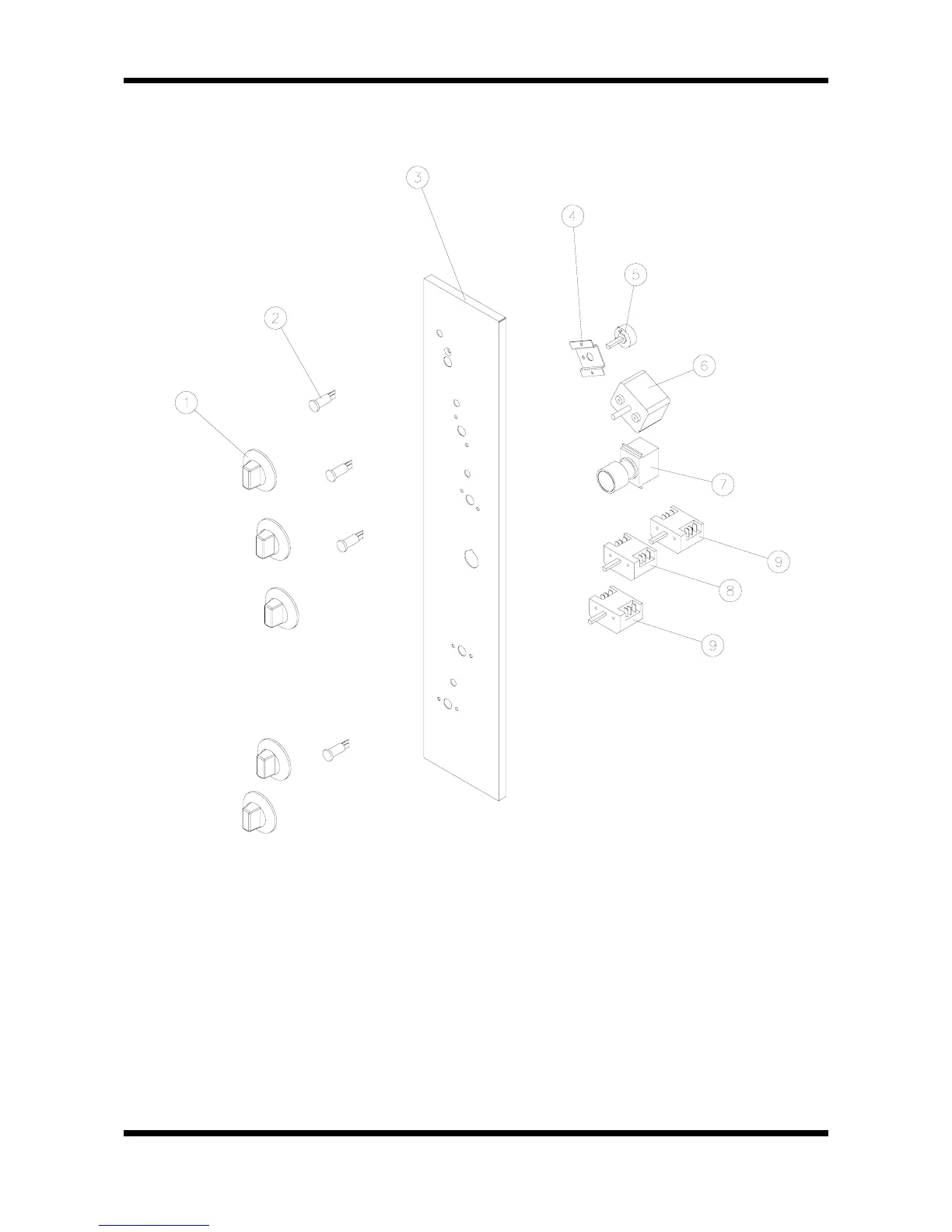

11.2 CONTROL PANEL ASSEMBLY
Pos Part No. Description
1 020823 KNOB (VENT)
020848 COMPRESSION RING
2 020849 NEON INDICATOR
3 004705 CONTROL PANEL ºF
004706 CONTROL PANEL ºC
4 020976 POTENTIOMETER BRACKET
5 020985 POTENTIOMETER
6 011760 TIMER - 60 Min
7 020893 STEAM SWITCH ASSEMBLY
8 020888 SELECTOR SW. (FAN SPEED)
9 020822 SELECTOR SWITCH (FAN SPEED & POWER)
