Moffat Turbofan E35 - Light Bulb; Glass; Light Fitting; Lighting Transformer; Thermostat Dial

-24-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens
Bottom Light Connector
Block
Top Light Connector
Block
Four Screws
Two Screws
Thermostat Nut
Two Screws

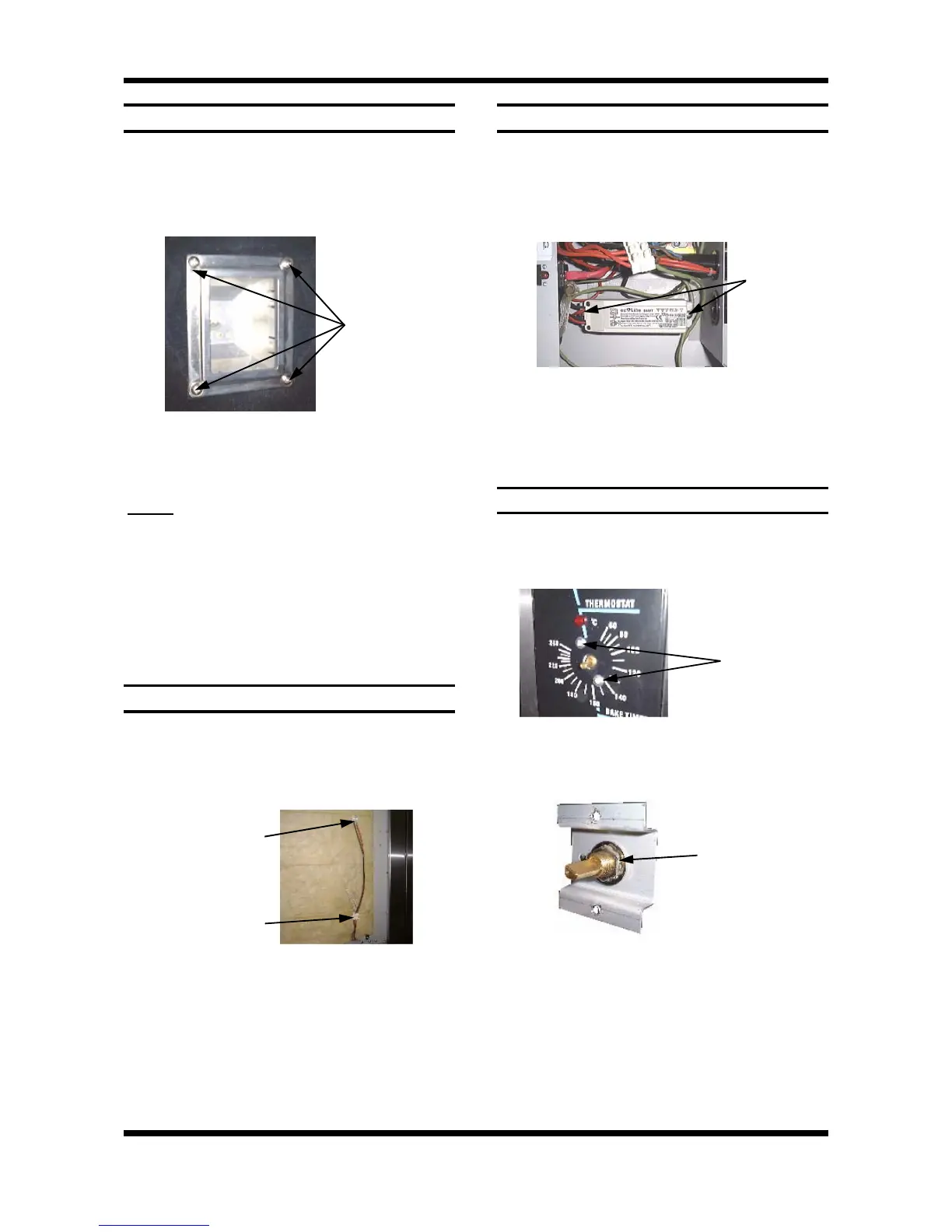

6.3.4 LIGHT BULB / GLASS
1) Remove LH side rack from oven.
2) Undo the four screws holding light face
surround on and remove the glass and
surround. Check the seal and replace if
necessary.
6.3.7 THERMOSTAT DIAL
1) Pull knob off front of thermostat.
2) Open control panel (refer 6.2.1) and undo two
screws securing thermostat bracket.
3) Transfer wires to new thermostat.
4) Undo nut holding thermostat to bracket
6.3.5 LIGHT FITTING
1) Remove glass and surround (refer 6.3.4).
2) Remove LH side panel (refer 6.2.).
2) Disconnect wires at connector block (inside
LH side panel).
Figure 6.3.7
3) Pull bulb straight out of fitting, towards back
of oven (taking care not to break glass).
Replace bulb.
NOTE:
The bulb is a halogen lamp, so do not
touch the glass of the bulb while pushing
straight into light fitting (use an oil free cloth
or paper towel).
4) Replace seal, glass and surround, securing
with the screws (do not over tighten).
Figure 6.3.8
3) Open fibreglass to expose lamp fitting.
4) Push in tabs at back of light fitting from
outside oven, pivot into oven and remove.
5) Re-assemble in reverse order.
6.3.6 LIGHTING TRANSFORMER
1) With R/H service panel removed (refer 6.2.2)
transfer wires to new transformer with the aid
of a screw-driver.
2) Remove one screw and loosen the second
screw securing the transformer.
Figure 6.3.10
Figure 6.3.11
3) Remove the old transformer and secure the
new transformer with the screws.
Figure 6.3.9
