Moffat Turbofan E35 - Control Panel; Service Panel (RH Side Panel); Baffle; Side Panel (LH Side)

-22-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens
Four Nuts
Four Screws
One Screw

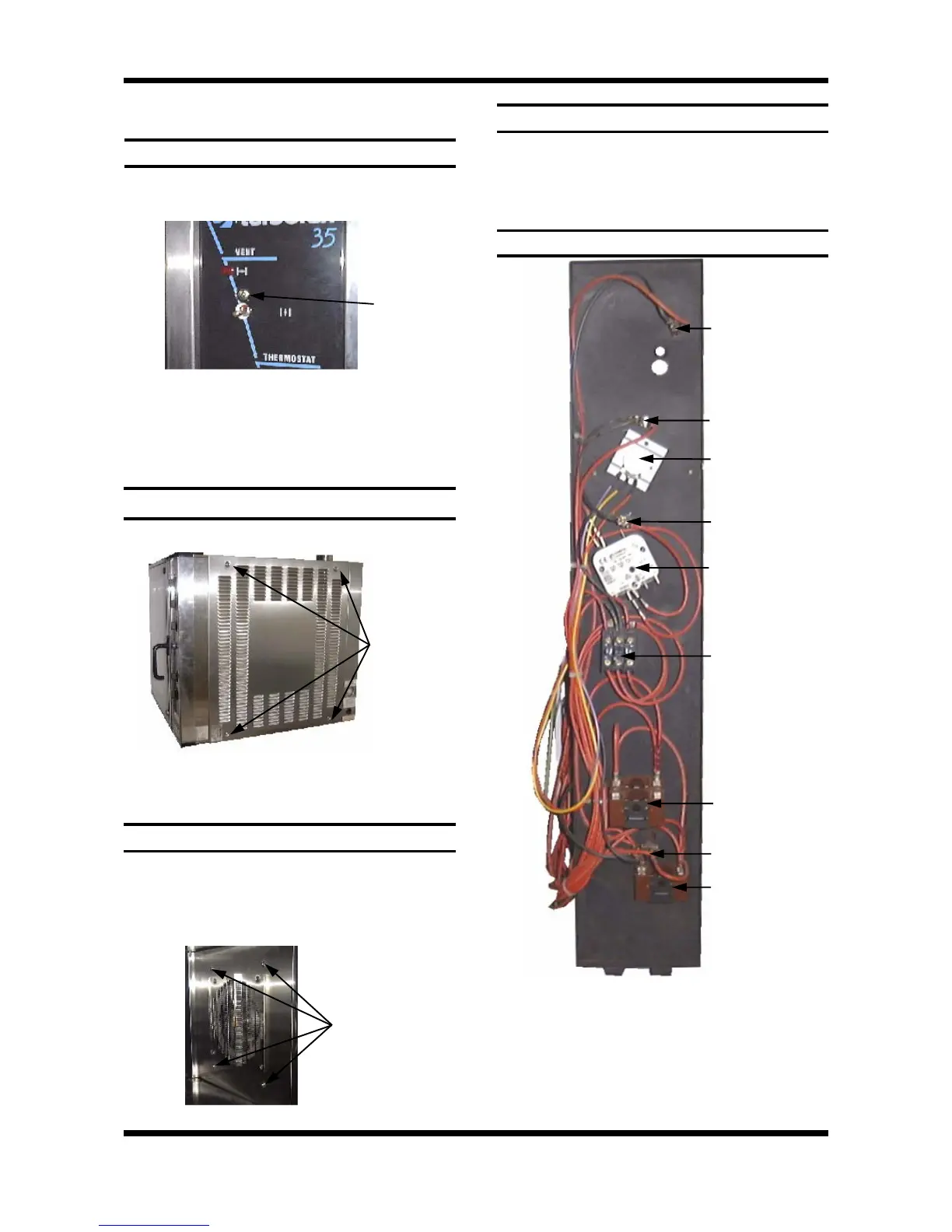

6.2 ACCESS
6.2.1 CONTROL PANEL
1) Remove vent knob by pulling straight off.
2) Remove screw above vent shaft.
1) Undo the 4 screws holding panel.
6.2.2 SERVICE (RH SIDE) PANEL
1) Remove racks, trays and RH side rack.
2) Undo the 4 nuts holding the baffle.
3) Pull panel off studs, pull bottom into middle of
oven and remove panel.
6.2.3 BAFFLE
3) Panel is now free to hinge at bottom, take
care not to drop panel or pull wires out.
(support panel while working with panel
open).
Figure 6.2.1
2) Remove panel.
Figure 6.2.2
6.2.4 SIDE PANEL (LH SIDE)
1) Undo the 4 screws holding panel.
2) Remove panel.
Figure 6.2.3
Power Switch
Heating Indicator
Thermostat
Bake Time Up
Indicator
Power Indicator
Steam Switch
Fan Speed Selector
Switch
Bake Timer
Figure 6.2.4
Vent Indicator
6.2.5 CONTROL PANEL—REAR
