Moffat Turbofan E35 - Door Outer Glass; Door Inner Glass; Door Catches; Door Handle

-30-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens
Two Screws
Two
Screws
Two
Screws

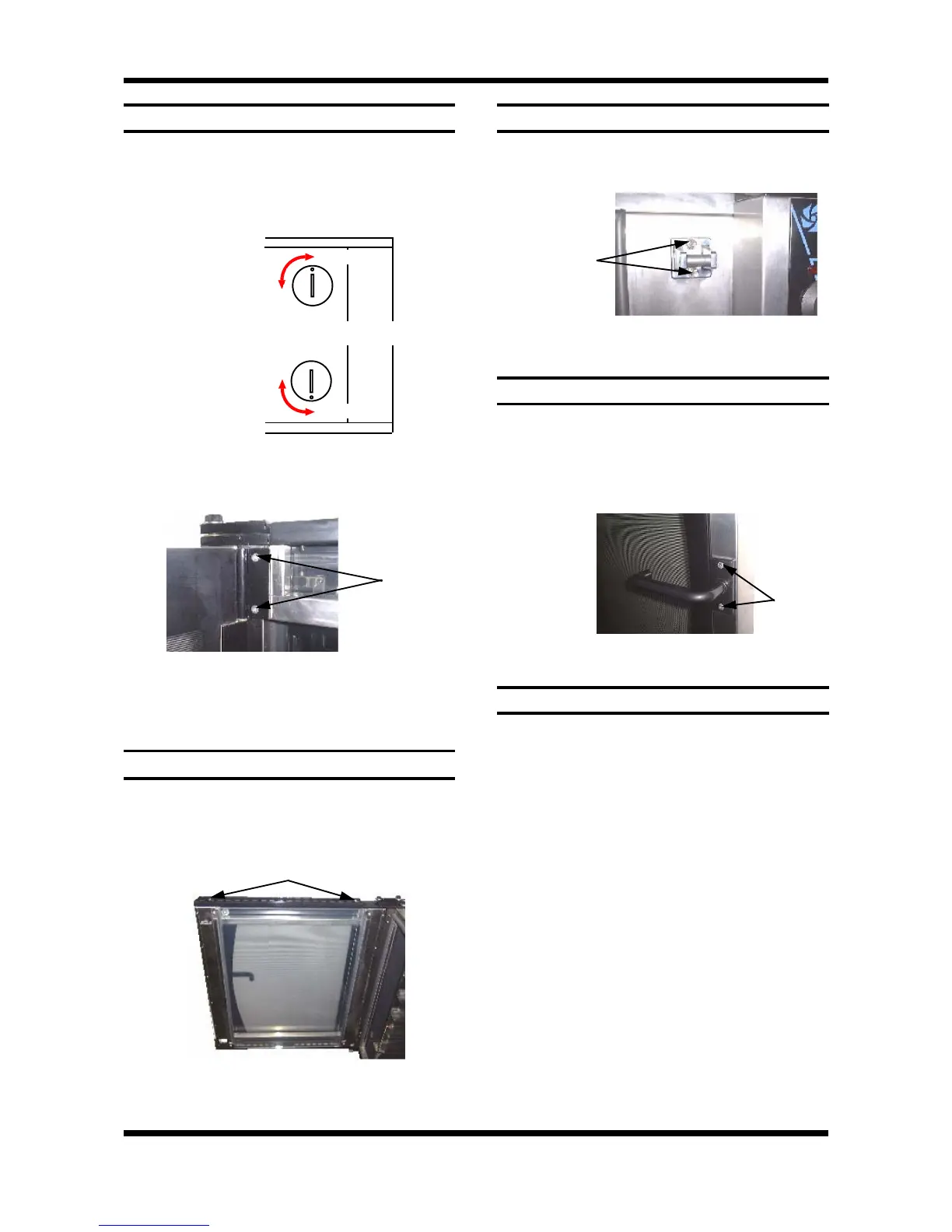

6.3.25 DOOR OUTER GLASS
1) Ensure the door is locked shut
2) With a screwdriver, coin, or other suitable
device, 1/4 turn the outer glass locks to
release the outer glass and allow it to be
hinged open.
Top
Locked
Bottom
Unlocked
Unlocked
Locked
Figure 6.3.37
3) Undo the two hinges (two screws per hinge)
and remove glass assembly.
Figure 6.3.38
4) Replace and re-assemble in reverse order.
6.3.26 DOOR INNER GLASS
1) Open the oven door.
2) Remove the top door trim (two screws, one
each end of trim). Take care not to drop the
glass.
1) Open the oven door.
2) Undo two screws and pull catch straight out.
6.3.27 DOOR CATCHES
Figure 6.3.39
Two Screws
3) Lift and remove glass assembly. Replace
and re-assemble in reverse order.
Figure 6.3.40
1) Open the oven door.
2) Remove the two screw caps covering the
screws on the door handle.
3) Undo two screws securing handle, and pull
straight out.
6.3.28 DOOR HANDLE
1) Remove outer glass (refer 6.3.24) and door
handle (refer 6.3.27) leaving door open.
2) Drill out the six rivets (refer figure 6.3.36, E)
on the inside of the RH door trim (A) using a
3.5mm drill.
3) Remove four screws (F) on outside of RH
door trim (A).
4) Remove trim (rotate toward inside of door).
5) Remove four screws (J) from RH inner door
trim (B), and remove trim. (Loosen bottom
trim screw (K) if required).
6) Remove two split-pins (G) from the
connecting rod (H) on latch (C).
7) With handle in open position, push latch
mechanism (C1) away from connecting rod
(H) and remove the connecting rod.
8) Remove two screws (I) securing latching
mechanism (C), and remove.
9) Replace and reassemble in reverse order.
6.3.29 DOOR CATCH MECHANISM
Figure 6.3.41
