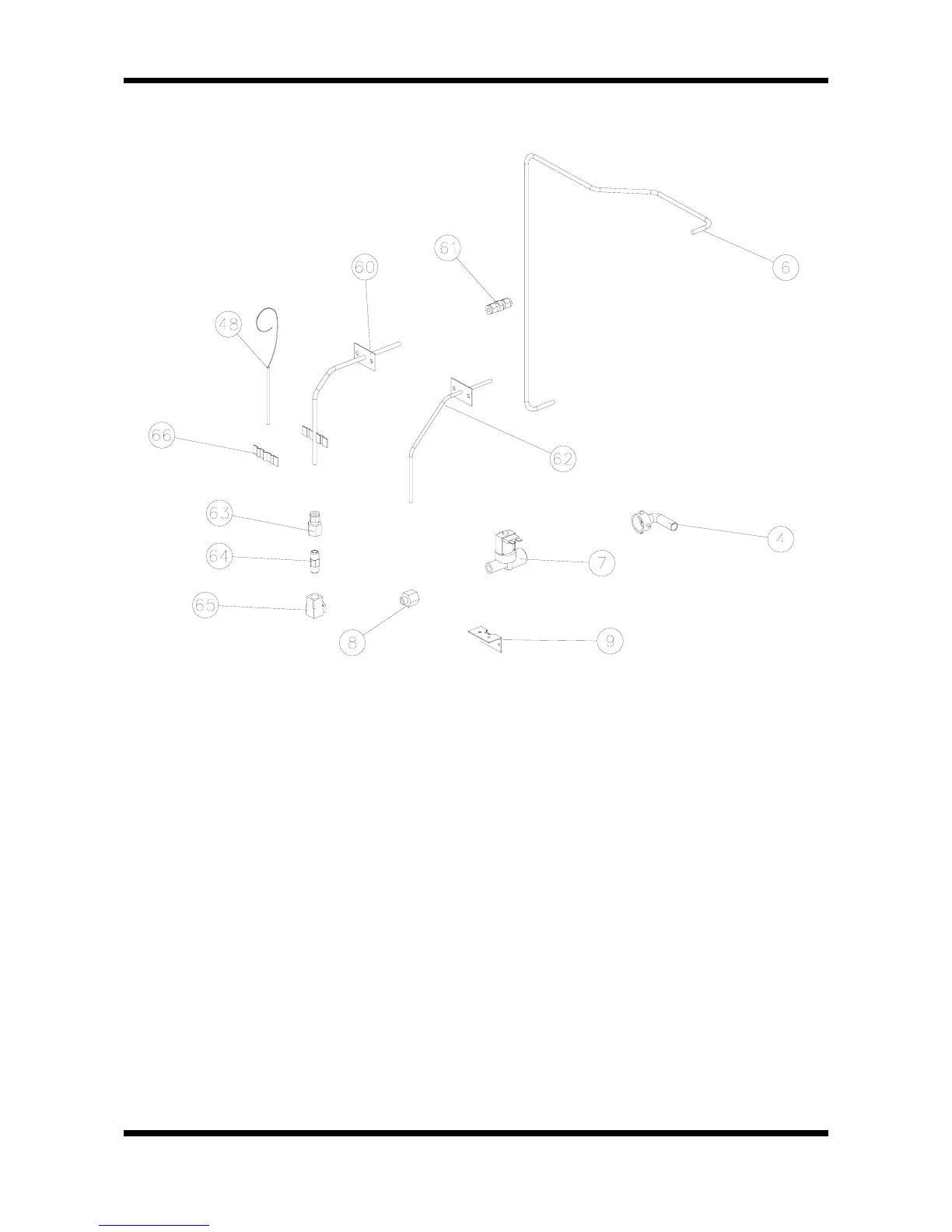

11.1.3 WATER INJECTION ASSEMBLY
Pos Part No. Description
4 021526 WASHER INLET ELBOW (c/w WASHER)
6 020860 WATER SUPPLY TUBE (E35-xxx-26 only)
020862 WATER SUPPLY TUBE (E35-xxx-30 only)
7 020851 WATER SOLENOID
8 020869 CONNECTOR -
3
/
8
”F x
1
/
4
” COMPRESSION
9 020991 MOUNTING BRACKET
48 019369K OVERTEMP THERMOSTAT KIT
013506 GLAND WASHER
013507 GLAND BUSH
013508 GLAND NUT
020887 SPLIT GLAND NUT ASSY (c/w Split nut, Seal & Washer)
020892 GLAND BUSH MOUNTING PLATE
60 020857 STEAM TUBE WA
61 020861 COMPRESSION UNION
1
/
4
"
62 020883K PROBE KIT
020856 GASKET
63 016794 MALE CONNECTOR (FROM S/N 261985)
020855 FEMALE CONNECTOR (TO S/N 261984)
64 020852 CHECK VALVE (TO S/N 261984)
65 020853 SPRAY BODY - WHIRLJET
020856 GASKET
66 020890 PROBE SECURING BRACKET
