Moffat Turbofan E35 - STAINLESS STEEL DOOR ASSEMBLY

-59-
Revision 7/F3512
© Moffat Ltd, January 2005
E35 Turbofan Ovens
Pos Part No. Description
1 024103 OUTER GLASS SEAL
2 024079 DOOR OUTER PANEL WA
3 004892 DOOR FRAME WA
4 020738 HINGE BUSH
5 024098 COVER SUPPORT BRACKET
6 004893 DOOR COVER TOP
7 024099 DOOR TRIM INNER LH
8 024083 DOOR INNER PANEL WA
9 024090 GLASS MODULE
10 024104 INNER GLASS SEAL
11 024087 GLASS CLAMP WA
12 024101 HANDLE SUPPORT
13 047100 NUTSERT 3/16”
14 020752 HANDLE GEAR RH
15 020833 DOOR BOLT CONNECTING ROD
16 047308 SPLIT PIN 32 x 3.2
17 020753 BOLTING ELEMENT
18 004894 DOOR COVER BOTTOM
19 041409 SCREW M5 x 25 MUSH SLOT
20 045410 WASHER M5 SPRING
21 044017 NUT M5 HEX
22 041045 SCREW 3/8 x 8 TRUSS
23 041436 SCREW 3/4 x 3/16 SD POZI BLACK
24 090005 SILICONE RTV CLEAR
25 090402 FIBREGLASS
26 044206 NUT SPIRE M5
27 041411 SCREW M5 x 16 PAN SLT 304 SS
28 024242 WINDOW VENT
1
2
3
13
23
7
8 9 1110
12
13
14
15
17
18
5
4
16
26
5
6
23
13
28
28

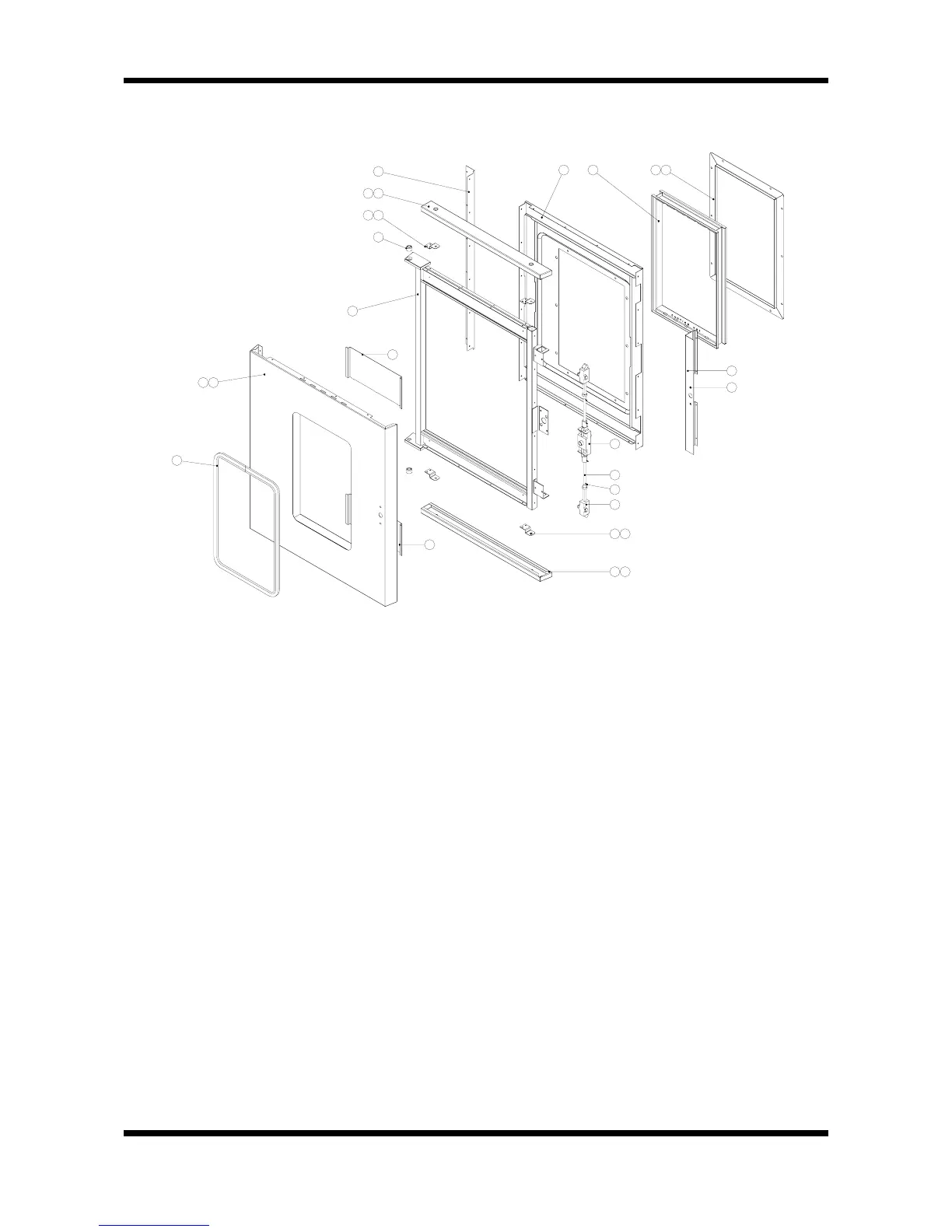

11.4.2 STAINLESS STEEL DOOR ASSEMBLY
