7. Do the following to connect the humidifying column to the instrument:
a. Connect the tubing with the white 1 band to the OUTWHITE 1 port.
b. Connect the tubing with the yellow 2 band to the OUTYELLOW 2 port.
c. Connect the tubing with the red 3 band to the HUMIDITY IN 3 port.
d. Connect the electronics cable to the COM HEATING HUM COLUMN port.
8. Do the following to connect the gas cylinder to the instrument:
a. Connect the tubing from the CO
2
source to the CO
2
INport.
b. Connect the tubing from the compressed air source to the COMPRESSED AIR
(CLEAN)INport.
c. If you will be performing hypoxia experiments, connect the tubing from the N
2
source
to the N
2
INport.

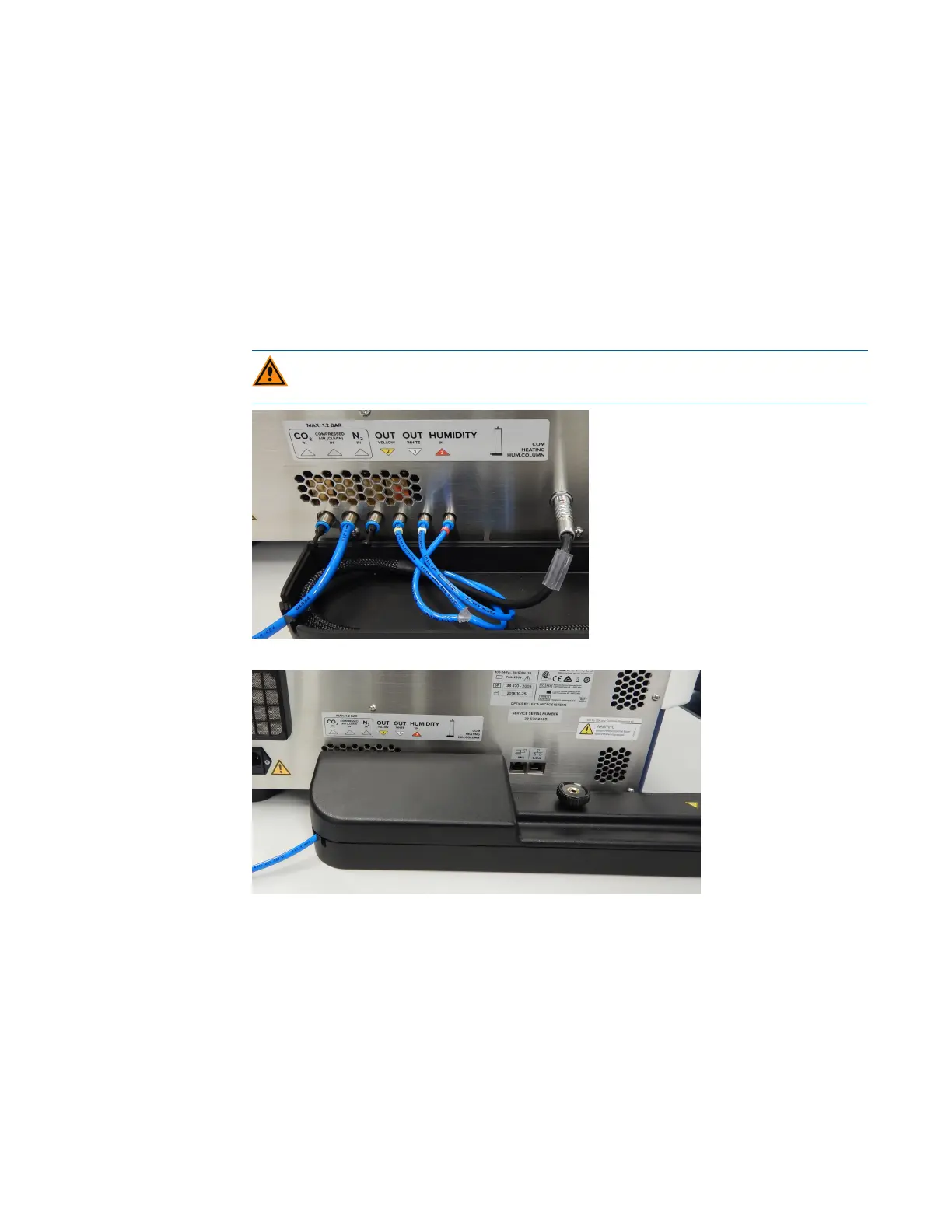

CAUTION! For any port not connected to a gas cylinder, close off the port with one
of the included blind plugs (as shown below).
9. Replace the top piece of the environmental control tray and tighten the screw.
