4. Function and operation description
4.1 Parameterisation software PM-TOOL:
Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The
connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-
side the connection happens via an USB plug.
System requirements: PC incl. USB interface
Software: Windows XP, Windows VISTA
With this tool the device configuration can be generated, omitted and saved on the PC. The
parameters can be changed via the easy to handle program surface, whereat the operating
mode and the possible selection options can be preset by the program.
CAUTION!
During parameterisation with connected measuring signal, make sure that the measuring signal
has no mass supply to the programming plug. The programming adapter is galvanic not
isolated and directly connected with the PC. Via polarity of the input signal, a current can
discharge via the adapter and destroy the device as well as other connected components!

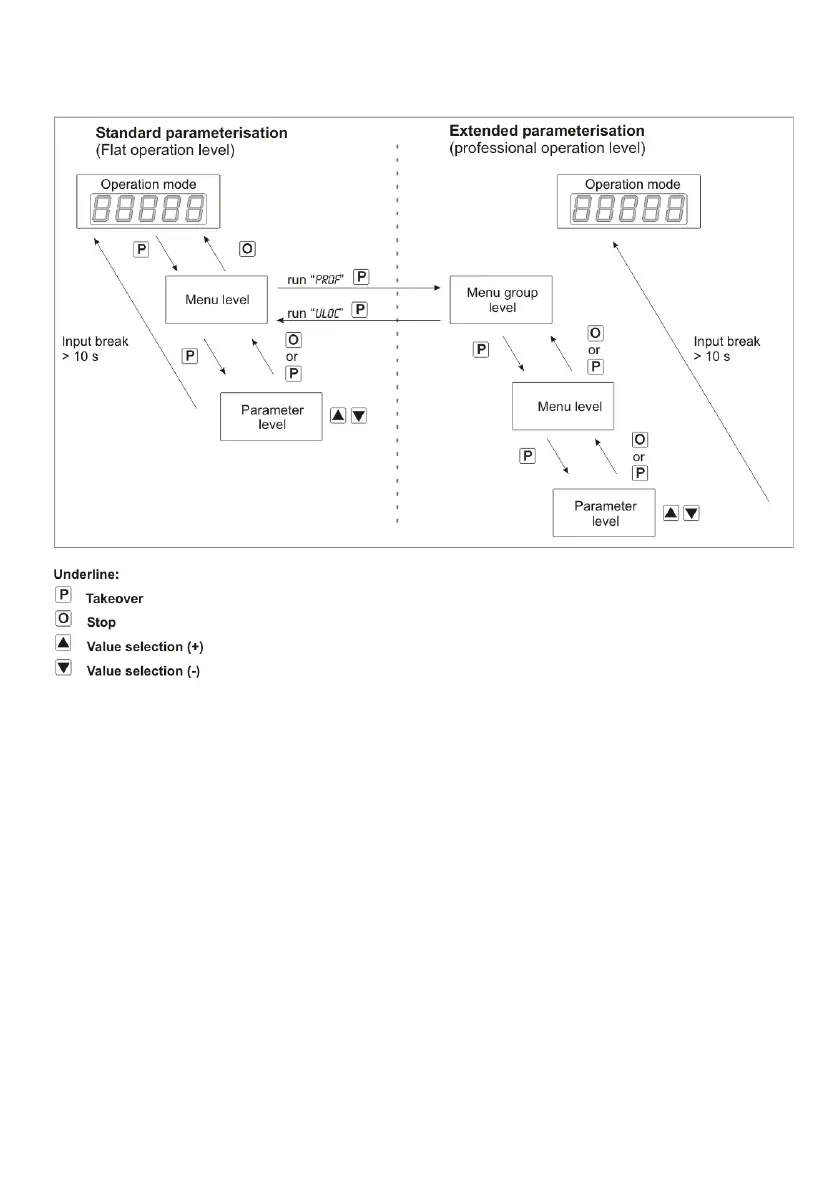

Function chart:
