8. Sensor calibration offset / final value
The device is equipped with a semi-automatic sensor calibration ( / ). A switching
output operates the trimming resistor, which exists in some sensors. An adjustment of offset
and final value takes place, after which the sensor can be used directly. Depending on
parameterisation, the calibration can be realized via the 4th key or via the digital input. It is
possible to key during the calibration steps. So, reference signals can be connected
manually. However the calibration will be interrupted after 30 seconds.

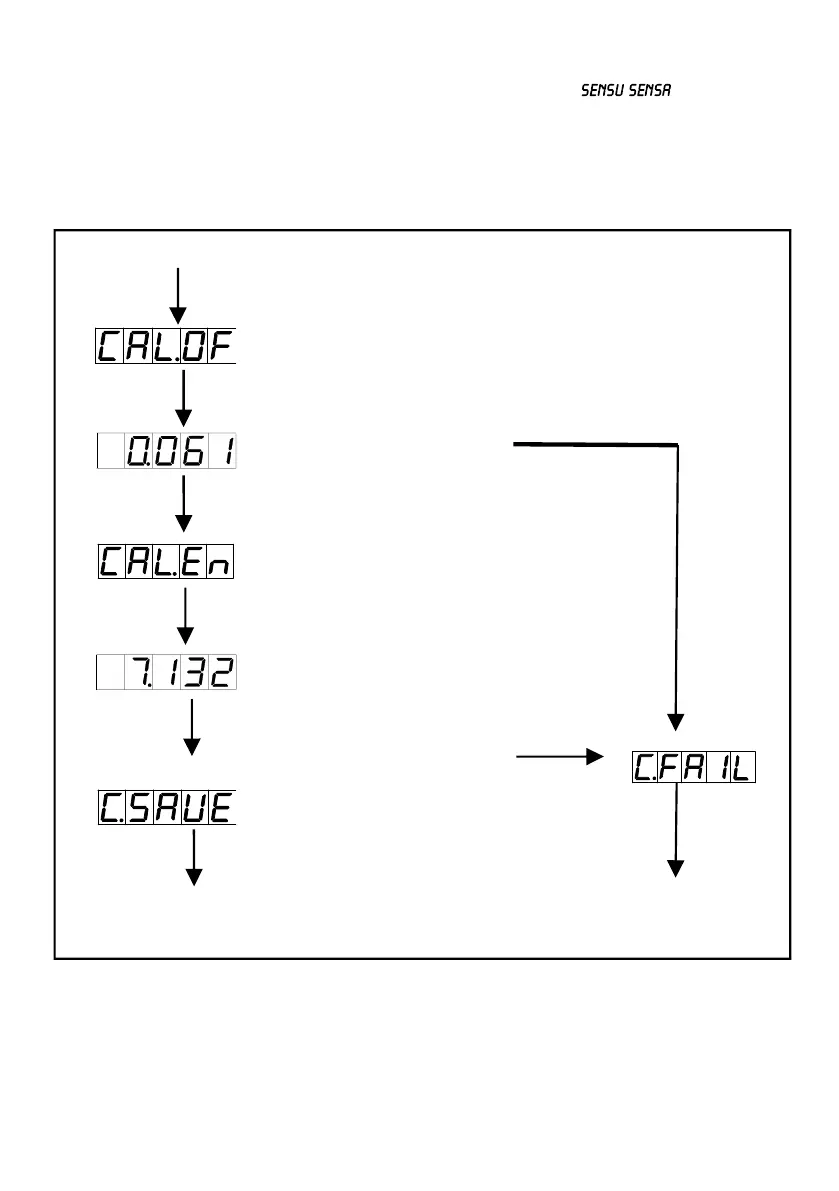

8. Sensor calibration offset / final value
Press actuator for minimum 3
seconds.
For minimum 1 measuring cycle,
minimum 1s or maximum per actuator.
Current measuring range value,
e.g. 0.061
For minimum 1 measuring cycle
or with actuator.
For minimum 1 measuring cycle,
minimum 1s or maximum per actuator.
Current measuring range value.
Switch-off/switch-on optional
switching output, e.g. 7,132
For minimum 1 measuring cycle,
minimum 1s or maximum per
actuator.
Optional: switch-off switching output and
display for minimum 1 measuring cycle or
minimum 1s holding time.
Back to regular operation mode.
For calibration
problems or 30
seconds holding time.
Back to regular operation mode,
after 1s or 1 measuring cycle.
Activate optional switching
output.
For calibration problems or
30 seconds holding time.
