2. Assembly
2
2. Assembly
Please read the Safety advices on page 36 before installation and keep this user manual for
future reference.

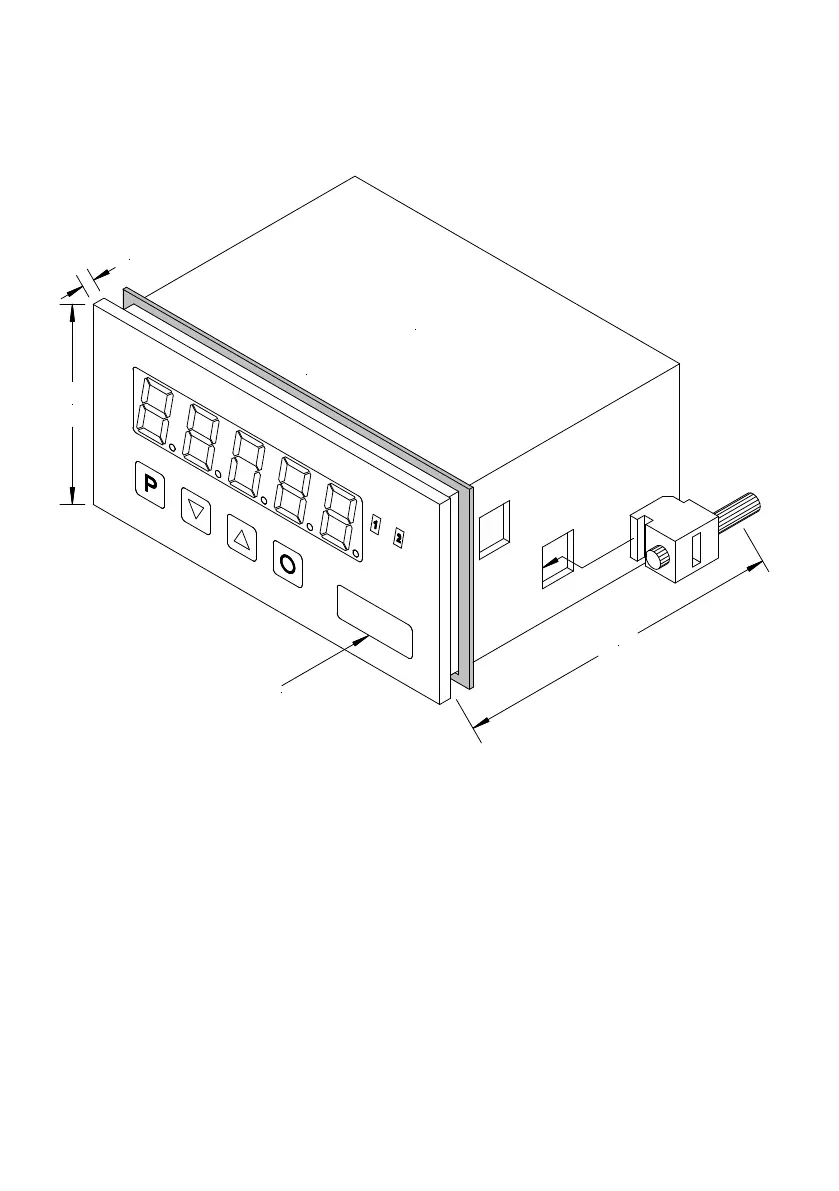

Seal
i
ng
48,0
3,0
M
2
Gap for physical unit
8
9
,
0
1. After removing the fixing elements, insert the device.
2. Check the seal to make sure it fits securely.
3. Click the fixing elements back into place and tighten the clamping screws by hand. Then
use a screwdriver to tighten them another half a turn.
CAUTION! The torque should not exceed 0.1 Nm!
The dimension symbols can be exchanged before installation via a channel on the side!
