montwill M2 - Page 7

4
3. Electrical connection

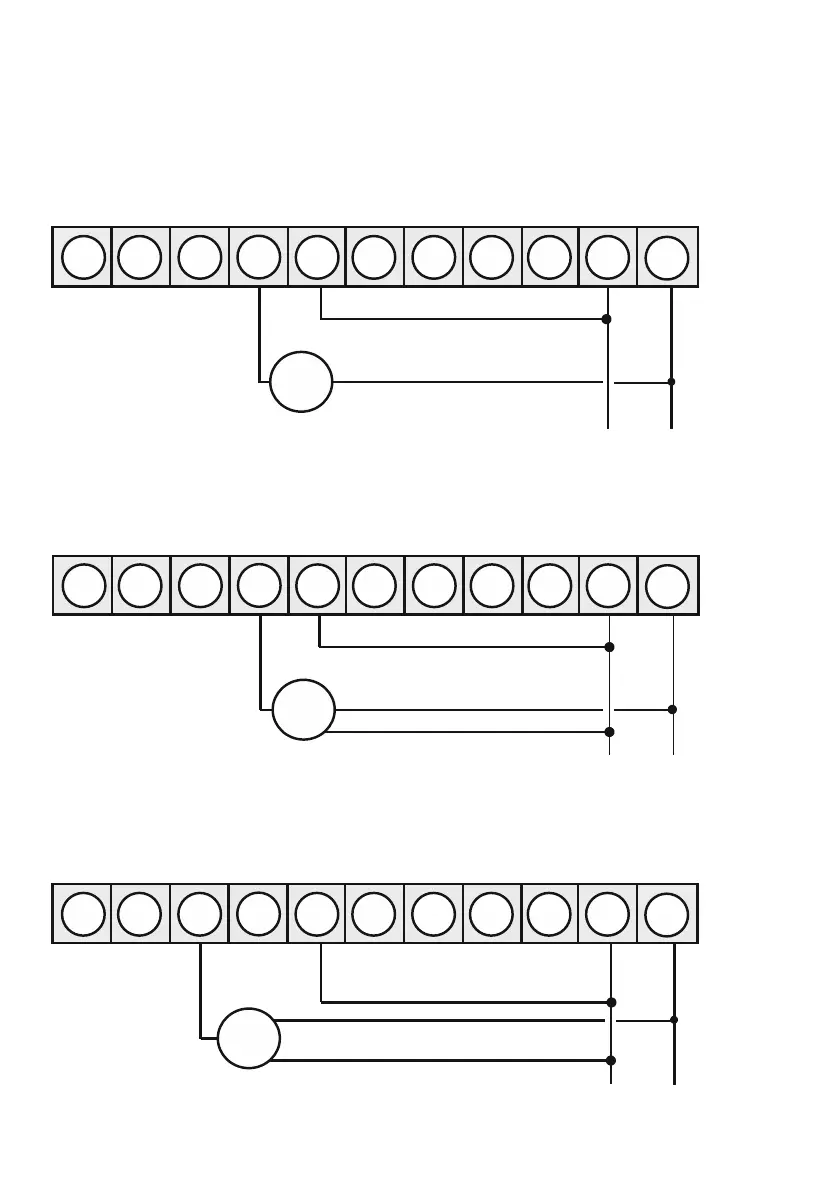

Connection examples:
Below please find some connection examples, which demonstrate some practical
applications: Devices with current inputs / voltage inputs, without sensor supply.
10-30 VDC
_
M2 in combination with a 3-wire-sensor of 0-10 V
+
+
Transmitter
1 2 3 10
11
9
4 5 6 7 8
_
10-30 VDC
_
M2 in combination with a 2-wire-sensor of 4-20 mA
+
1 2 3 10 119
4 5 6 7 8
-
+
Transmitter
10-30 VDC
_
M2 in combination with a 3-wire-sensor of 0/4-20 mA
+
+
Transmitter
1 2 3 10 1194 5 6 7 8
_
