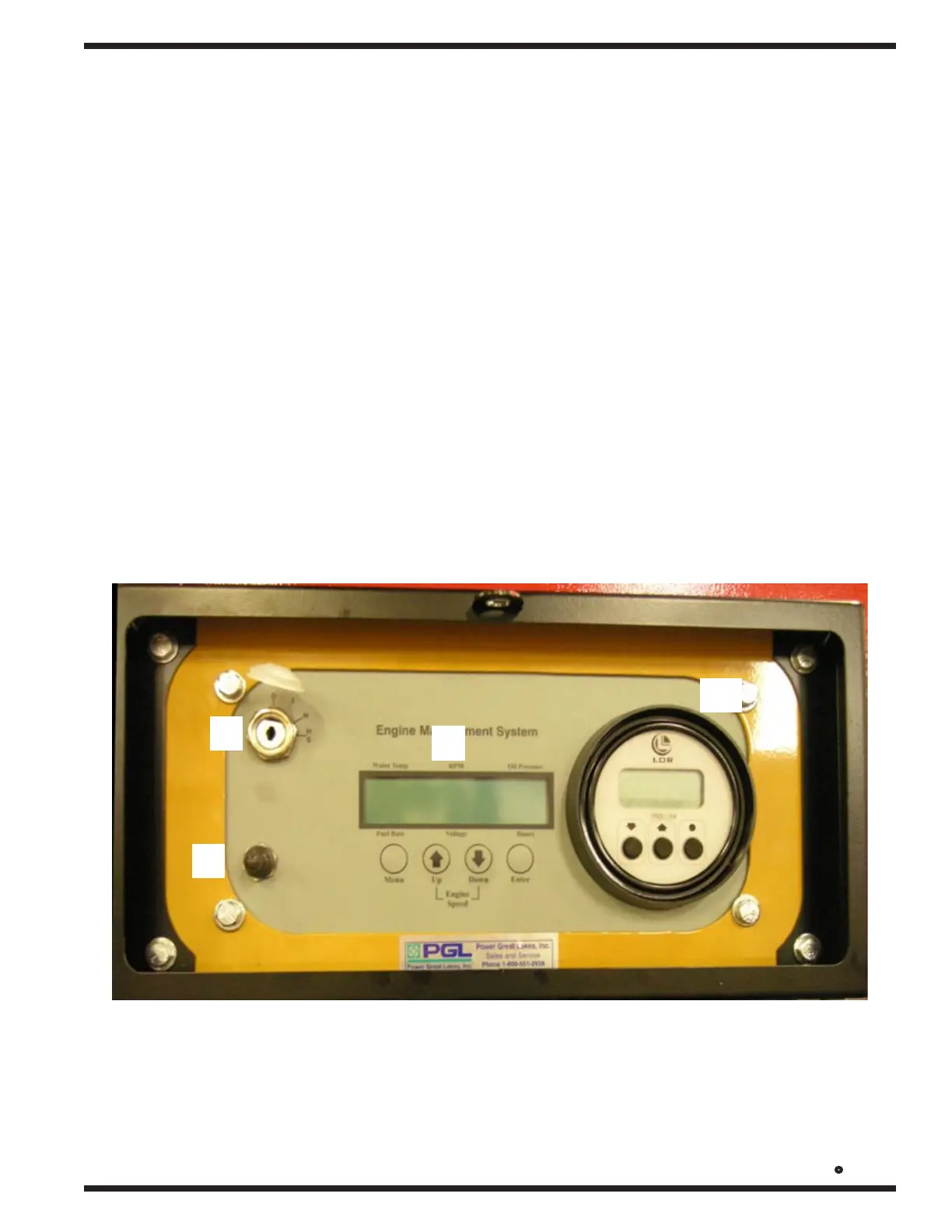

(Typical Control Panel)
Actual control panel layout and controls are determined by engine type and model.
Please check the Engine Operator Manual supplied with your machine for individual func-
tion.
KEY SWITCH -
Used in conjunction with the permissive start button to start engine.
DIAGNOSTIC SCREEN - Refer to engine manual for operating instructions.
TACHOMETER\SPEED SWITCH -
The tachometer measures the revolutions per min-
ute of the power unit.
Refer to LOR for speed switch setting procedures.
CAUTION: Never let engine RPM drop below 2100 RPM when operating.
HOUR METER - An hour meter registers the amount of time the electrical power is be-
ing sent to the power unit.
OVERRIDE SWITCH - Push this switch down to bypass the Tachometer.
Push up for normal function.
NOTE: If the switch is in the middle it will shut down the feedworkds system.
1.
2.
3.
4.
5.
ENGINE CONTROLS
5
1
2
3,4
