1-9
l.6

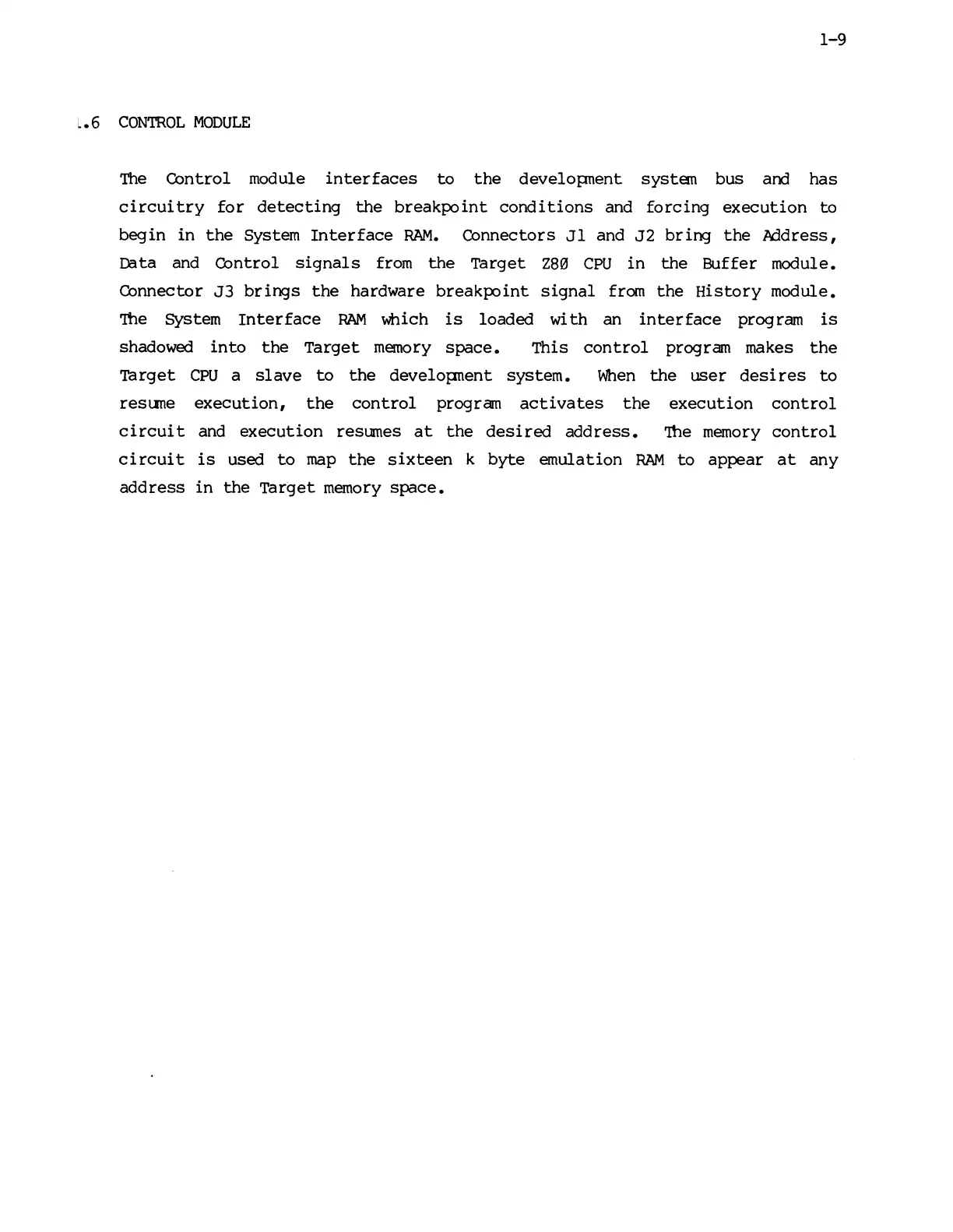

CONTROL
MODULE
The
Control
module
interfaces
to
the
development
system
bus
and
has
circuitry
for
detecting
the
breakpoint
conditions
and
forcing
execution
to
begin
in
the
System
Interface
RAM.
Connectors
Jl
and
J2
bring
the
Address,
Il:lta and
Control
signals
from
the
Target
Z80
CPU
in
the
Buffer
module.
Connector
J3
brings
the
hardware
breakpoint
signal
from
the
History
module.
The System
Interface
RAM
which
is
loaded
with
an
interface
program
is
shadowed
into
the
Target
memory
space.
This
control
program makes
the
Target
CPU
a
slave
to
the
development
system.
When
the
user
desires
to
resume
execution,
the
control
program
activates
the
execution
control
circuit
and
execution
resumes
at
the
desired
address.
'!he
memory
control
circuit
is
used
to
map
the
sixteen
k
byte
emulation
RAM
to
appear
at
any
address
in
the
Target
memory
space.
