2-2

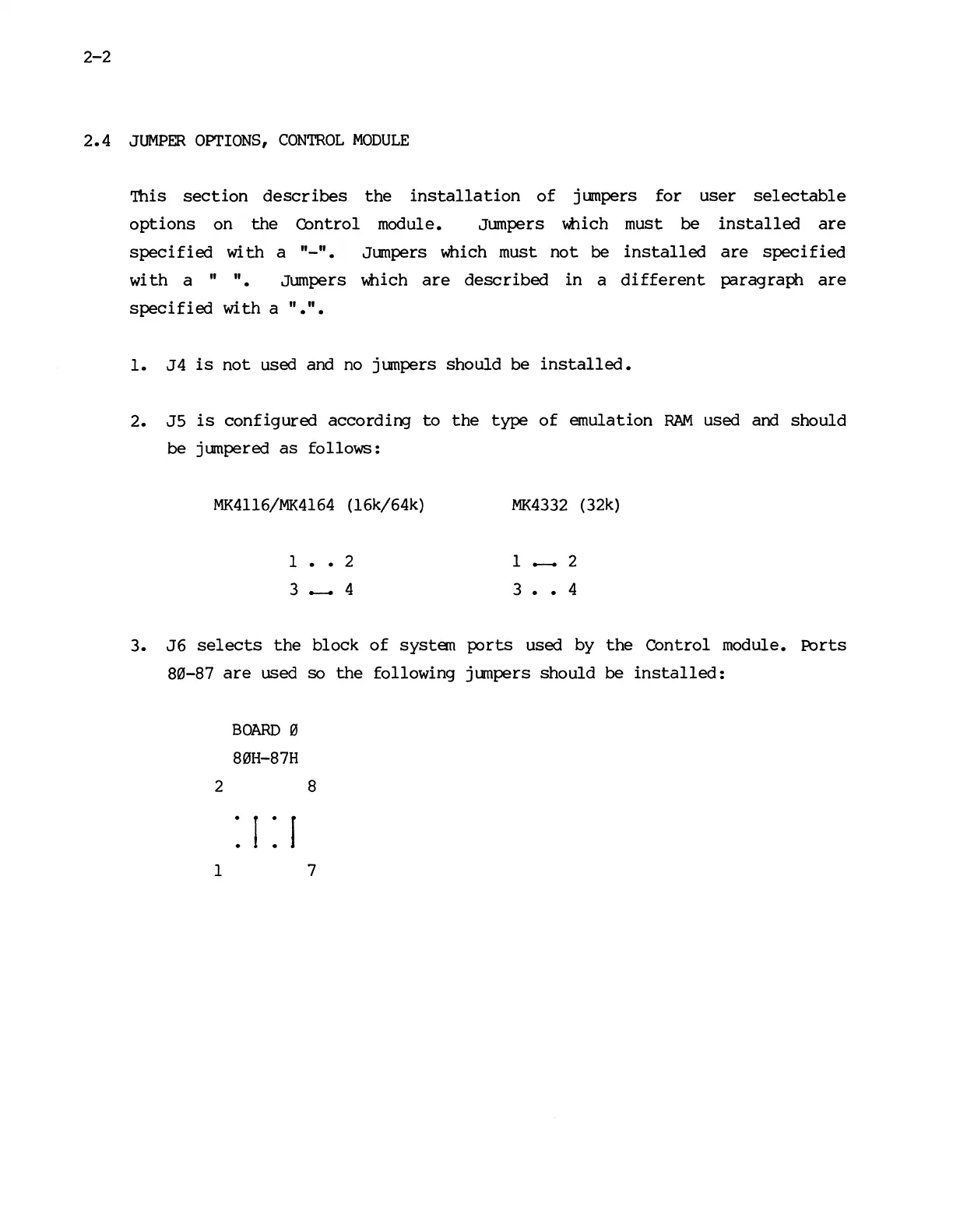

2.4 JUMPER OPI'IONS, CONTROL MODULE
'!his section describes the installation of jumpers for user selectable
options on the Oontrol module. Jumpers which must be installed are
specified with a "_" Jumpers which must not be installed are specified
wi th a II II Jumpers which are described in a different paragraph are
specified with a II II
1. J4 is not used and no jumpers should be installed.
2. J5 is configured according to the type of emulation RAM used and should
be jumpered as follows:
MK4116/MK4164 (16k/64k)
1
3
2
4
MK4332 (32k)
1
3
2
4
3. J6 selects the block of system ports used by the Control module. Ports
80-87 are used so the following jumpers should be installed:
2
1
BOARD 0
80H-87H
8
7
