52 Configuration MoTeC
• If there is more than one unacknowledged alarm, the alarm with the
highest priority (that is, the alarm that is highest on the alarm list) is
displayed.
• If there are a number of unacknowledged alarms, these will display in
priority sequence as each higher priority alarm is acknowledged.
Alarm Status Panel
Additionally an Alarm Status panel may be displayed which shows the current
state of up to 6 active acknowledged alarms. The panel is off by default and
may be turned on or off using the Alarm Acknowledge button when there are
no alarm messages displayed. If displayed, it will be obscured while there is
an unacknowledged alarm.

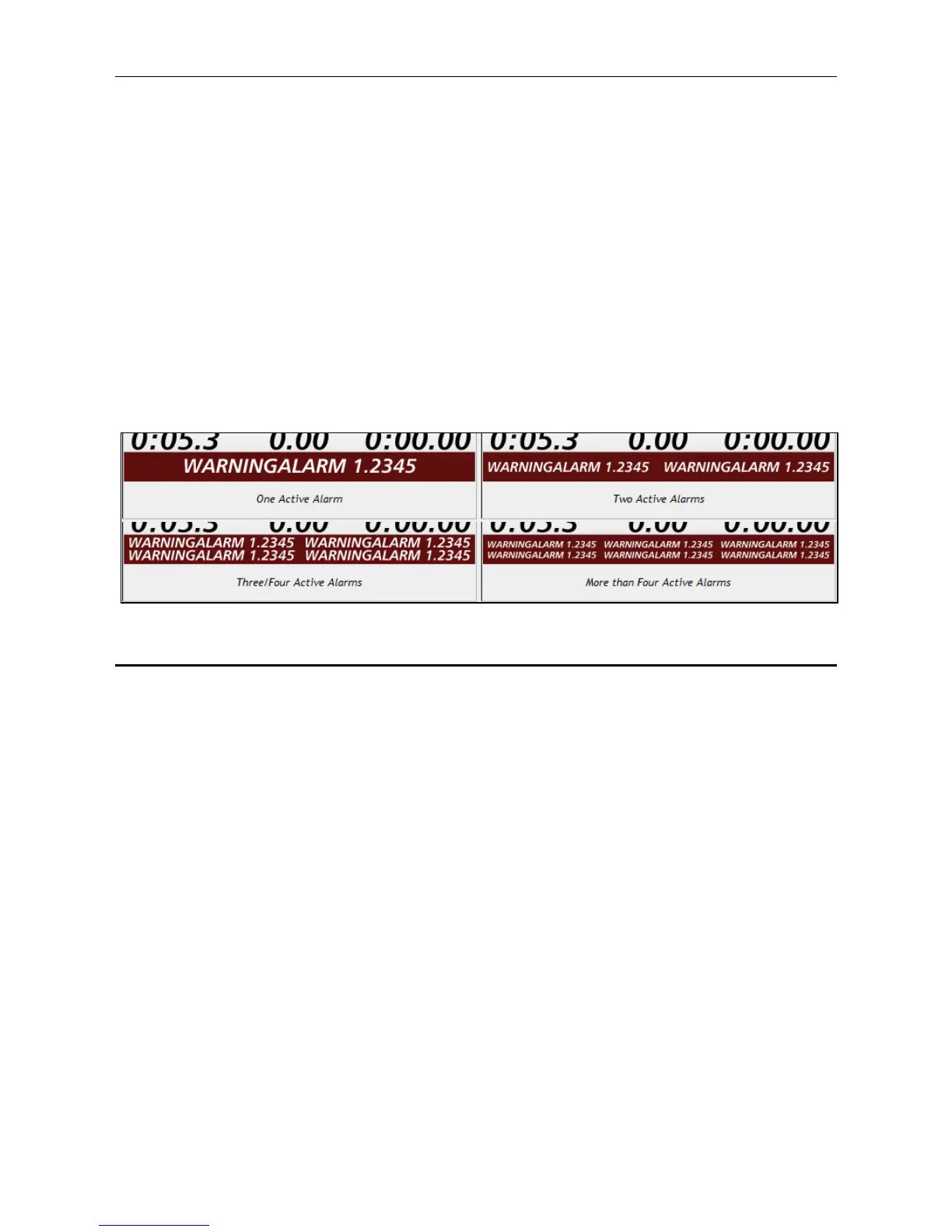

Below are four examples of the Alarm Status Panel.
Other Functions
The Display Logger can perform many other functions accessible from the
Functions menu including the following:
Shift Lights – to configure the shift point values for use with the Shift Lights.
Shift Light Module – to configure the C125 10 stage shift lights as well as an
additional MoTeC's SLM-C or SLM.
