11

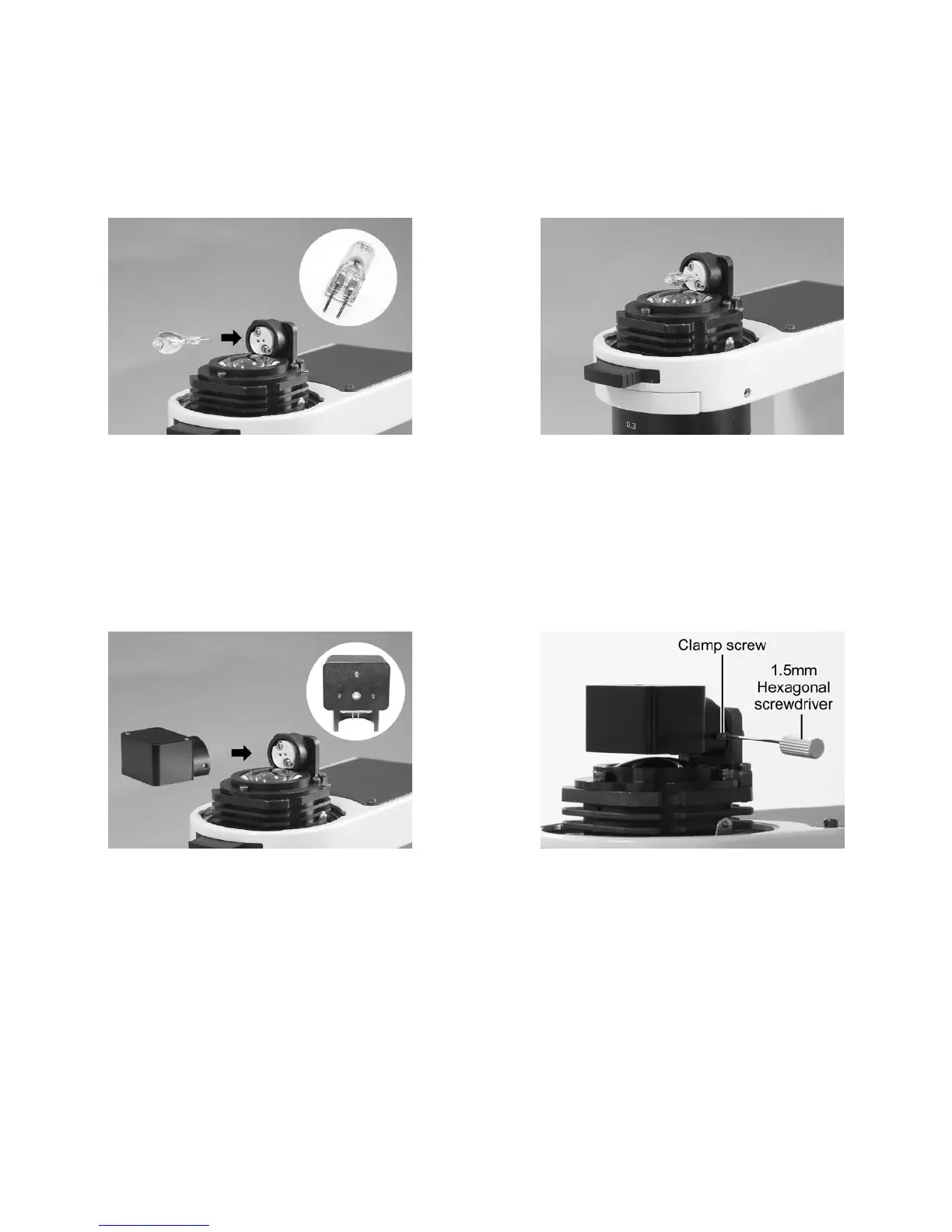

Firmly insert the bulb into the socket pinholes (Fig.4) until it reaches the limit, be careful not to tilt the
lamp when mounting. (Fig.5)
(Fig.4) (Fig.5)
(Halogen Bulb)
y When installing the halogen bulb,
be care not to touch the glass surface of the bulb with bare
fingers to avoid fingerprints, grease, etc. Surface pollution can burn the bulb and reduce the
illumination provided by bulb.
If surface is contaminated, wipe it clean using lens tissue or soft cotton.
(Fig.6) (Fig.7)
(LED module)
y Firmly insert the LED module into the socket pinholes until it reaches the limit. This is Motic patent
design to exchange LED module and halogen bulb on the same socket directly.
y After the LED module installation (Fig.6), secure it with the clamp screw by 1.5mm hexagonal
screwdriver supplied with the microscope. (Fig.7)
y Return lamphouse cover to original position and rotate clockwise to lock into place. The white paint
marked on the cover should face the user. (Fig.8)
