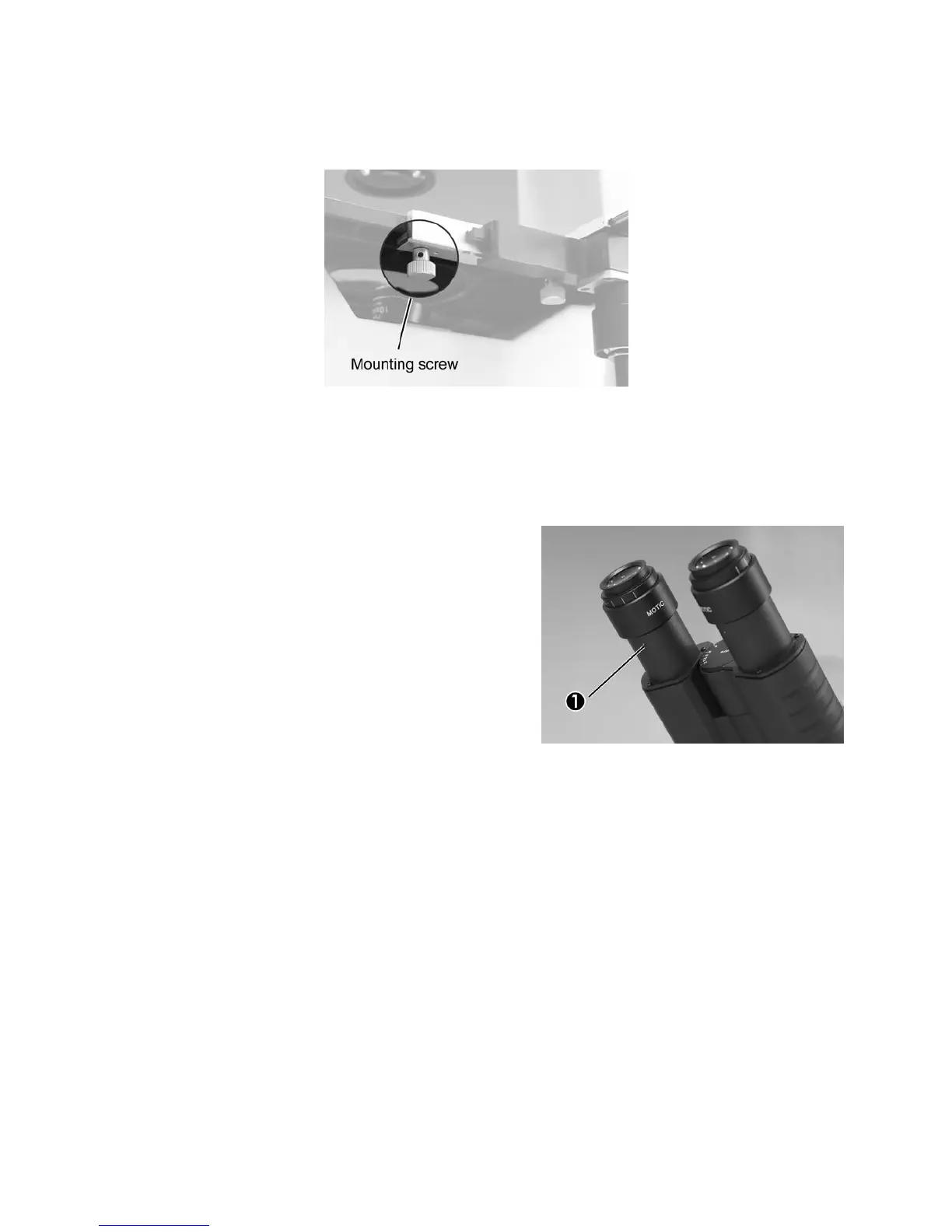

(Fig.16)
y The specimen can be moved to the desired position by turning the X-axis knob and Y-axis knob.
6. Mounting the Eyepieces
y Remove the dust caps from the eyepiece tubes.
y Use the same magnification eyepieces for both
the eyes.
y Insert each eyepiece into the eyepiece sleeve,
and tighten the clamp screws. (Fig.17)
y Should the rubber eye guards are to be used,
fit them in the groove around the eyepiece.
1. Clamp screws (Fig.17)
