Motic AE2000 - 4. Installing the Objectives; 5. Mechanical Stage

13
2. Filter Holder

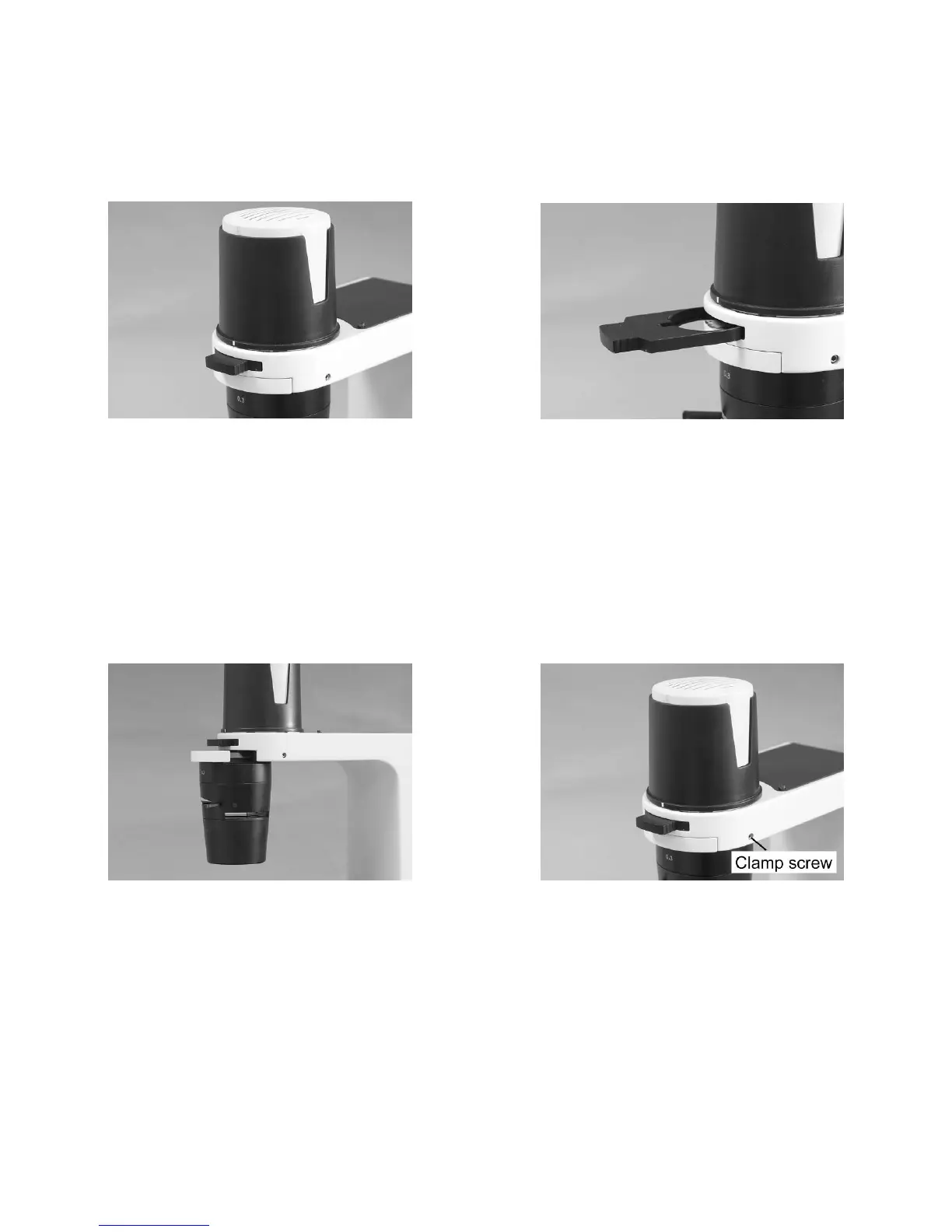

(Fig.9) (Fig.10)
y Filter holder is located under the lamphouse (Fig.9) for easy replacement of the filter. (Fig.10)
3. Mounting the Condenser
y Mount the condenser on the dovetail mount of the condenser holder (Fig.11) with the aperture
diaphragm lever and index marks facing the front and secure it with the clamp screw by 2.5mm
hexagonal screwdriver supplied with the microscope. (Fig.12)
(Fig.11) (Fig.12)
