3.3 Selecting Primary vs. Auxiliary Configuration
The Hardware Configuration must be set to compliment the other mobile used in the Multi-Radio
system. There can only be one “Primary Radio” and one “Auxiliary Radio” in each dual-radio system;
therefore, one radio must have the Hardware Configuration codeplug field set to “Primary Radio”
and the other radio must have the Hardware Configuration codeplug field set to “Auxiliary Radio”
(Figure 3-3).

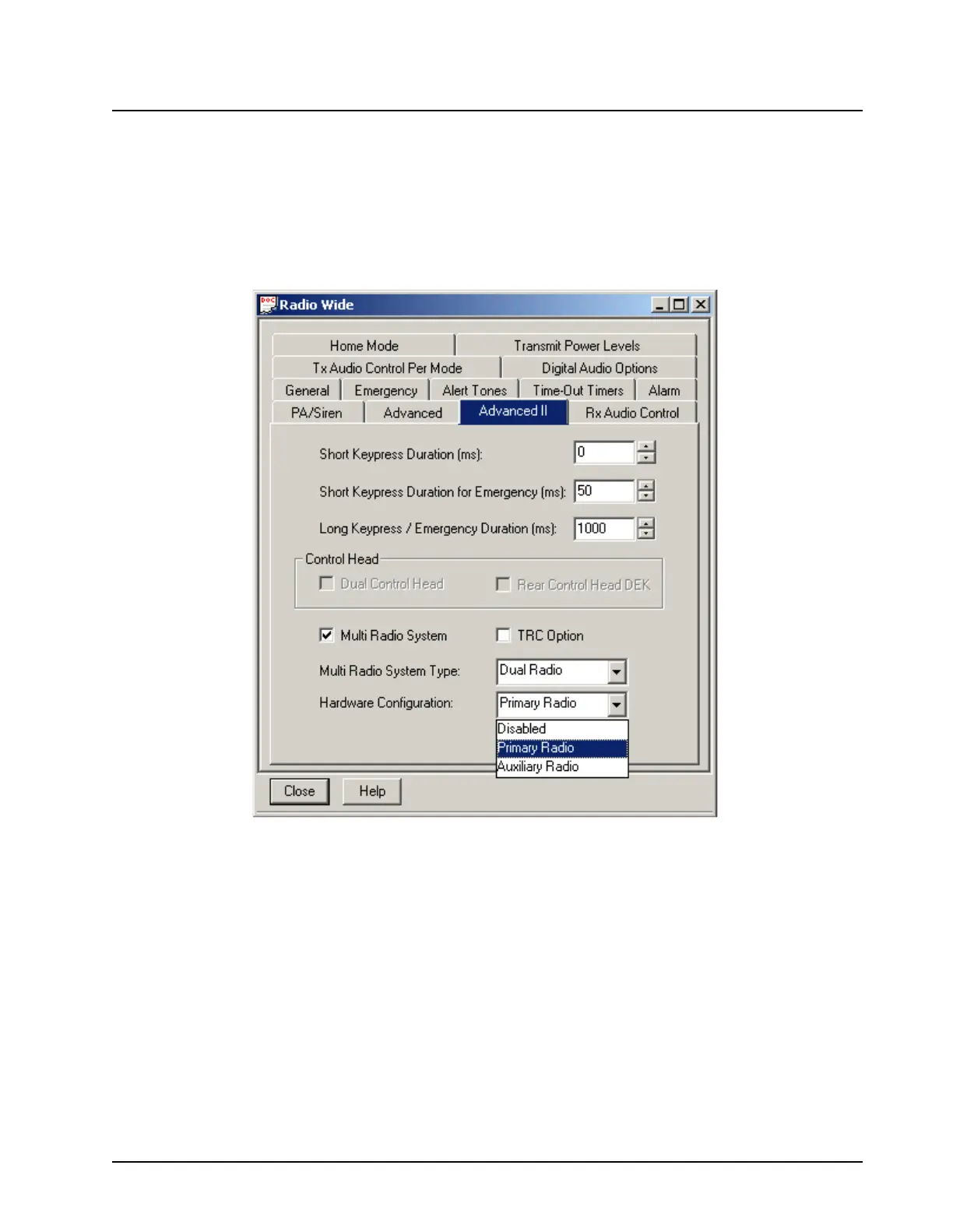

Figure 3-3. Radio Wide Advanced II Screen—Hardware Configuration Field
