6815851H01-O June 3, 2005
Options and Accessories Installation: Accessory Connector Assembly Details (P2) 3-5

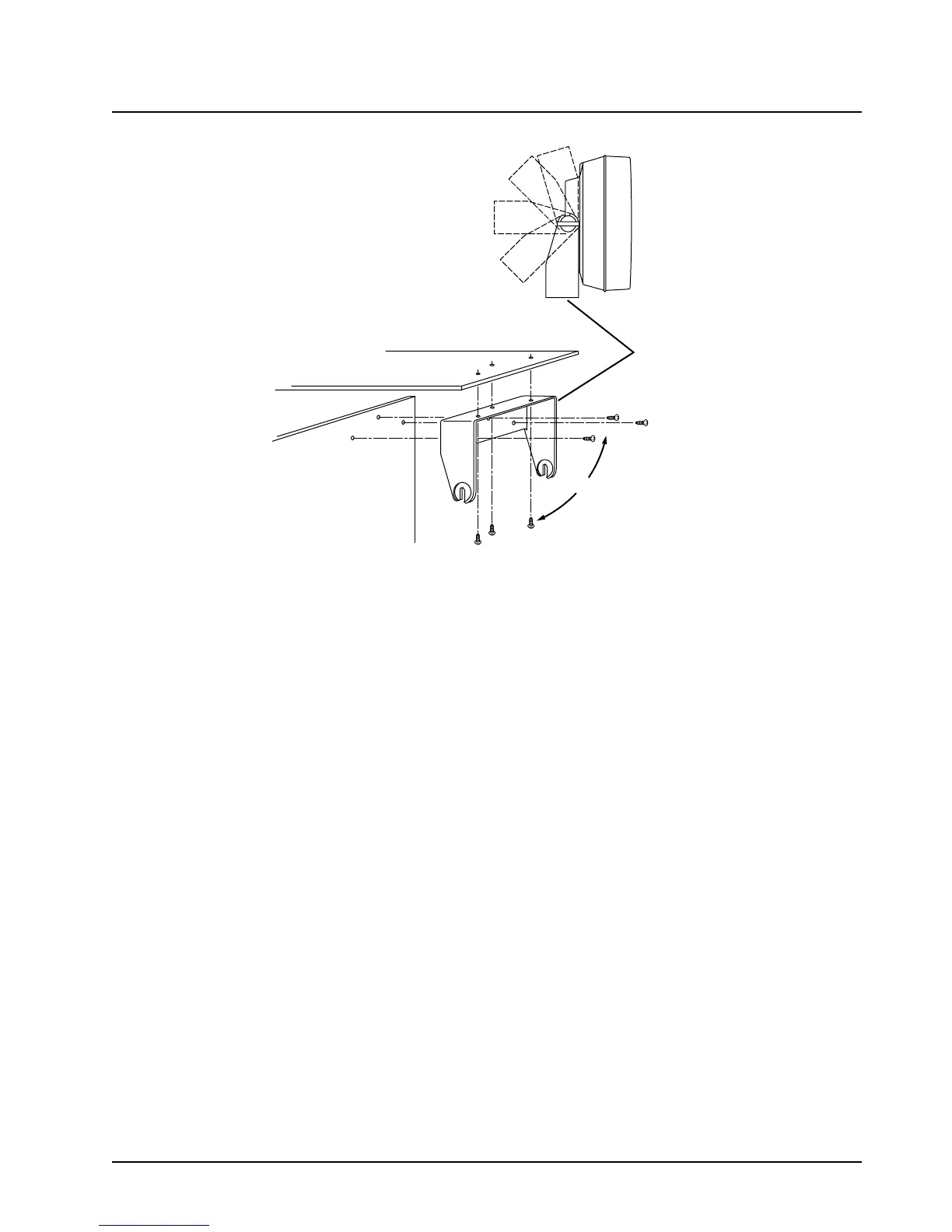

Figure 3-4. Speaker Mounting
3.3 Accessory Connector Assembly Details (P2)
The XTL 1500 accessory connector assembly is mounted on the right rear of the radio, opposite the
antenna and adjacent to the power connector. It is fastened to the radio via jackscrews and held
together by the two cover screws. It is a multi-functional connector that allows for many different
types of adaptations. All approved accessory wires are securely strain-relieved through the exiting
slots at the back of the accessory connector assembly. The terminations that are supplied with all
accessories are designed to be fully engaged and locked into the plug connector (P/N 6680163F01).
They can also be detached for service with the assistance of a terminal removal tool. The accessory
connector assembly can be serviced multiple times for future installation upgrades.
The accessory connector assembly, supplied with every XTL 1500 dash-mounted radio, is equipped
with a 26-pin plug assembly, two covers, two jackscrews, two cover screws, one emergency jumper,
one ignition sense cable assembly, and one speaker pigtail. The jumper is provided to complete the
circuit for emergency mode. If this circuit becomes open, the radio will be set to emergency mode.
Dashboard
Firewall
Trunnion
Bracket
OR
MAEPF-25764-O
