Symbologies 11 - 71

Composite

Composite CC-C

Parameter # F0h 55h

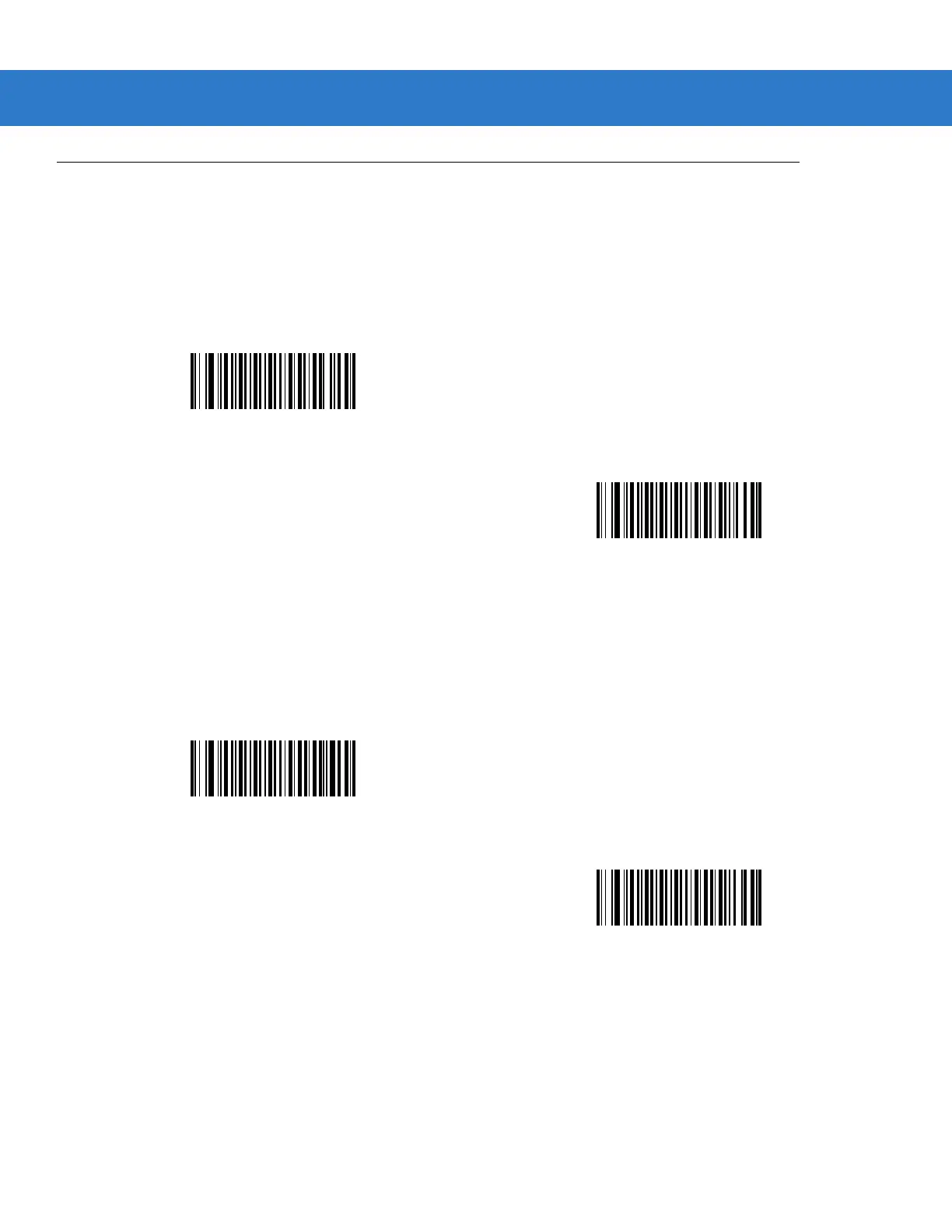

Scan a bar code below to enable or disable Composite bar codes of type CC-C.

Composite CC-A/B

Parameter # F0h 56h

Scan a bar code below to enable or disable Composite bar codes of type CC-A/B.

Enable CC-C

(01h)

*Disable CC-C

(00h)

Enable CC-A/B

(01h)

*Disable CC-A/B

(00h)
