6 - 14 MAINTENANCE
5. Snap the back housing into the Enhanced Control Head front housing in the orientation shown
below.

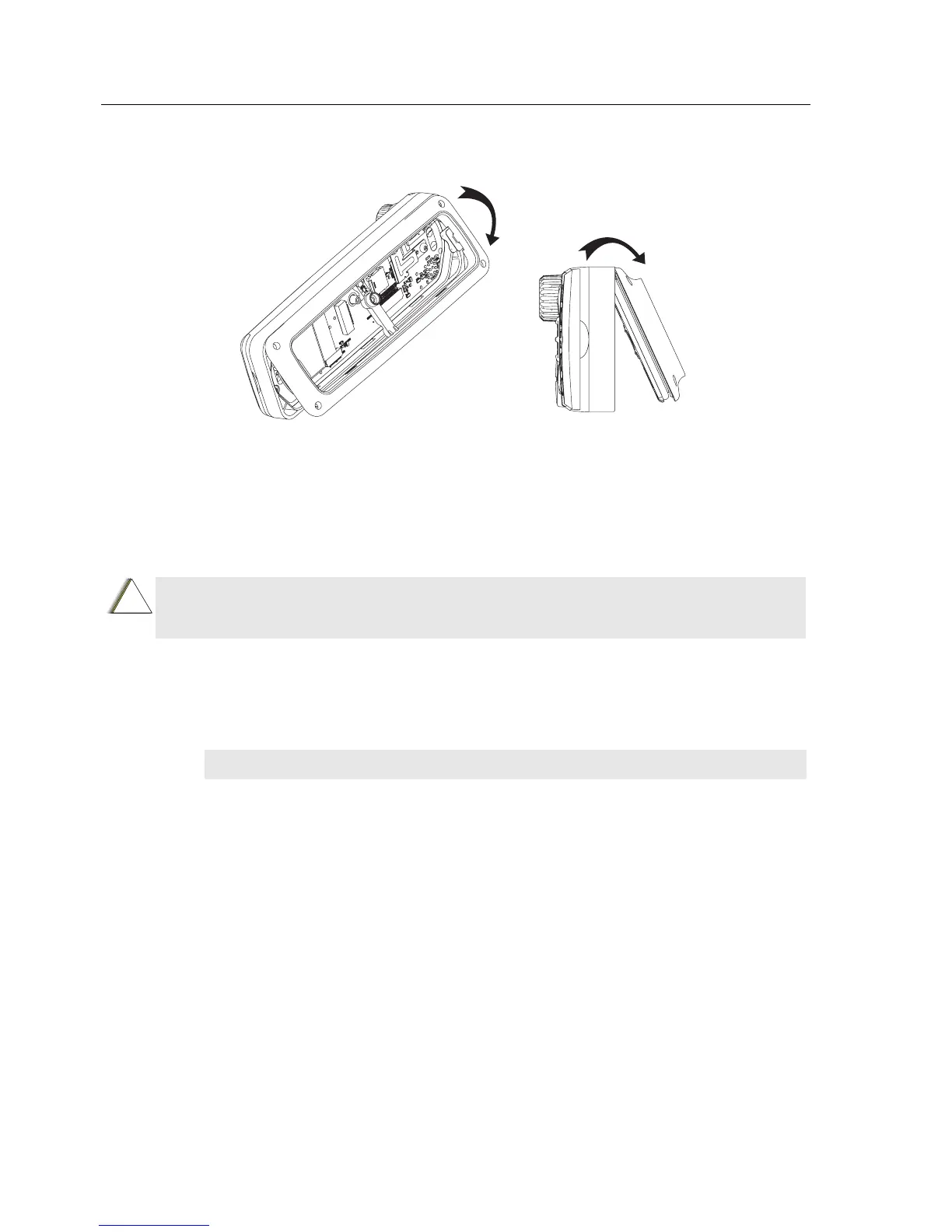

Figure 6-9 Reassemble Enhanced Control Head Housing
6. Screw the middle screw to the back housing.
Remote Head Enhanced – Disassembly
To Disassemble the Remote Head Enhanced from the Terminal:
1. Remove the Remote Head Enhanced (PMLN4904_) from the Transceiver by inserting the
dismantling tool (Motorola part number 6686119B01) in the recess between the Remote Head
Enhanced and the Transceiver.
2. Remove the flex.
CAUTION: The terminal must be disconnected from the power supply before commencing
any disassembly. The Installation Manual should be referred to for more detailed information
on warnings and safety.
NOTE:
To minimize cosmetic damage disassemble from the bottom side (label side).
ZWG0130214-O
!
