MAINTENANCE 6 - 27
Remote Mount Enhanced Control Head – Exploded View and Parts List

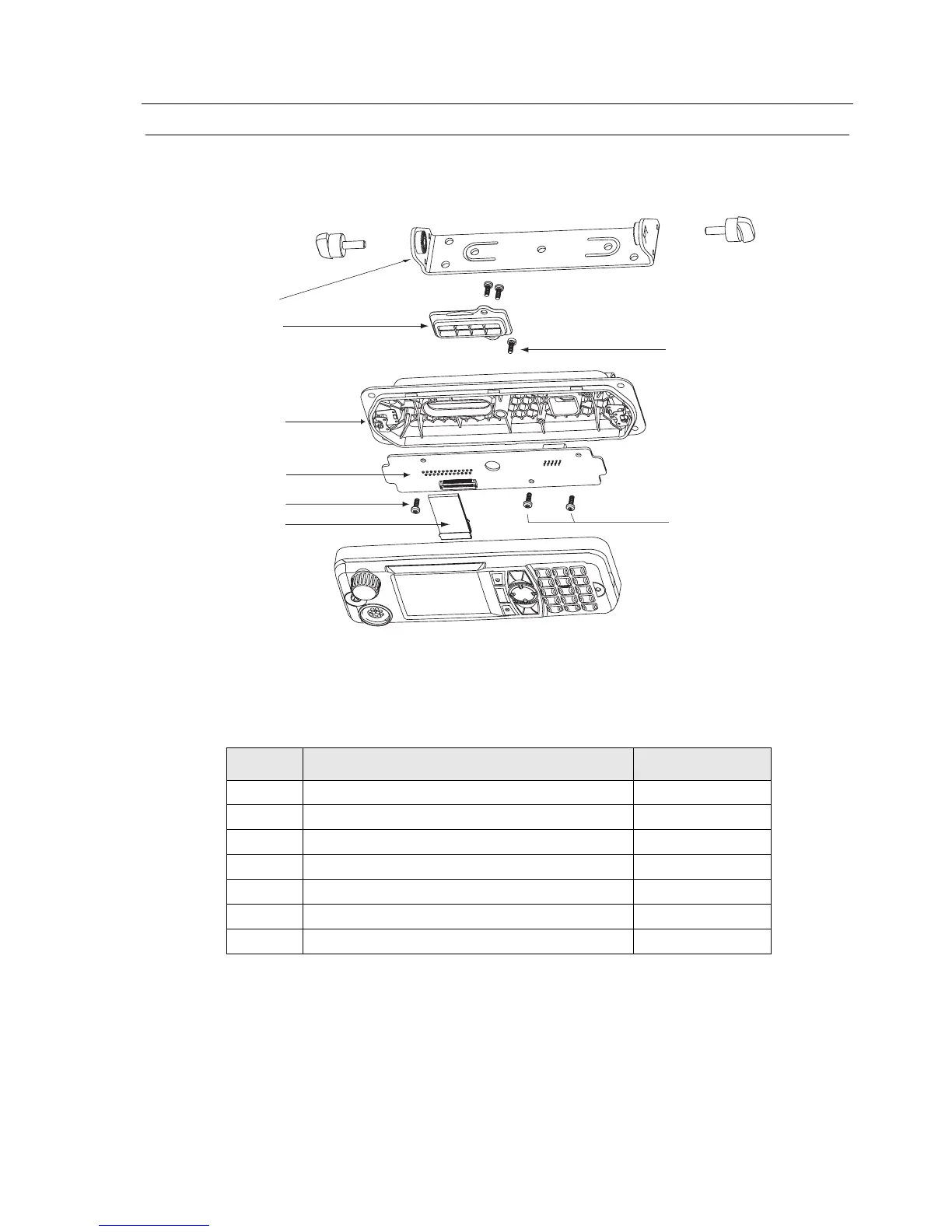

Figure 6-19 Remote Mount Enhanced Control Head – Exploded View
Table 6-9 Remote Mount Enhanced Control Head – Parts List
Item No. Description Part No.
1 Remote FFC (Main to Remote) 8471921L01
2 Remote PWA Kit 0166501N45
3 Remote Back Housing Assembly 0104025J30
4 D Sub Cover 1571012L01
5 Trunnion 0716933H01
6 Middle Screw 0371912L01
7 Self Tapping Screw 0316961H01
1
2
3
4
5
6
7
7
