Motorola MT512M Basic Service Manual

MAINTENANCE 6 - 25

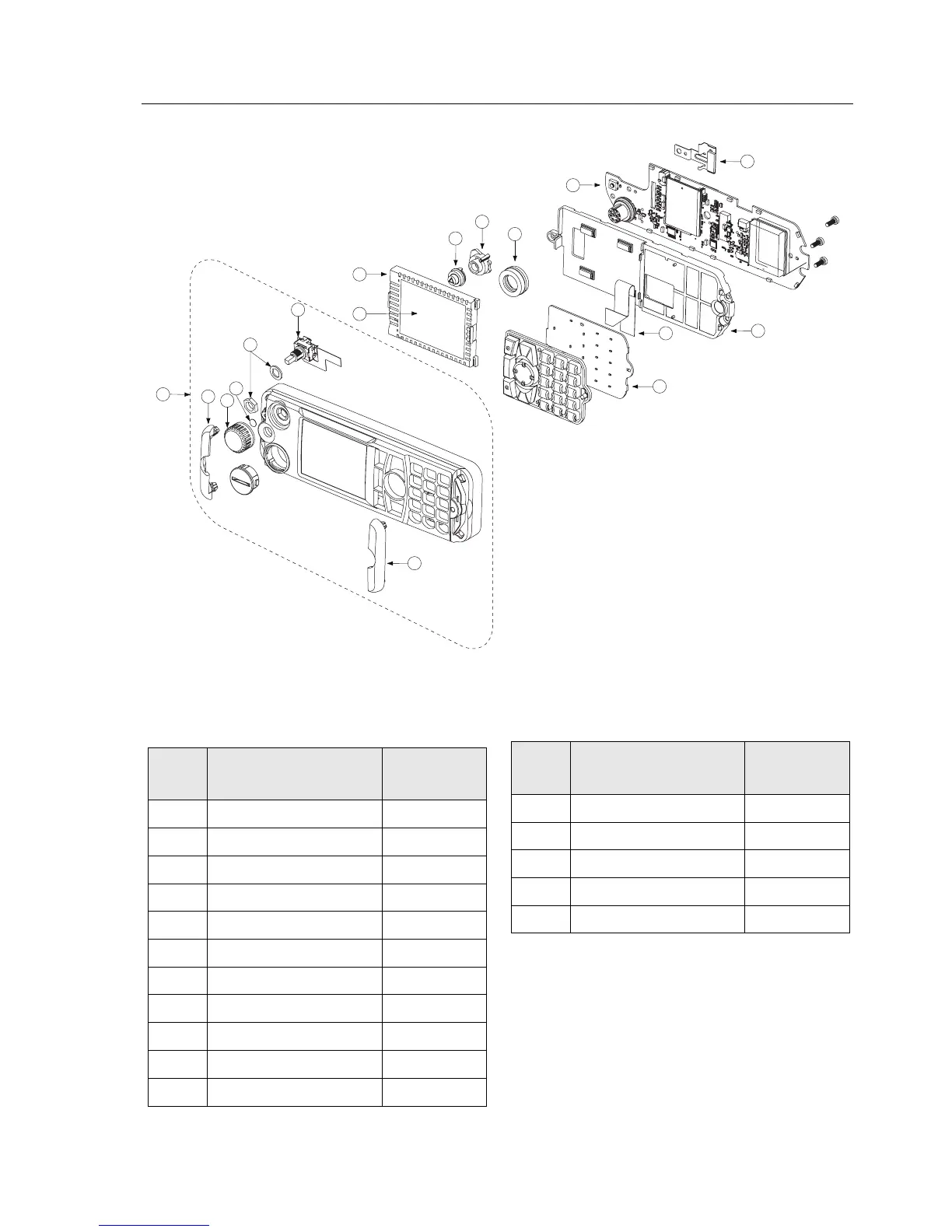

Figure 6-17 Enhanced Control Head – Exploded View 2
Table 6-7 Enhanced Control Head
– Parts List 2
ZWG0130201-O
3
4
5
2
8
7
9
10
10
11
11
12
12
13
13
15
15
16
16
2
14
14
6
1
Item
No
Description Part No
1 Front Housing Assembly 0104022J38
2 Side Cap 3816950H01
3 Encoder Knob 3616898H01
4 Gore Port 3205472M02
5 Encoder Nut and Seal PMLN5123_
6 Encoder Assembly 0104025J36
7 LCD Module 7271138D01
8 LCD Rubber Jacket 7516954H01
9 Emergency Key 3816953H01
10 Emergency Key Frame 0716944H01
11 GCAI Seal 3264133H01
12 Main PWA Kit PMLN5226_
13 LCD Metal Retainer 4216900H01
14 Chassis 2716937H01
15 Keypad FFC 8471919L01
16 Keypad PWA Kit 0166501N35
Item
No
Description Part No
